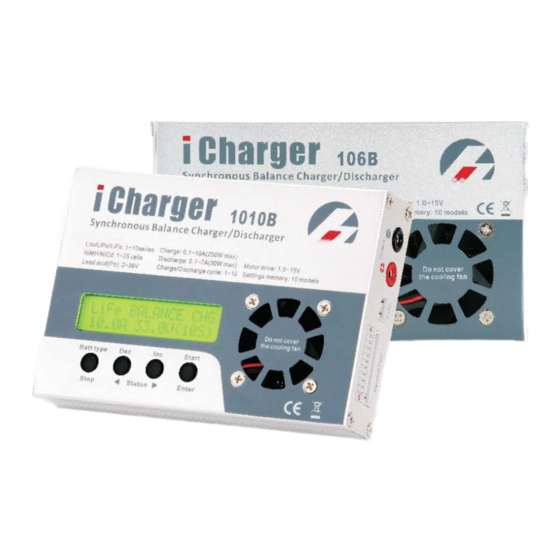

iCharger 1010B User Manual

Synchronous balance charger/discharger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1010B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iCharger 1010B

Summary of Contents for iCharger 1010B

  • Page 2: Icharger Synchronous Balance Charger/Discharger

    DC source. The iCharger series can be used with three types of Lithium batteries - LiPo, Lilo, LiFe - and has a fully integrated cell balancer.

  • Page 3: Unpack Inspection

    Synchronous Balance Charger/Discharger 1010B/106B Unpack inspection The following items are included in the package. Contact your supplier if any items are missing. Standard items ： ： ： ： One copy of the User’s manual One pair of output alligator clip leads One pair of input alligator clips (30A) and input leads with 4mm bullet connectors One temperature sensor lead (0 –...

  • Page 4: Warnings And Safety Notes

    Synchronous Balance Charger/Discharger 1010B/106B Warnings and Safety notes Keep the charger away from children and pets at all times. Never leave the charger unsupervised when charging or discharging. If you leave, disconnect the battery to prevent any unexpected dangers or damage.

  • Page 5: Program Flow Chart

    X X % C o o l i n g f a n X X X X Note: When you turn off the iCharger it will remember the current menu and start from that menu when next turned on again.

  • Page 6: Keyboard Basics

    Vo 8.23V Ext25 Vo 8.23V Ext25 Output Input Int. Ext. Volt. Volt. Temp. Temp. (second screen on 1010B only) Inc / Dec Individual cell voltage from the balance port. 1:4.11 4.12 1:4.11 4.12 1:4.11 4.12 1:4.11 4.12 ---- ---- ----...

  • Page 7: Parameter Setup

    Types:LiFe (3.3V), Lilo (3.6 V) or LiPo (3.7V). (LiPo (3.7V), default) iCharger checks the cell count of Lithium batteries automatically at the beginning of the charge or discharge process in order to detect and avoid...
  • Page 8 Key confirmation and alert tone. If the keyboard sound is ON there will be a Key Beep Key Beep ON ON ON ON beep when you press any key. If the buzzer is ON the iCharger will Key Beep Key Beep generate an alert tone for certain events.

  • Page 9: Lithium Battery Program

    The user must check the Li Type in the User setup program before connecting a lithium battery. The iCharger provides a number of Lithium programs including Balance, Normal, Fast and Storage. Only the Balance mode requires the balance lead connected. However, the other modes will provide additional per-cell over-voltage protection if the balance lead is connected compared to running them without it, where they can only utilize the total pack voltage.
  • Page 10 This function is for balancing the voltage of Lithium-polymer battery cells while charging. In the balance mode the battery balance lead must be connected to the balance port on the right side of the iCharger. The pinout of the balance port is shown in the diagram below. Charging in this mode is different from the normal CHARGE mode because the iCharger can monitor the voltage of individual cells and adjust the input current fed into each cell to normalize the voltage (for example: LiPo battery within 4.2V).

  • Page 11: Charging A Lithium Battery In Normal Charge Mode

    The iCharger first charges with constant current (CC) according to the user setting then constant voltage (CV) when the charging voltage reaches the peak point. In the CV phase the current gradually falls. The iCharger will terminate charging when the current falls below than 1/10 of the configured charge current.

  • Page 12: "Storage" Charge/Discharge A Lithium Battery

    The lowest allowable cell voltage depends on the type of Lithium battery: 2.50V for Lilo, 3.00V for LiPo and 2.00V for LiFe per cell. If the battery is connected to the balance port, the iCharger can monitor the individual cell voltages. The discharge will stop immediately if any cell falls below the configured final voltage.

  • Page 13: Lithium Battery In Monitoring Mode

    Lithium battery in monitoring mode When you use other devices to charge or discharge Lithium pack, the iCharger can monitor each cell’s voltage, battery temperature, charge time and so on, if one of the batteries appears over-charged, over-discharged, over-hot, over-capacity or over-time ,the iCharger will alarm with noise “Di…..” and blink the raleted information.

  • Page 14: Pre-Charging A Lithium Battery

    If the battery is over-discharged and the voltage is too low then in the Normal charge or Fast charge modes the iCharger will notify the user of pre-charging with a low current (100mA). This helps to increase the battery voltage to the within the allowable range for normal charging. The user can set the pre-charging time in the Lithium Check time screen in the User setup.

  • Page 15: Discharging A Nicd/Nimh Battery

    NiCd/NiMH battery program Charging a NiCd/NiHM battery The left side of the first line displays the type of battery (NiCd/NiHM) and the second line allows you to set the current limit. The iCharger offers two NiMH CHARGE Aut NiMH CHARGE Aut...

  • Page 16: Pb(Lead-Acid) Battery Program

    Synchronous Balance Charger/Discharger 1010B/106B Pb(lead-acid) battery program This program is for charging Pb (lead-acid) batteries with nominal voltages from 2 to 36V. Lead-acid, VRLA or Gel batteries are totally different from NiCd or NiMH. They can only deliver relatively lower current compared to their capacity and charging can only be done at relatively low rates compared to other chemistries.

  • Page 17: Electric Motor Drive

    You can easily break-in new brushed electric motors using a variable voltage and running time. Note that the iCharger cannot directly drive brushless DC motors and that brushless motors do require or benefit from a breaking-in process. With this function you also check the motor performance to optimize your power-train.

  • Page 18: Data Save/Load Program

    1010B/106B Data save/load program The iCharger has a storage and load program for your convenience. This feature can store up to 10 battery datasets by number. Each dataset represent the individuals settings for a particular set of batteries. Datasets can be reloaded for charging or discharging to save having to re-enter all the parameter values again by hand.
  • Page 19 Synchronous Balance Charger/Discharger 1010B/106B Warning and error information REVERSE POLARITY REVERSE POLARITY The output is connected to a battery with incorrect polarity REVERSE POLARITY REVERSE POLARITY CHECK CHECK CHECK CHECK This will be displayed when an interruption of the connection between...
  • Page 20 Synchronous Balance Charger/Discharger 1010B/106B Maximum charge/discharge rates When the battery voltage is more than 20V (106B: 18V), the actual charge current delivered to the battery will automatically be limited so as not to exceed the charger’s rated charging power of 200W (106B: 180W).
  • Page 21 Synchronous Balance Charger/Discharger 1010B/106B Charge current (A) Discharge current (A) Battery type Cell count Rated voltage (V) 1010B / 106B 1010B / 106B 1.20 10 / 10 7 / 7 2.40 10 / 10 7 / 7 3.60 10 / 10 7 / 5.6...

  • Page 22: Limited Warranty

    1010B/106B Limited warranty iCharger are guaranteed to be free from defects in material and workmanship for a period of one calendar year from data of purchase. Your selling dealer is your first point of contact for warranty issues. Return postage costs are the responsibility of the user in all cases. Submit copy of original receipt with the return.

This manual is also suitable for:

106b
