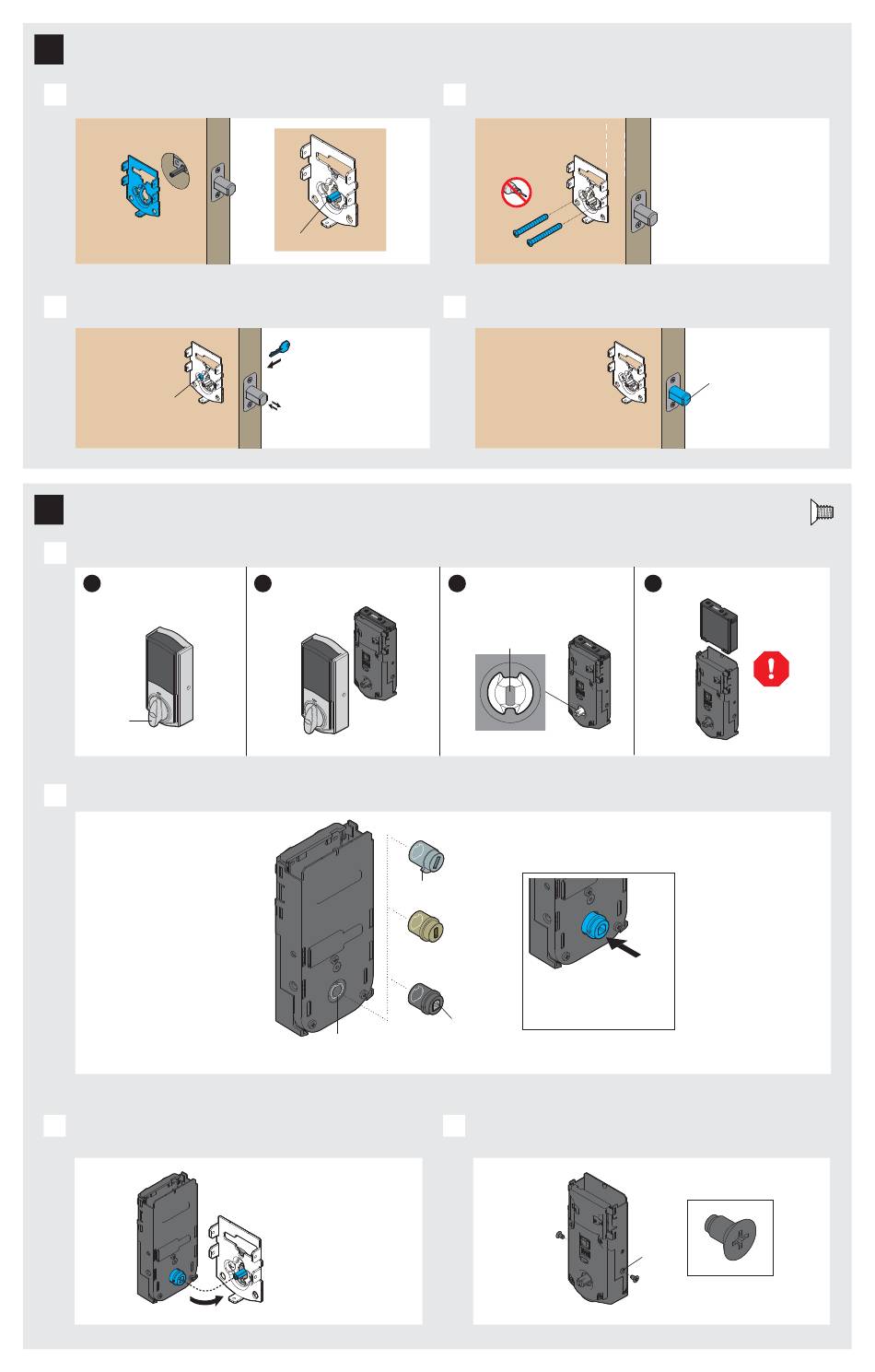

Install the mounting plate and test your latch
A
Place the mounting plate on the door so that the torque
blade inserts through the center hole.
Note: A D-shaped torque blade is shown, but installation is the same for all models.
C
Remove the masking tape from the exterior deadbolt, and insert
your key and test the latch for smooth operation.
If the latch does not
extend or retract
smoothly, adjust the
mounting screws.
4
Install the interior assembly
A
Remove the interior cover and battery pack.
a
Make sure the
turnpiece is in the
vertical position.
vertical
B
Install the adapter on the interior assembly.
C
Align the adapter with the torque blade and push the interior assembly
onto the mounting plate.
Kwikset Technical Support: 1-866-863-6584 • www.kwikset.com
torque blade
b
Remove the
interior cover.
back view
of interior
assembly
align tabs
Schlage Deadbolts Only:
You may need to rotate
the adapter to align with
the torque blade.
B
Secure the mounting plate with the mounting screws.
Keep parallel to the
edge of the door.
Tighten
screws evenly.
D
Remove your key and make sure the bolt is fully extended.
c
Make sure shaft is oriented
as shown. If needed, rotate
the shaft to this position.
Stripe should
be vertical.
Silver adapter:
Tab is on bottom.
Gold adapter:
Keep slot vertical.
Press adapter firmly onto
the interior assembly.
Black adapter:
Curve is on top.
D
Secure with two (2) interior assembly screws.
2 / 4
Kwikset & Weiser Only:
To determine which mounting
screws to use, test one of
the thicker screws first.
If the thicker screw fits, continue
installing the thicker screws.
If the thicker screw doesn't fit,
install the thinner screws.
fully
extended
actual
size
d
Remove the battery pack.
Do not
install
batteries
yet.
bottom
hole
