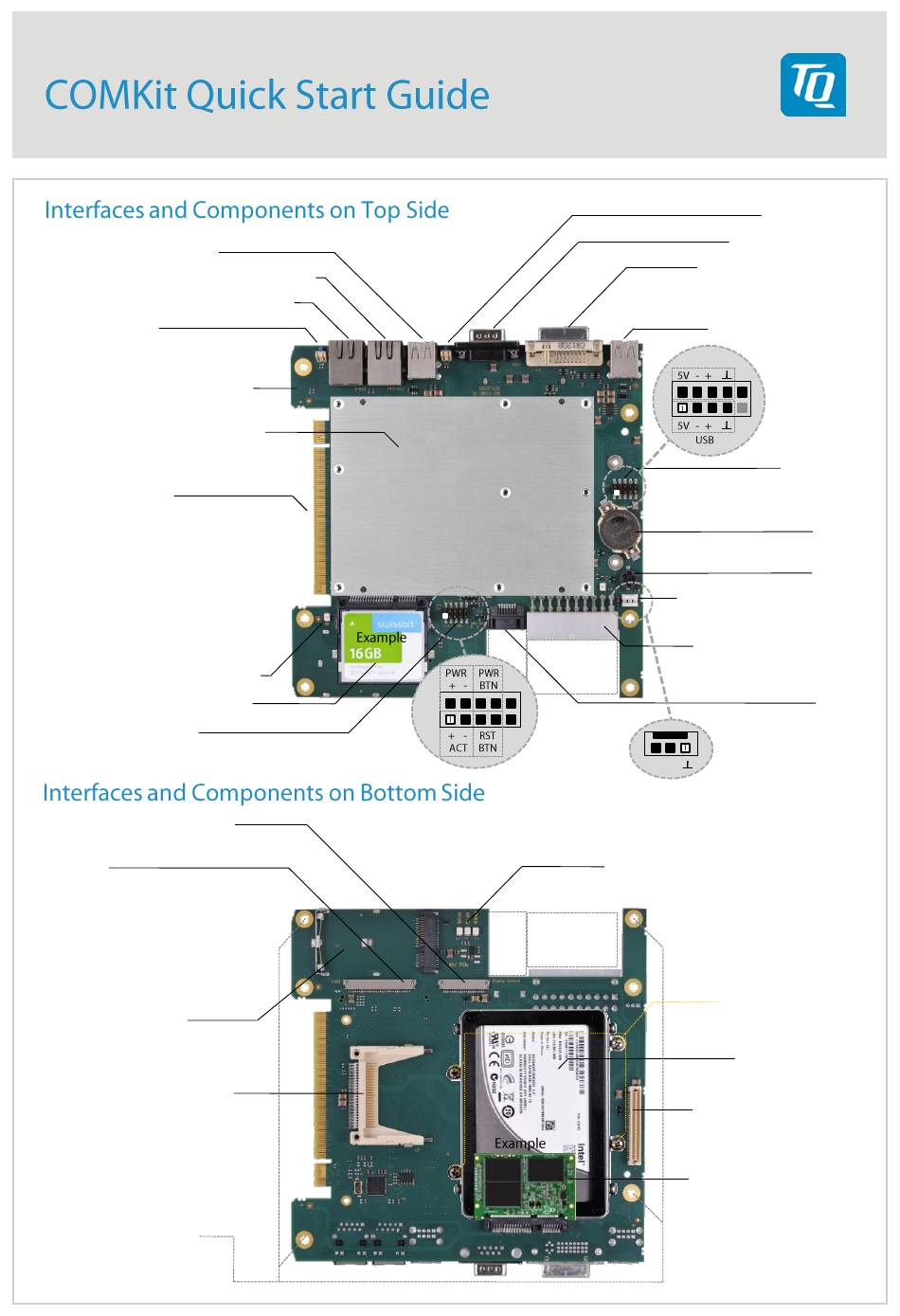

TQ COMSys COMKit Quick Start Manual

2x USB 2.0 (Type A)
Gigabit Ethernet (from baseboard)
Gigabit Ethernet (from module)
Reset Button
COM Express baseboard
COM Express CPU Module
equipped with
DDR2 / DDR3 memory & cooling solution
Riser-Interface
(up to 2x PCIe x1 & 4x PCI)*
* for Kits with Intel Atom N270
and Intel Atom N2600/N2800/D2550
up to 1x PCIe x1 & 4x PCI
Note:
Use optional Riser-Adapter for
connecting standard PCI or
PCIe x1 add-on cards
Mass Memory Activity LED
CFast Flash Card socket CFast Flash Card socket
System connector
(2.54 mm pitch)
HMI / Display Control
(USB 2.0, COM, Backlight control & supply)
LVDS
(Single/Dual Channel 18/24 bit)*
*
for Kits with Intel Atom N270
only 18 bit (no 24 bit) supported
Mini PCIe socket
(PCIe & USB, no mSATA support)
CompactFlash socket
Mounting Positions
for Mini ITX Chassis
(Hole Diameter: 4.2 mm)
* with AMD CPUs and Intel Atom
N2600/N2800/D2550 only analog
USB Flash Disk (2.54 mm pitch)
CR2032, socket version, plus on top
(1 = GND, 2 = +12V, 3 = Tacho In)
Power
Supply or
O
Connector
N
TI 12V
Status LEDs for Mini PCIe socket
Power
Supply or
Connector
(directly mounted without cable)
Power Button
RS-232 (Sub-D9)
DVI-I (digital*&analog)
2x USB 2.0 (Type A)
USB*
* shared with
IO Extension
Interface
2x USB 2.0
Support for standard cable and
Battery
Buzzer
FAN
(temperature controlled)
ATX Power connector
(20-pin, main power on 12V)
SATA*
* not supported on Kits
with Intel Atom N270
and Intel Atom
N2600/N2800/D2550
Note:
For 2,5" HDD / SSD mounting
use accessory COMSet-HDD
which is included in the kit
Mounting Positions
for 2,5" HDD or SSD
2,5" HDD or SSD
I/O Extension Interface
(USB 2.0, 1x PCIe x1, LPC,
HDA, I2C, 3.3V & 5V & 12V)
Slim SATA (MO-297A)
(alternatively to 2,5" HDD/SSD)
