- Page 1 USB 2.0 Isolator Industrial-Grade USB-029H2 User’s Manual Ver. 1.0 HuMANDATA LTD.
-
Page 3: Table Of Contents
6. FG Terminal ....................... 5 7. Specifications ..................... 6 7.1. Product Specification ...................6 7.2. AC adapter(Japan's specifications) ..............7 7.3. Optional Accessories ....................8 8. Additional Documentation and User Support ............. 9 9. Attachment Documentations ................9 10. Warranty and Compensation ................9 USB-029H2 (Ver.1.0) -
Page 5: Precautions
Attention Item 7 notwithstanding, HuMANDATA cannot be held liable for the consequences arising from use of this product. HuMANDATA cannot be held liable for consequences arising from using this product in a way different from the uses described herein, or from uses not shown herein. -
Page 6: Revision History
Initial release Introduction Thank you very much for purchasing our product. USB-029H2 is a USB 2.0 High Speed(480Mbps), Full Speed(12Mbps) and Low Speed(1.5Mbps) compliant isolator that isolates between a USB host and a USB peripheral device. USB-029H2 (Ver.1.0) -
Page 7: Overview

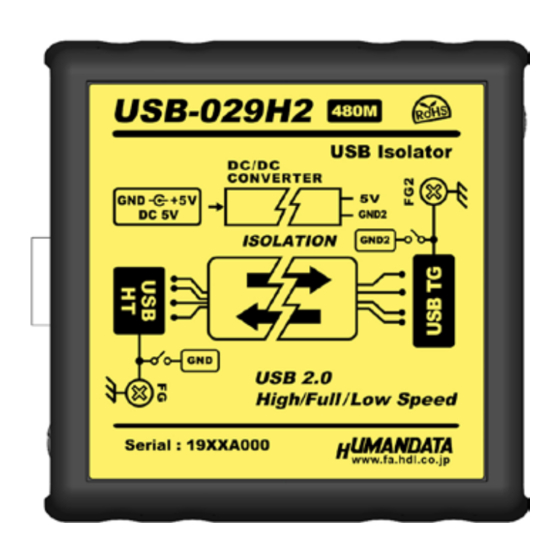

1. Overview USB Host side SG/FG Separation Power Input Switch (Positive Tip) USB Connector FG Terminal Power LED (Host) USB Target side Power LED SG/FG Separation (Target) Switch USB Connector FG Terminal (Target) USB-029H2 (Ver.1.0) -
Page 8: Feature
Speed(1.5Mbps) compliant isolator that between a USB host and a USB peripheral device are isolated. With USB-029H2, it can be expected to eliminate ground loops that can cause measurement errors and equipment from surges, common-mode voltage, static discharge, magnetic fields, and radio frequency interference. -
Page 9: Connection
USB peripheral device to the target side connector. 4. Power Supply USB-029H2 is powered through a USB port(Bus-powered) or an AC adapter (Self-powered). An AC adapter has priority when both supplies are applied. 5. SG/FG Separation switch You can separate between SG(signal ground) and FG(frame ground) by the dip-switch each USB host and USB target. -
Page 10: Specifications
Humidity No condensation permitted Storage Ambient -20 to 60 °C Temperature Storage Ambient 30 to 85%RH Humidity Weight Approx. 90 [g] Only main body 67 x 67 x 28 [mm] Dimensions Without projections (2.638" x 2.638" x 1.102") USB-029H2 (Ver.1.0) -
Page 11: Ac Adapter(Japan's Specifications)
10 to 95 % RH Humidity Wire Length 1.6m Weight approx. 70 [g] 46 x 34 x 25 [mm] Dimensions Without projections 1.811" x 1.339" x 0.984" * There may be cases that this part and specifications are changed. USB-029H2 (Ver.1.0) -
Page 12: Optional Accessories
7.3. Optional Accessories Model Image Description USB series Attachment with clamping screw PEN-003 JAN：4937920800709 USB series Attachment for 35mm DIN rail PEN-003-DIN JAN：4937920800716 USB series Attachment with neodymium magnet PEN-003-MG JAN：4937920801201 USB-029H2 (Ver.1.0) -
Page 13: Additional Documentation And User Support
The following documents and other supports are available at http://www.hdl.co.jp/en/faspc/USB/usb-029h2 User’s Manual … and more. 9. Attachment Documentations Outline drawing of the USB-029H2 Outline drawing of the AC Adapter 10. Warranty and Compensation Please refer to the following URL for the warranty. - Page 14 USB 2.0 Isolator Industrial-Grade USB-029H2 User’s Manual Ver. 1.0 ........... May. 31, 2016 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: http://www.fa.hdl.co.jp (Japan) http://www.fa.hdl.co.jp/en(Global)
