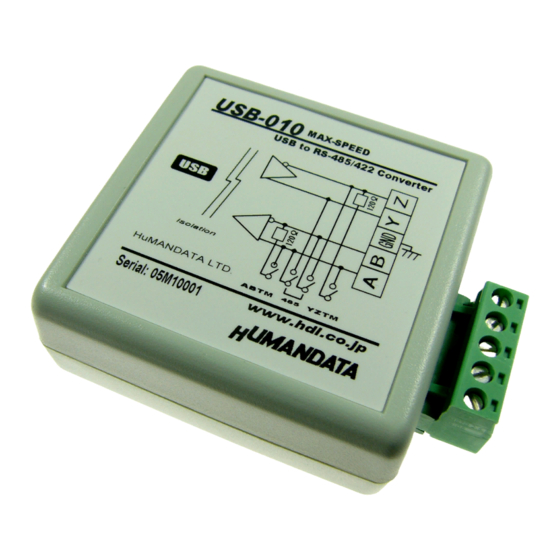

USB to RS-485/422 Converter
USB-010
(Rev3)
User's Manual
Ver. 1.0
HuMANDATA LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB-010 and is the answer not in the manual?

Questions and answers

Related Manuals for Humandata USB-010

Summary of Contents for Humandata USB-010

  • Page 1 USB to RS-485/422 Converter USB-010 (Rev3) User’s Manual Ver. 1.0 HuMANDATA LTD.

  • Page 2: Table Of Contents

    Table of Contents Revision History ......................1  Introduction ........................ 1  1. Overview ........................1 1.1. Power Supply ......................2 1.2. Block Diagram ......................2 2. Function ......................... 2 3. Specifications ......................... 3 3.1. Optional Accessories ....................4 3.2. RS-485/422 (4 wire) Mode ..................5 3.3.
  • Page 3 Attention Item 7 notwithstanding, HuMANDATA cannot be held liable for the consequences arising from use of this product. HuMANDATA cannot be held liable for consequences arising from using this product in a way different from the uses described herein, or from uses not shown herein.

  • Page 4: Revision History

     Introduction Thank you very much for purchasing our product of USB-010. USB-010 is a USB to RS-485/RS422 converter that is isolated between RS-485/422 and USB port. So it’s safe for use in factory automation environment. It supports high speed data communication up to 12Mbps.

  • Page 5: Power Supply

    1.1. Power Supply USB-010 is powered through a USB port (Bus-powered). No external power supply is required. 1.2. Block Diagram Between USB and RS-485/422 are isolated. 2. Function The driver IC on USB-010 supports both RS-485 and RS-422. By setting the dip switch, you can switch 2/4-wire mode of RS-485/RS-422. You can also enable and disable built-in terminal resistors and echo cancelling function by setting this dip switch.

  • Page 6: Specifications

    * There is a case to be changed to the parts of the compatibility * Power saving function (suspend, standby, sleep and others) is not supported * USB serial conversion chip on this product does not support speed range over 8 to less than 12 Mbps. USB-010 (Rev3) v1.0...

  • Page 7: Optional Accessories

    USB series Attachment with clamping screw PEN-003 JAN：4937920800709 USB series Attachment for 35mm DIN rail PEN-003-DIN JAN：4937920800716 USB series Attachment with neodymium magnet PEN-003-MG JAN：4937920801201 5P Terminal to RJ45 Convert Adapter ACC-005 JAN：4937920800730 Detachable 5P Terminal Connector : 1757048 (Phoenix) TB-USB-5 JAN：4937920800747 USB-010 (Rev3) v1.0...

  • Page 8: Rs-485/422 (4 Wire) Mode

    Transmit-Receive Automatically controlled control by RTS or DTR signal is Switching by USB controller also available (deprecated) Available by setting switch Echo Cancellation (SW2) RS-485 mode can communicate with multiple terminals by using a twist pair cable. USB-010 (Rev3) v1.0...

  • Page 9: Interface Terminal

    4. Interface Terminal Terminal block is pluggable. Do not remove it while the power is supplied. Pin Number Signal Signal and Polarity The GND(Ground) pin is recommended to be wired. USB-010 (Rev3) v1.0...

  • Page 10: Setting Switch

    By setting SW1 and SW2, you can configure operating mode, echo cancelling function and built-in terminal resistors. 5.1. RS-485/422 (4 wire) Factory Setting 4 wire * Please refer to Section 5.3 No termination Transmit Side termination Receive Side termination Both Sides termination USB-010 (Rev3) v1.0...

  • Page 11: Rs-485 (2 Wire)

     Disable Echo Cancelling function (echo enable) 2 wire 5.3. Setting Switch (SW2) Function SW2-1 DE ( transmit enable) Control Always Enable Enable in Transmission SW2-2 Echo Control Echo Cancelling Enable (no echo) Echo Cancelling Disable (echo enable) USB-010 (Rev3) v1.0...

  • Page 12: Latency Timer

    7. Additional Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/faspc/USB/usb-010 Device Driver  Outline Drawing  … and more. 8. Warranty and Compensation Please refer to the following URL for the warranty. http://www.fa.hdl.co.jp/en/fa-warranty.html USB-010 (Rev3) v1.0...
  • Page 13 USB to RS-485/422 Converter USB-010 Rev3 User’s Manual Ver. 1.0 ..........Aug. 30, 2016 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: http://www.fa.hdl.co.jp/en/ (Global) http://www.fa.hdl.co.jp/jp/ (Japan)
