Summary of Contents for Humandata USB-03G1
- Page 1 USB3.0/3.1 Gen1 Isolator USB-03G1 User’s Manual Ver. 1.1 HuMANDATA LTD.
-
Page 2: Table Of Contents
5. SG/FG Separation Switch ................... 6 6. FG Terminal ....................... 6 7. Specifications ..................... 7 7.1. Product Specification ...................7 7.2. AC adapter (Japan's specifications) ..............8 7.3. Optional Accessories ....................8 8. Additional Documentation and User Support ............. 9 9. Warranty and Compensation................9 USB-03G1 v1.1... -
Page 3: Precautions
Attention Item 7 notwithstanding, HuMANDATA cannot be held liable for the consequences arising from use of this product. HuMANDATA cannot be held liable for consequences arising from using this product in a way different from the uses described herein, or from uses not shown herein. -
Page 4: Revision History
ADD: Section " Feature " Introduction Thank you very much for purchasing our product, USB-03G1. USB-03G1 is a USB3.0/3.1 Gen1 isolator that supports Super Speed, 5Gbps, and isolates between a USB host and a USB peripheral device. USB-03G1 v1.1... -
Page 5: Overview

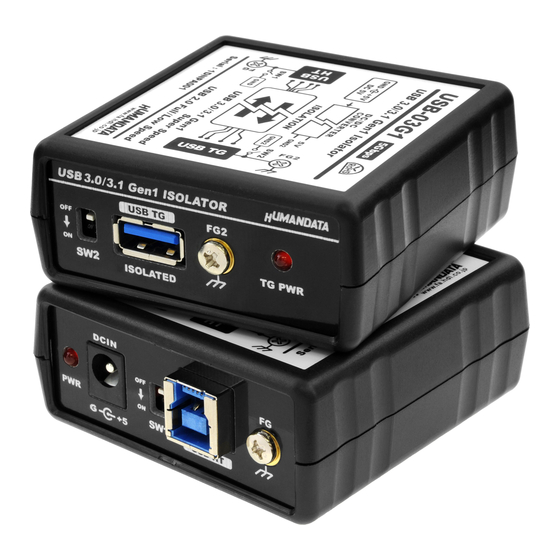

1. Overview 1.1. Name of Parts Power Input (Positive Tip) USB Connector (HOST) Power LED SG/FG Separation FG Terminal (Power Input) Switch Host Side USB Connector (Target) FG2 Terminal SG/FG Separation Switch Power LED (Target) Target Side USB-03G1 v1.1... -
Page 6: Feature
TOP side (Block diagram) 2. Feature USB-03G1 is an adapter, USB isolator, which isolates USB interface. It supports USB3.0/3.1 Gen1 Super Speed (5Gbps), USB2.0 Full Speed (12Mbps) and Low Speed (1.5Mbps). When you use Low Speed, internal setting needs to be changed. -
Page 7: Connection
USB peripheral device to the target side connector. 4. Power Supply USB-03G1 is powered through a USB port (Bus-powered) or an AC adapter (Self-powered). An AC adapter has priority when both supplies are applied. Target side, USB TG, is linked with host side, USB HST. -
Page 8: Specifications
Storage Ambient permitted -20 to 60 °C (-4 to 140 °F) Temperature Storage Ambient 30 to 85%RH Humidity Weight Approx. 90 [g] Only main body 67 x 67 x 28 [mm] Dimensions Without projections (2.638" x 2.638" x 1.102") USB-03G1 v1.1... -
Page 9: Ac Adapter (Japan's Specifications)
* There may be cases that this part and specifications are changed. 7.3. Optional Accessories Model Image Description USB series Attachment with clamping screw PEN-003 JAN：4937920800709 USB series Attachment for 35mm DIN rail PEN-003-DIN JAN：4937920800716 USB series Attachment with neodymium magnet PEN-003-MG JAN：4937920801201 USB-03G1 v1.1... -
Page 10: Additional Documentation And User Support
8. Additional Documentation and User Support The following documents and other supports are available at https://www.hdl.co.jp/en/faspc/USB/usb-03g1/ User’s Manual … and more. 9. Warranty and Compensation Please refer to the following URL for the warranty. https://www.fa.hdl.co.jp/en/fa-warranty.html USB-03G1 v1.1... - Page 11 USB3.0/3.1 Gen1 Isolator USB-03G1 series User’s Manual Ver. 1.1 .......... May 29, 2019 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: https://www.fa.hdl.co.jp/en/ (Global) https://www.fa.hdl.co.jp/ (Japan)
