8 Channel RS232C/USB Converter
(Common Isolation Type)
USB-401
User's Manual
Ver. 1.0
HuMANDATA LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB-401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Humandata USB-401

Summary of Contents for Humandata USB-401

  • Page 1 8 Channel RS232C/USB Converter (Common Isolation Type) USB-401 User’s Manual Ver. 1.0 HuMANDATA LTD.

  • Page 3: Table Of Contents

    3. Block Diagram ....................... 4 4. Specifications ......................5 4.1. AC adapter (Japan's specifications) ..............6 4.2. Optional Accessories ..................6 5. RS232C Pin Assignment ..................7 6. Additional Documentation and User Support ............7 7. Warranty and Compensation ................7 USB-401 (Ver.1.0)

  • Page 5: Precautions

    Attention Item 7 notwithstanding, HuMANDATA cannot be held liable for the consequences arising from use of this product. HuMANDATA cannot be held liable for consequences arising from using this product in a way different from the uses described herein, or from uses not shown herein.

  • Page 6: Revision History

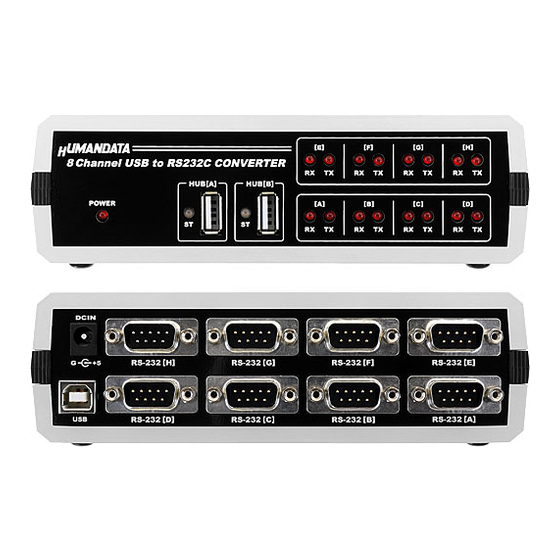

     Introduction Thank you very much for purchasing our product of USB-401. USB-401 is an 8 channel USB to RS-232C converter that isolated between each RS-232C channel and 2 USB ports. Also, the 2 port USB connectors have a HUB function.
