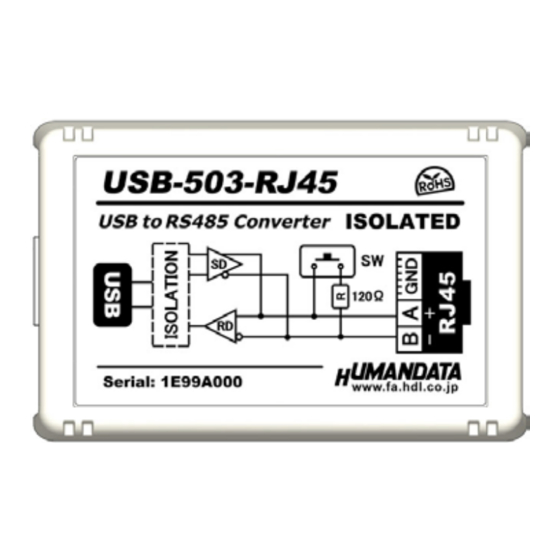

- Page 1 USB to RS485 Converter (RJ45 type) USB-503-RJ45 User’s Manual Ver. 1.0 HuMANDATA LTD.
-
Page 2: Table Of Contents
3.2. RS-485 (2 wire) Mode ...................6 4. Device Driver ..................... 6 5. RJ45 connector ....................7 6. Setting Switch ....................8 7. Latency Timer ....................8 8. Additional Documentation and User Support ............. 9 9. Warranty and Compensation................9 USB-503-RJ45 (Ver.1.0) -
Page 3: Precautions
Attention Item 7 notwithstanding, HuMANDATA cannot be held liable for the consequences arising from use of this product. HuMANDATA cannot be held liable for consequences arising from using this product in a way different from the uses described herein, or from uses not shown herein. -
Page 4: Revision History
Introduction Thank you very much for purchasing our product of USB-503-RJ45. USB-503-RJ45 is a USB to RS-485 converter that isolated between RS-485 and a USB port. So, it’s safe for use in factory automation environment. RS485 is equipped with RJ45 connectors used for LANs, and commercially available LAN cable can be used as communication cables, so the work of wiring steps can be reduced. -
Page 5: Overview
1. Overview Front Side (USB) USB Connector Tx Status LED Rx Status LED Power LED Rear Side (RS-485) RJ45 connector Setting Switch 2. Power Supply USB-503-RJ45 is powered through a USB port (Bus-powered). No external power supply is required. USB-503-RJ45 (Ver.1.0) -
Page 6: Block Diagram
2.1. Block Diagram Between USB and RS-485 are isolated. USB-503-RJ45 (Ver.1.0) -
Page 7: Specifications
67 x 43.5 x 27 [mm] Dimensions Without projections (2.638" x 1.713" x 1.063") * There is a case to be changed to the parts of the compatibility * Power saving function (suspend, standby, sleep and others) is not supported USB-503-RJ45 (Ver.1.0) -
Page 8: Optional Accessories
The device driver and its install manual are included in the CD bundled with the product. And they are also available on its product page. Please refer to the Chapter 8. "Additional Documentation and User Support". USB-503-RJ45 (Ver.1.0) -
Page 9: Rj45 Connector
Signal ground Signal ground Signal ground LAN Twisted Pair Cable Color Codes 1-2 are a twisted pair Make sure to use 8-core cable The color codes might be different in the straight and cross cable USB-503-RJ45 (Ver.1.0) -
Page 10: Setting Switch
Following steps of Windows OS show how to set “Latency Timer”. Open “Device Manager” and right click “[USB-503…]”. Open “Properties” window and open “Port Setting” tab, then click “Advanced” button. USB-503-RJ45 (Ver.1.0) -
Page 11: Additional Documentation And User Support
8. Additional Documentation and User Support The following documents and other supports are available at https://www.hdl.co.jp/en/faspc/USB/usb-503-rj45 Device Driver Outline Drawing … and more. 9. Warranty and Compensation Please refer to the following URL for the warranty. https://www.fa.hdl.co.jp/en/fa-warranty.html USB-503-RJ45 (Ver.1.0) - Page 12 USB to RS485 Converter (RJ45 type) USB-503-RJ45 User’s Manual Ver. 1.0 ..........Jul. 30, 2020 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: https://www.fa.hdl.co.jp/en/ (Global) https://www.fa.hdl.co.jp/jp/ (Japan)
