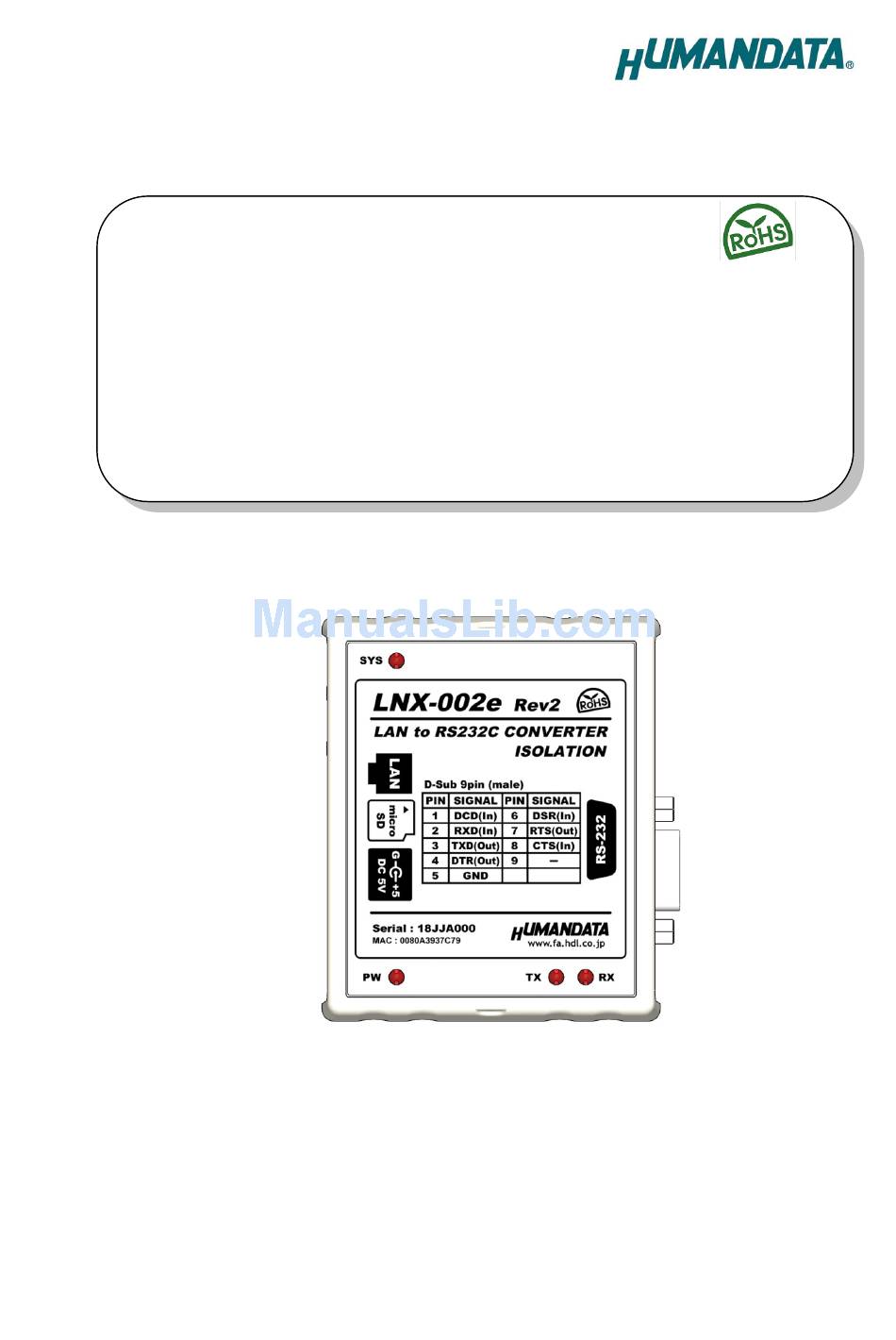

- Page 1 RS-232C LAN Converter [Economy type] LNX-002e (Rev2) User’s Manual Ver. 2.0 HuMANDATA LTD.
- Page 3 7.4. Read Setting Data ....................... 18 7.5. Write or Read setting data over the network ............. 20 7.6. Setting Example ......................21 8. Virtual COM Port ......................23 9. Additional Documentation and User Support ..............23 10. Warranty and compensation ..................23 LNX-002e (Ver.1.0)
-
Page 4: Precautions
Attention Item 7 notwithstanding, HuMANDATA cannot be held liable for the consequences arising from use of this product. HuMANDATA cannot be held liable for consequences arising from using this product in a way different from the uses described herein, or from uses not shown herein. -
Page 5: Revision History
Thank you for purchasing our product of RS-232C LAN Converter [Economy type] LNX-002e. LNX-002e is a LAN converter which makes it possible to use a RS-232C device via Ethernet local area network. LNX-002e is an economy model of LNX-002 from which only PoE function is removed. -
Page 6: Part Names And Functions
Card Slot LAN Side Power Input Active LED Link LED LEDs Name(color) Function Active LED (green) Turn on during network port communication. Turn on when LNX-002e is powered and LAN cable is LINK Link LED (yellow) connected normally. LNX-002e (Ver.2.0) - Page 7 Blink few seconds during reading process. System LED (red) Turn on when system is ready. Power LED (red) Turn on when the power is supplied to the LNX-002e. Transmission LED (red) Turn on when data are transmitted to RS-232C side. Reception LED (red) Turn on when data are received from RS-232C side.
-
Page 8: Specifications
No condensation 30 to 85 % RH Humidity permitted. Storage Ambient -20 to 60 [°C] (-4 to 140 [°F]) Except AC adapter Temperature Storage Ambient 30 to 85 % RH Humidity Weight approx. 120 [g] Only main body LNX-002e (Ver.2.0) -
Page 9: Ac Adapter
* This AC adapter is attached for use mainly in Japan. If you use in the other countries, please check the specifications above and plug shape. * There may be cases that this part and specifications are changed. LNX-002e (Ver.2.0) -
Page 10: Optional Accessories
Attachment for 35mm DIN rail PEN-003-DIN JAN：4937920800716 Attachment with neodymium magnet PEN-003-MG JAN：4937920801201 4.4. Power Supply LNX-002e requires an AC adapter for power supply. Please use the AC adapter which is included in the package. 5. RS232C Pin Assignment Pin No Name Direction Remarks... -
Page 11: Connection Examples
RS-232C devices. By using a cross cable, one to one connection is also available. [Tunneling mode between LNX-001 and LNX-002e] LNX-001 offers you to control as USB interface via a LAN. And is able to connect to a LNX-002e in tunneling mode, virtual COM port and D2XX-API by FTDI is available. -
Page 12: Setting Tool
7. Setting Tool Setting tool supports to save and read network setting by a microSD card. This tool does not require installation. This is a screenshot from version 1.9 LNX-002e (Ver.2.0) -
Page 13: Access Flow Of Microsd Card
POW LED、 TX/RX LED turn on None microSD card Detect None Setting data WR_DATA.TXT Find TX/RX LED flicker Different product types in the setting Product type data and actual product. Verify It is necessary to correct the product type by LNX setting tool. Write setting data Saving backup data of RD_DATA.TXT in the micro SD card. TX/RX LED turn off Possible to remove of the microSD card SYS LED flicker （System start up） SYS LED turn on Ready LNX-002e (Ver.2.0) -
Page 14: Function
Read or write setting data over the network. LNX product and PC Network must be connected to the same network segment. Product select Display product select window. Copy to clipboard Copy a display image to clipboard. Exit Terminate the application. LNX-002e (Ver.2.0) - Page 15 If you change the value, please avoid the following numbers. They are allocated to other function. 1-1024 Reserved for well-known ports Port number 9999 Reserved for telnet setup 14000-14009 Reserved for old redirector 30704 Reserved for remote control of user I/Os 30718 Reserved for configuration LNX-002e (Ver.2.0)
- Page 16 Enter the remote port number of tunneling target. Connection method Select connection method to the target. LNX-002e and an attached serial device must agree on the baud rate to use for the serial connection. Valid baud rates are 300, 600, Baudrate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800 or 921600.
- Page 17 After this idle gap time with no response from a serial device, data is packetized and transmitted to the target. The default setting is 12. Trigger character Select packet size and set trigger character (hexadecimal digits). Check sum Select check sum size. LNX-002e (Ver.2.0)
- Page 18 Item Contents TCP keepalive time defines how many seconds LNX-002e waits during an inactive connection before checking its status. If the unit TCP keepalive does not receive a response, it drops that connection. Enter a value between 0 and 60 seconds. 0 disables keepalive.
-
Page 19: Write Setting Data
7.3. Write Setting Data 1. Open Setting Tool for LNX series (LNX SETTING TOOL Ver*.*). Select “LNX-002/LNX-002e LAN to RS232C Converter”, and click “OK”. 3. Enter the setting such as network or serial. 4. Insert a microSD card to PC (A USB adapter is included with the product) Click “Saving data”. - Page 20 After the data is stored in the product, microSD card is not needed any more. The start-up time can be shortened if the microSD card is removed from the product. Please be careful not to detach the microSD card before TX/RX LED is turned off. LNX-002e (Ver.2.0)
-
Page 21: Read Setting Data
* If there is the same file name in the microSD card, the data will be overwritten. 3. Insert a microSD card to PC (A USB adapter is included with the product) Start the setting tool and click “Reading data”. LNX-002e (Ver.2.0) - Page 22 Click “OK” in the confirmation dialog. Open the “RD_DATA.TXT” in the microSD card. Setting data is loaded. LNX-002e (Ver.2.0)
-
Page 23: Write Or Read Setting Data Over The Network
3. Click “Read data” or “Write data” * Even if some devices will be listed in the list and occur process time out. In this case, please change the PCs’ network setting to the same network segment as the product or using microSD card. LNX-002e (Ver.2.0) -
Page 24: Setting Example
7.6. Setting Example [Tunneling mode between LNX-001 and LNX-002e] LNX-001 Side LNX-002e Side Network Setting 192.168.0.100 IP Address 192.168.0.101 255.255.255.0 Subnet Mask 255.255.255.0 0.0.0.0 Default Gateway 0.0.0.0 10005 Port Number 10005 Protocol 192.168.0.101 Remote IP Address 192.168.0.100 10005 Remote Port Number... - Page 25 [LNX-002e single operation] LNX-002e Side Network Setting IP Address 192.168.0.100 Subnet Mask 255.255.255.0 Default Gateway 0.0.0.0 Port Number 10005 Protocol Remote IP Address 0.0.0.0 Remote Port Number Serial Communication Baudrate 230400 Flow Control RTS/CTS (hard ware) Stop Bits Parity None Data Bits LNX-002e (Ver.2.0)
-
Page 26: Virtual Com Port
You can use the software that creates Virtual COM ports on your PC. You can use the COM port to communicate to an IP address of LNX-002e. Rather than going out the local port, the data is transmitted across the Ethernet network using TCP/IP. LNX-002e attached to the network receives the data and transfers it from its own serial port to the attached equipment. - Page 27 RS-232C LAN Converter [Economy type] LNX-002e (Rev2) User’s Manual Ver. 2.0 ..........Apr. 19, 2017 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: http://www.fa.hdl.co.jp (Japan) http://www.fa.hdl.co.jp/en (Global)
