Sim-P Module - ScanMeg SIM-P User Manual

ScanMeg Inc.

SIM-P module

The SIM‐P module is the controller for the Type P sensor heads. All parameter setups and
configurations are made with the SIM‐P module. The emitter and the receiver are connected directly
to the terminals on this unit. Using the display and the membrane keypad, one can view and change
setups or parameters. All of these values are kept in a flash memory. At power up, all previous
configurations are in memory and the photocell continues to work as previously programmed. A
series of LEDs indicate the state of each cell located in the receiver. This remote viewing state is useful
for troubleshooting the unit when the receiver is not mounted in an easily accessible location. The

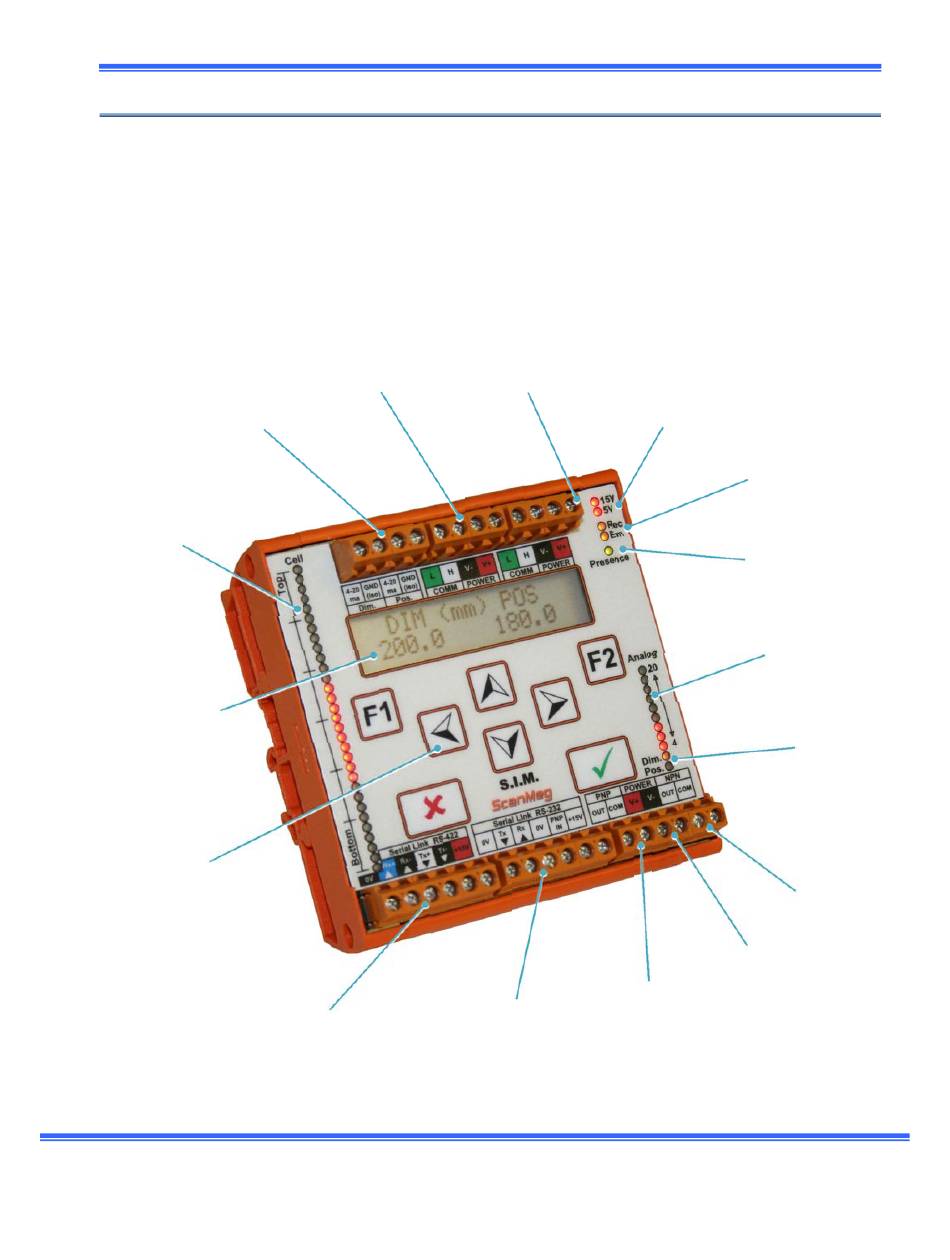

SIM‐P looks like:
Emitter or receiver
Analog output
2 x 4‐20mA
LED array
Indicates state of
each receiver cell
Alphanumeric
Display (2x16)
8 buttons
membrane
Keypad
User Manual
Emitter or receiver
Terminal
RS‐422
serial link
LED Power indicator
Terminal
NPN
RS‐232
Output
serial link
7
Module SIM‐P
Internal Supply
15 and 5 Vdc
LED indicates
Receiver and
Emitter connected
LED indicates an
object is detected
Bar graph LED
Showing analog
value
Bar graph showing
Dimension or Position
PNP
Output
Power input
(24volts)
Version 1.3
