Receiver head

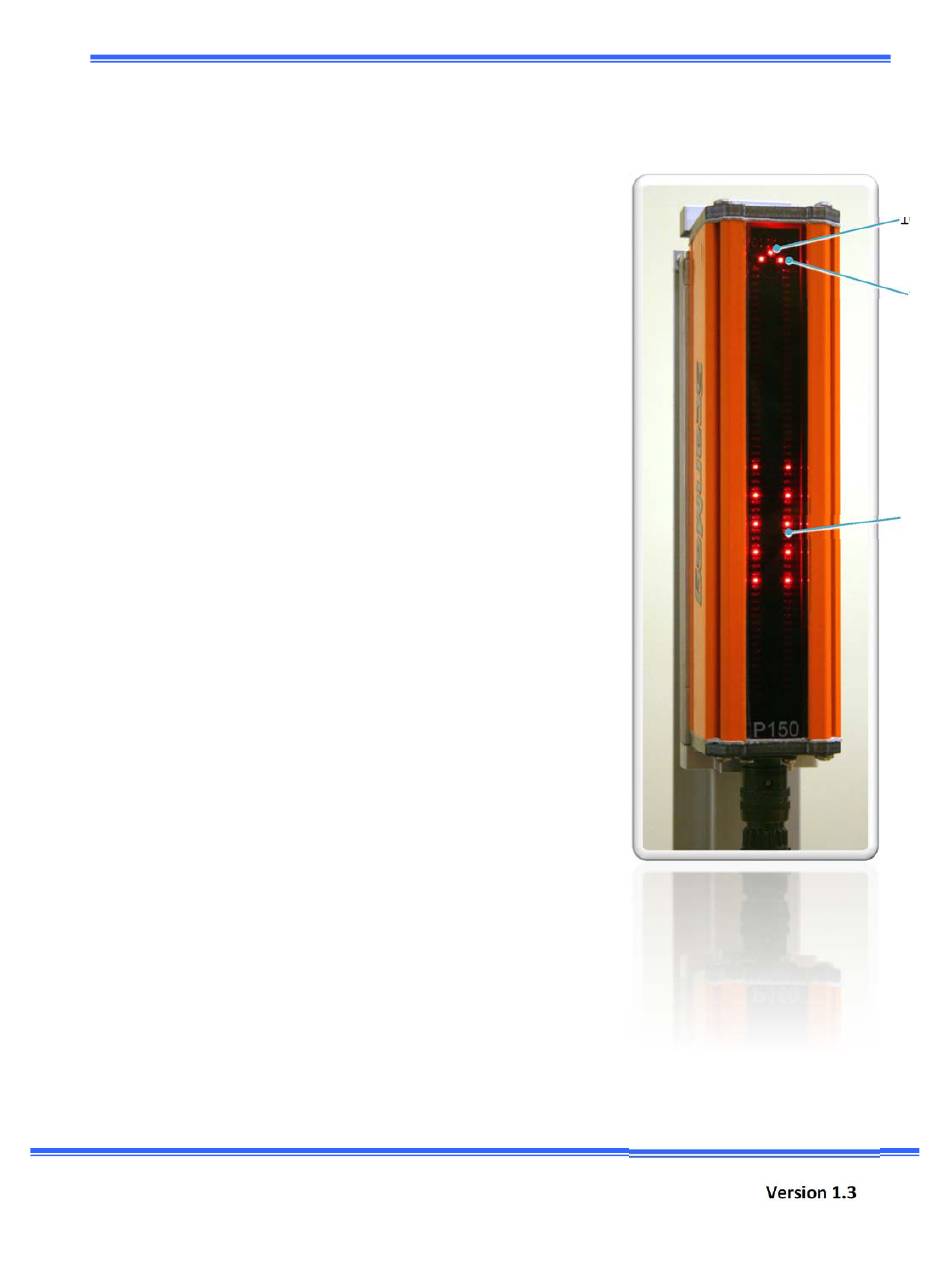

10. Power
The LED is located at the opposite end of the connector. The one
at the top is the power supply, LED status. When the SIM module
is under power and the receiver is connected, this LED is "on".
11. Presence
Below the Power LED, two LEDs are present on either side of the
center line of the photocell. When the photocell detects a valid,
object according to the minimum detectable dimension, both
LEDs are "on". These LEDs always follow the state of the green
LED (presence) located on the SIM‐P module.
12. Each cell state
Below the power presence LED, two rows of LEDs are located on
each side of the center line of the window. When a cell is
obstructed, the equivalent LED located on each side of this cell is
set "on". A total of 64 LEDs are present. According to the scan
precision, more or less LEDs are set "on". In coarse resolution, 16
are functioning, in medium resolution 32 and, in high resolution,
all 64 LEDs are functioning. Unlike the SIM‐P's LEDs, the half‐
intensity level does not exist in the receiver to indicate that the
minimum detectable object has not been reached. If this were the
case, some LEDs are "on", but the two presence LEDs are not "on"
indicating that the photocell detects something that is less than
the minimum detectable dimension. When a cell is cancelled, the
corresponding LED will flash 2 times per second until a reset
cancellation is performed, or the cancellation is disabled.
