How to install or remove Sensor head with a bracket

The sensor head can be removed or installed on its mounting bracket at any time. The cable can be
unplugged at any time. In the following paragraph, we will connect and un‐connect the cables when
the sensor is fixed onto its mounting bracket, but this step can be done in any sequence and not
necessarily in the order shown in the following procedure .

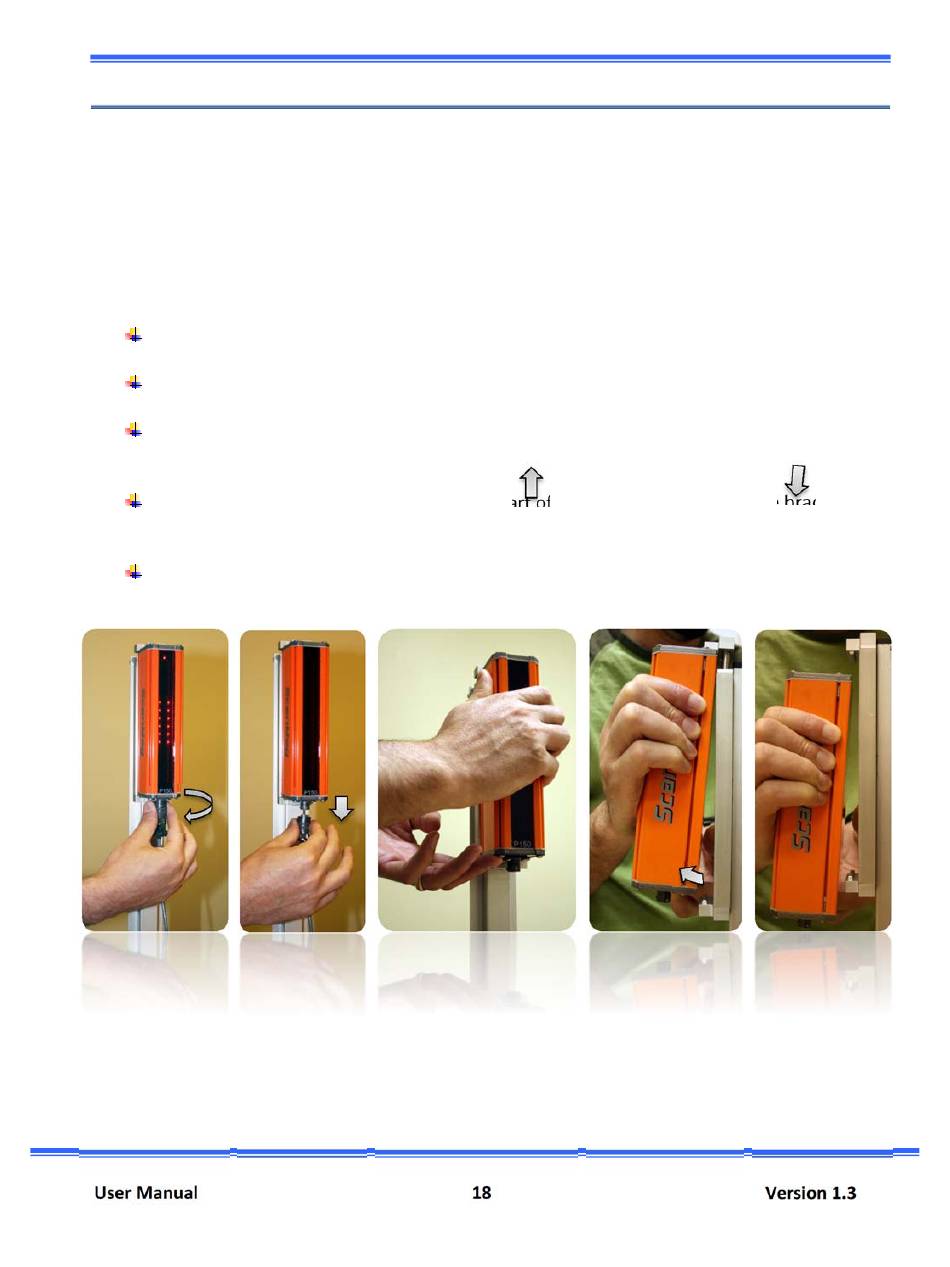

To remove a sensor from its mounting bracket, follow these steps:
Remove the connector by rotating the shell counter clockwise direction by 120
Unplug the connector by pulling it down ( Picture 2).
Grab only the photocell, without the bracket, and push up to release the bottom from the
bracket (Picture 3).
Maintain the pressure and pull the bottom part of the photocell away from the bracket.
(Picture 4).
Release the pressure on the photocell and remove it (Picture 5).
Picture 1
Picture 2
User Manual
Picture 3
18
Module SIM‐P
Picture 4
o
( Picture 1).
Picture 5
