Display and membrane keypads

The display has 32 alphanumeric characters mounted in two rows of 16 characters. When the
display shows information, the two lines are used to display the message. When the display is used
to show a parameter, the first line informs you which one of the parameters is actually displayed. In
this situation, the second line shows the actual selected value for this specific parameter.
A selected value has an arrow on each side of the display. When a value is displayed without the
arrow, these parameter values are available, but not selected at this time. To select one of them
and make this value the new actual setup for a parameter, just maintain the enter key for one
second. The arrow on each side will appear to tell you the new selected parameter is accepted.
At some point, a choice is necessary in order to continue. When this situation occurs, the F1 and F2

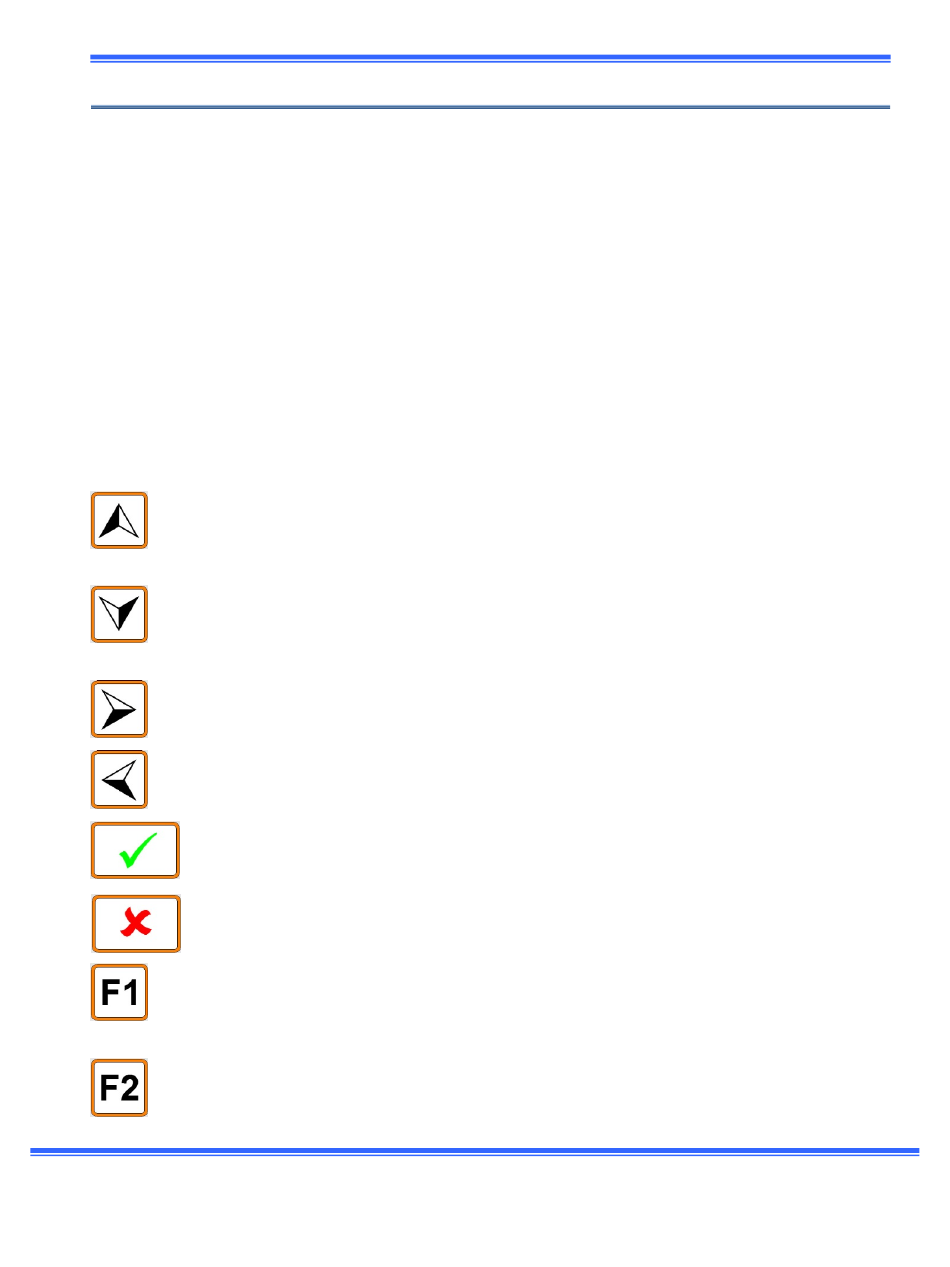

button are the choices available to you. In total, eight keys are present on the membrane keypads.
These keys are:
Scroll up (previous parameter menu)
Displays the previous parameter menu available. From the first menu, it will display the
last one.
Scroll down (next parameter menu)
Displays the next parameter menu available. From the last menu, it will display the first
one.
Next (parameter value)
Shows the next available parameter value for each specific parameter menu
Previous (parameter value)
Shows the previous available parameter value for each specific parameter menu
Enter
Validation of a command or selection of a new parameter value
Cancel
Cancels the actual command or setup if several steps are required
F1
Selection #1 for a command. The second line (left side) displays the corresponding action
link with F1
F2
Selection #2 for a command. The second line (right side) displays the corresponding action
link with F2
