Replacement Parts List; Country Club Road P.o. Box - Coffing Hoists Concert Series Operating, Maintenance & Parts Manual

Country Club Road
P.O. Box 779
Wadesboro, NC 28170 USA
TEL: (800) 477-5003
FAX: (800) 374-6853
Parts List for Basic Unit
Ref Description
No.
1 Motor
(See Figures 11 & 12)
2 Cover Screw
3 Trim Cover
4 Transmission Housing
5 Transmission Case Gasket
6 Transmission Cover
7 Electrical Cover Gasket
8 Electrical Cover
9 Hook Retainer Screw
10 Top Hook Assembly with Latch
Swivel Hook (std.)
Rigid Hook
†
( † ) Optional
For more information contact: Sievert Crane and Hoist, (708) 771-1600, parts@sievertelectric.com, www.sievertcrane.com

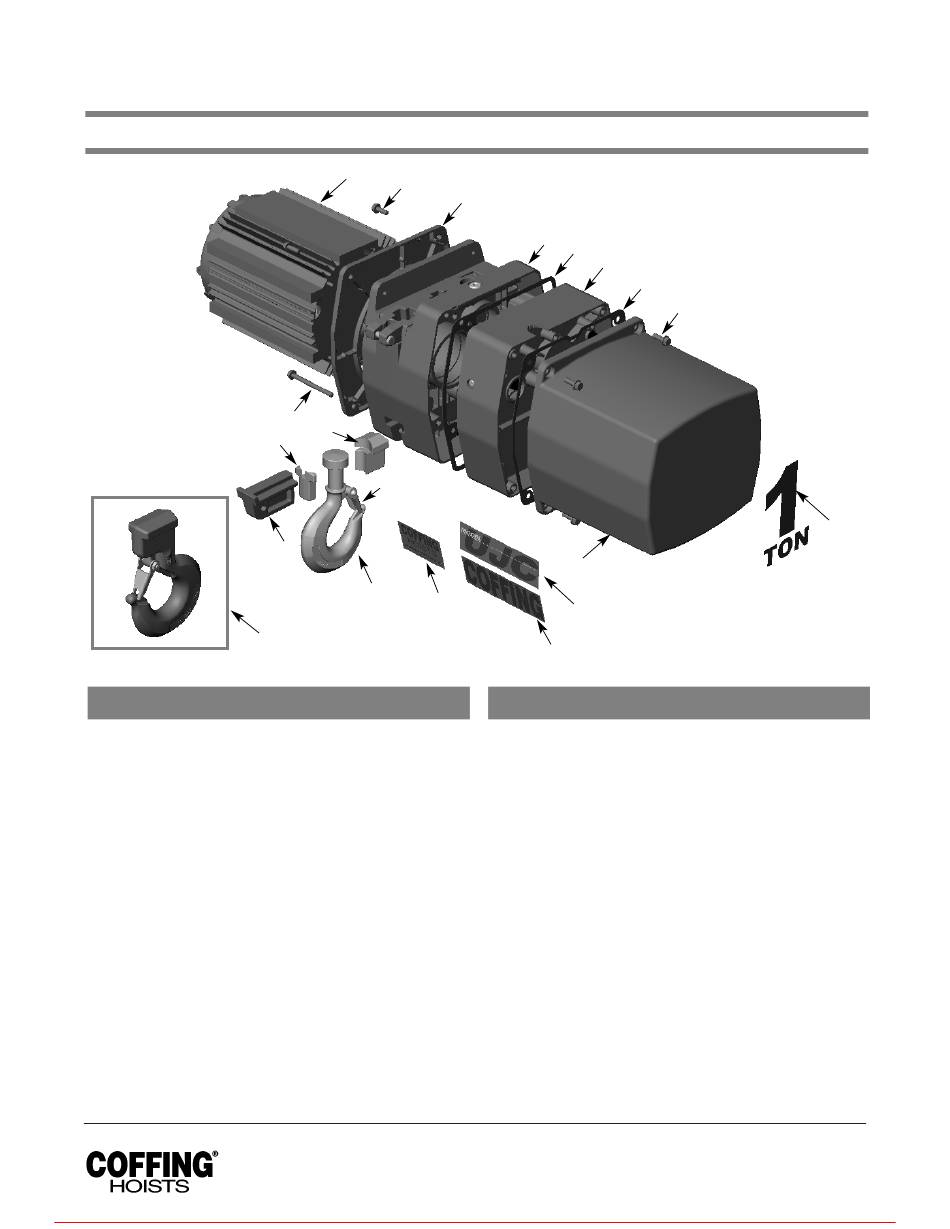

Figure 10 - Basic Unit
