Coffing Hoists Concert Series Operating, Maintenance & Parts Manual page 22

Country Club Road
P.O. Box 779
Wadesboro, NC 28170 USA
TEL: (800) 477-5003
FAX: (800) 374-6853
Parts List for Limit Switch
Ref Description
No.
1 Transmission Cover
2 Limit Switch Assembly
(Includes items 3-21)
3 Post
4 8-32UNC X 1/2" Screw
5 #8 External-tooth Lockwasher
6 8-32UNC X 1/4" Screw
7 Limit Switch Shaft & Gear
8 Limit Switch Nut (gold)
9 Limit Switch Nut (silver)
10 Thrust Washer
11 Spring
For more information contact: Sievert Crane and Hoist, (708) 771-1600, parts@sievertelectric.com, www.sievertcrane.com

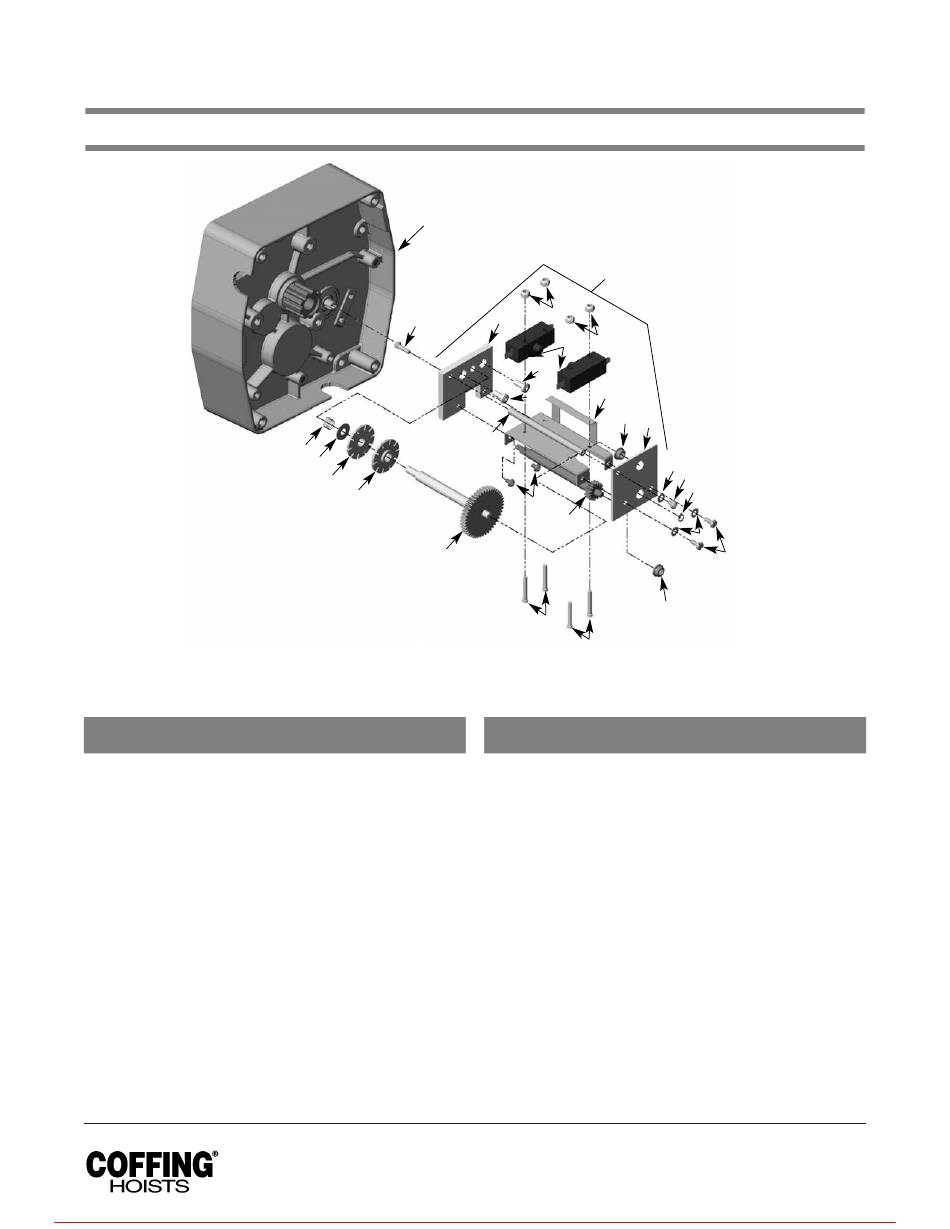

Figure 16 - Limit Switch Parts
1
4
11
10
8
9
7
Part Qty
No.
JM34 1
944JG6 1
110J14 1
H1210 1
H4158 3
854823 3
117JG2 1
SK6000-63W 1
SK6000-63Z 1
255K16 1
PB287 1
2
15
16
15
13
22
17
22
12
18
3
6
20
14
14
Ref Description
No.
12 Bushing
13 Switch
14 6-32UNC X 1" Screw
15 6-32UNC Elastic Locknut
16 Mounting Plate
17 Frame and Guide Assembly
18 End Plate
19 8-32UNC X 3/8" Screw
20 Drive Pinion
21 Retaining Ring
22 10-24UNC X 3/8" Screw
22
5
6
21
5
19
12
Part Qty
No.
JF531-4
815J1
H1402P
H3944
129J1
258JG7
258J8
H2741P
427J1
H5520
H2981P
2
2
4
4
1
1
1
2
1
1
2
