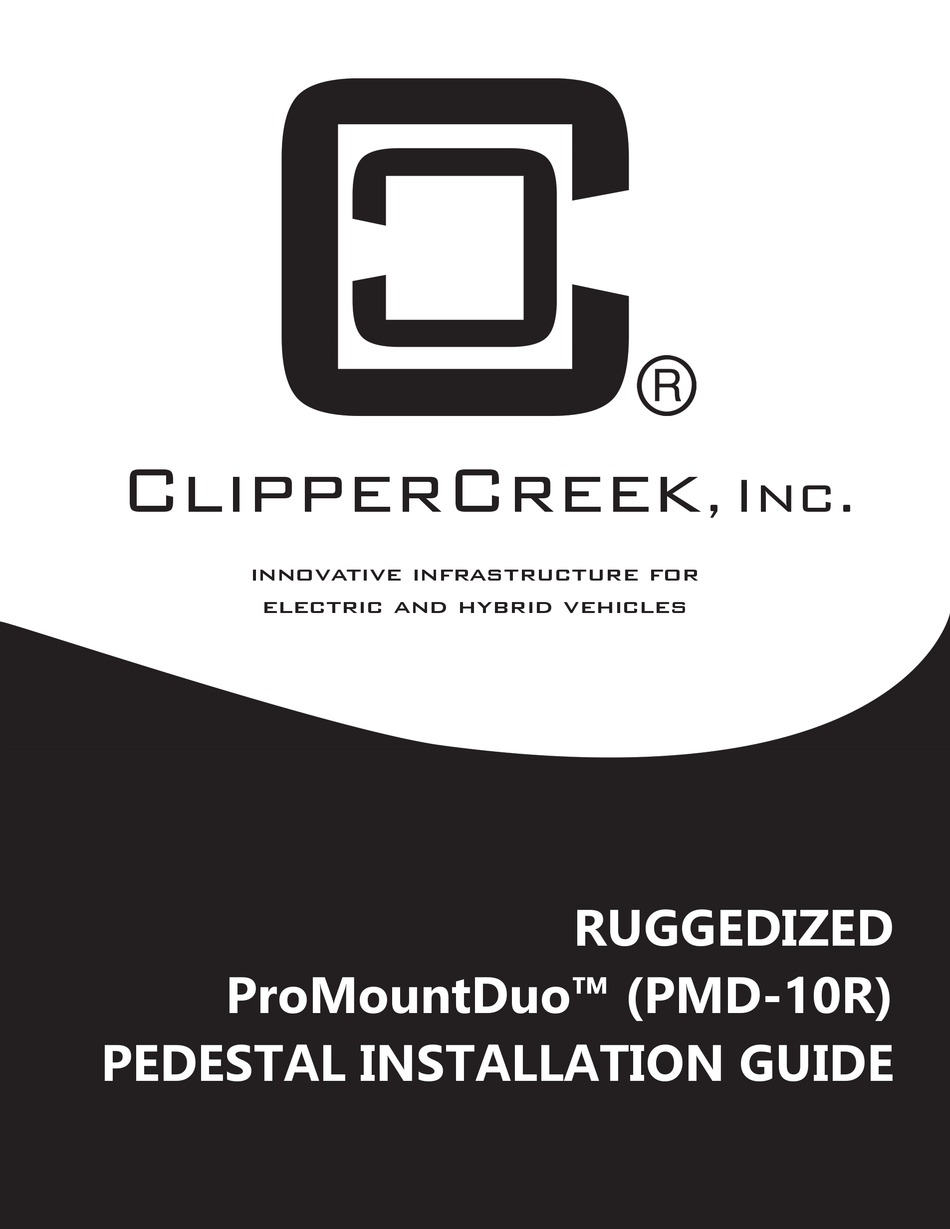

- Page 1 ClipperCreek , Inc. innovative infrastructure for electric and hybrid vehicles RUGGEDIZED ProMountDuo™ (PMD-10R) PEDESTAL INSTALLATION GUIDE...
- Page 2 This user’s manual includes the latest information at the time of printing. ClipperCreek, Inc. reserves the right to make changes to this product without further notice. Changes or modifications to this product by other than an authorized service facility may void the product warranty.
-
Page 3: Table Of Contents
RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....................4 TOOLS REQUIRED ............................ 5 CONFIGURATIONS AND INSTALLATION REQUIREMENTS ............5-13 PACKING LIST ............................. 14-15 OPTIONAL ORDERABLE ITEMS ......................16 INSTALLATION INITIAL PEDESTAL INSTALLATION ..................17-23 HCS EVSE INSTALLATION ....................... -
Page 4: Important Safety Instructions
Note to the User: Keep these instructions for further reference. The TESLA Wall Connector and ClipperCreek EVSE (Electric Vehicle Supply Equipment) are designed with ® the safety concerns of the end user as an utmost priority; however, the following safety precautions must be read and followed: •... -
Page 5: Tools Required
LCS/ACS, OR TESLA EVSE ® The following tools are required for the installation and assembly of the ClipperCreek Ruggedized ProMountDuo™ pedestal components. • Ratcheting Low-Profile Driver with T25 and T30 Torx bits (there are some tight spaces). IF USING HIGH POWER TOOLS ON THE TORX SCREWS, USE WITH CARE, ON A LOW TORQUE SETTING, AS THEY MAY STRIP THE THREADED INSERTS AND/OR DENT THE SURFACES OF THE PEDESTAL. - Page 6 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. CONFIGURATIONS AND INSTALLATION REQUIREMENTS (continued) HCS EVSE SINGLE AND DUAL MOUNT CONFIGURATIONS & DIMENSIONS (HCS Single Mount) (HCS Dual Mount) (If Dual Mount) (If Single Mount) Page 6...
- Page 7 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. CONFIGURATIONS AND INSTALLATION REQUIREMENTS (continued) LCS/ACS EVSE SINGLE AND DUAL MOUNT CONFIGURATIONS & DIMENSIONS (Optional GFCI Outlets) (If Dual Mount) (If Single Mount) Page 7...
- Page 8 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. CONFIGURATIONS AND INSTALLATION REQUIREMENTS (continued) TESLA EVSE SINGLE AND DUAL MOUNT CONFIGURATIONS & DIMENSIONS ® Figure 3 Approx. 19-22” (varies with cable wrap method) (TESLA Single Mount) ® (TESLA Dual Mount) ®...
- Page 9 ClipperCreek HCS EVSE (One EVSE per Pedestal): • One (1) ClipperCreek Ruggedized ProMountDuo™ Kit, ClipperCreek part number 0300-00-026. • One (1) ClipperCreek HCS EVSE, part number is determined by amperage and options selected. • One (1) dedicated 208 or 240V AC branch circuit. •...
- Page 10 ClipperCreek LCS/ACS EVSE (One EVSE per Pedestal): • One (1) ClipperCreek Ruggedized ProMountDuo™ Kit, ClipperCreek part number 0300-00-026. • One (1) ClipperCreek LCS/ACS EVSE, part number is determined by amperage and options selected. • One (1) dedicated branch circuit, voltage dependent upon the EVSE option selected.
- Page 11 • One (1) ClipperCreek Ruggedized ProMountDuo™ Kit, ClipperCreek part number 0300-00-026. • One (1) ClipperCreek HCS EVSE, part number is determined by amperage and options selected. • One (1) ClipperCreek LCS/ACS EVSE, part number is determined by amperage and options selected.
- Page 12 CONFIGURATION F: CONFIGURATION F Required Equipment for a Single-Mount Pedestal with one TESLA EVSE (One EVSE per Pedestal): ® • One (1) ClipperCreek Ruggedized ProMountDuo™ Kit, ClipperCreek part number 0300-00-026. • One (1) TESLA EVSE, TESLA part number 1050067-01-E. ®...
- Page 13 EVSE (Two EVSE per Pedestal): ® • One (1) ClipperCreek Ruggedized ProMountDuo™ Kit, ClipperCreek part number 0300-00-026. • One (1) ClipperCreek HCS EVSE, part number is determined by amperage and options selected. • One (1) TESLA EVSE, TESLA part number 1050067-01-E.
-
Page 14: Packing List
RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. PACKING LIST 0300-00-026 Ruggedized ProMountDuo™ Pedestal Kit ITEM PART REFERENCE NUMBER DESCRIPTION 1003-0046 Pedestal Metalwork, Base 1003-0051 Pedestal Metalwork, Ruggedized Bottom Panel 1003-0052 Pedestal Metalwork, Ruggedized Top Panel 1003-0053 Pedestal Metalwork, Ruggedized Cap... - Page 15 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. HARDWARE E x 38 K x 4 F x 4 (Two Installed and Two Loose Black Plugs) L x 4 (Four Installed Black Plugs) I x 38 Service Bushing ® (Required for...
-
Page 16: Optional Orderable Items
To order, call (877) 694-4194 or visit https://store.clippercreek.com/accessories EVSE Tester (CP-50 0500-03-000) CP-50 EVSE Tester from ClipperCreek is the perfect tool for installers to test the EVSE installation if there is not a vehicle present. • Test your EVSE install without having a vehicle present •... -
Page 17: Installation
RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. INITIAL PEDESTAL INSTALLATION 1. CONCRETE PAD REQUIREMENTS The location, dimensions, and composition of the concrete pad underlying the pedestal should always adhere to local building codes. The following dimensions are minimum recommended values. - Page 18 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. INITIAL PEDESTAL INSTALLATION (continued) 3. MOUNT THE PEDESTAL BASE Once the concrete pad with anchor bolts has been prepared and the three service conductors have been pulled through the underground conduit, the Pedestal Base (A) may be placed.
- Page 19 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. INITIAL PEDESTAL INSTALLATION (continued) 4. INSTALL THE BOTTOM PANELS Leave all screws slightly loose for alignment purposes until instructed to tighten at the end of this section. a. Place a #10 washer (I) around the shaft of each of the thirty-eight (38) #10 Torx T25 screws (E).
- Page 20 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. INITIAL PEDESTAL INSTALLATION (continued) 5. HCS EVSE INSTALLATIONS ONLY: The HCS Service Access hole and HCS Plug (P) will be difficult to access after this step. If installing HCS EVSE, please proceed with the following steps at this time.
- Page 21 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. INITIAL PEDESTAL INSTALLATION (continued) 6. INSTALL THE TOP PANELS a. Align the screw holes of the first Top Panel (C) with the corresponding screw holes on the Bottom Panel (B). The Top Panel should be overlapping the Bottom Panel on all sides.
- Page 22 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. INITIAL PEDESTAL INSTALLATION (continued) d. To install the second Top Panel (C), gently nest the narrow edge of the second Top Panel over the top of the Bottom Panel (B) and tuck inside the opposing Top Panel.
- Page 23 & (I) as well as two (2) Plugs (K) similar to Figure 18 then proceed to the TESLA ® EVSE Installation chapter. b. If installing a ClipperCreek EVSE, a Holster for the SAE-J1772™ Vehicle Connector will accompany each new EVSE. Remove the Holster(s) from the EVSE packaging.
-
Page 24: Hcs Evse Installation
RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. HCS EVSE INSTALLATION 1. PREPARE THE HARDWARE a. Retrieve two (2) 1/4-20 x 2” Torx T30 screw and washer sets (F) & (H) that were previously set aside. b. Locate the correct HCS plastic angle washers. - Page 25 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. HCS EVSE INSTALLATION (continued) 3. INSTALL THE HCS EVSE a. For ease of assembly, unwrap the cable and stow the SAE-J1772™ Vehicle Connector into the Holster as shown. The button on the...
- Page 26 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. HCS EVSE INSTALLATION (continued) e. Use a T30 Torx driver to secure the top of the HCS EVSE using one (1) 1/4-20 x 2” Torx screw and washer set (F) & (H) with the HCS Plastic Angle Washer as shown. Do not over-tighten. Refer to Figure 23.
-
Page 27: Lcs/Acs Evse Installation
RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. LCS/ACS EVSE INSTALLATION 1. INSTALL THE LCS/ACS EVSE a. Retrieve two (2) of the 1/4-20 x 2” Torx T30 screw and washer sets (F) & (H) that were previously set aside. b. Insert the screws into the upper and lower... - Page 28 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. LCS/ACS EVSE INSTALLATION (continued) k. Align the four keyholes on the top and bottom of the LCS/ACS EVSE with the corresponding screw holes in the Top Panel (C). The keyhole slots are the...
-
Page 29: Tesla ® Evse Installation
RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. TESLA EVSE INSTALLATION ® 1. PREPARE THE TESLA EVSE AND MOUNTING COMPONENTS ® a. The TESLA EVSE shipping box contains additional components that will be used to mount the ® EVSE to the Ruggedized PMD-10R Pedestal. Refer to Figure 33. - Page 30 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. TESLA EVSE INSTALLATION ® (continued) 2. PREPARE THE SIDE OF THE PEDESTAL ON WHICH THE TESLA EVSE WILL BE ® MOUNTED a. Remove the large and the small plastic Plugs (K) & (L) as shown in Figure 34.
- Page 31 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. TESLA EVSE INSTALLATION ® (continued) 3. INSTALL THE TOP ENTRY BRACKET (Q) a. Pop out the larger Service hole knockout from the Top Entry Bracket (Q). b. If Load Sharing will be utilized, pop out the small Signal hole knockout from the Top Entry Bracket (Q).
- Page 32 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. TESLA EVSE INSTALLATION ® (continued) 5. CONNECT THE WIRING a. The ground conductor and ground lug connections inside the Pedestal Post must be completed at this time. The ground lugs have a 3/16” Hex screw (Allen screw) and are pre- installed inside the Top Panel (C) as shown in Figure 40.
-
Page 33: Tesla ® Evse Installation
RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. TESLA EVSE INSTALLATION ® (continued) 7. SECURE THE TESLA EVSE (P) TO THE TOP ® Figure 42 ENTRY BRACKET (Q) a. Use a T20 Torx driver with the Top and Bottom Bracket-to-Housing Screws (W) & (X) to mount the TESLA EVSE as shown in Figure 42. -
Page 34: Final Pedestal Installation
(E) & (I). Do not over-tighten. See Figure 46. 3. VERIFY THE EVSE OPERATION a. Verify the safety of the installation prior to turning on the circuit breaker. b. Refer to the applicable ClipperCreek EVSE and/or TESLA EVSE User’s Guides for ®... -
Page 35: Customer Support
, Inc. CUSTOMER SUPPORT Call your ClipperCreek, Inc. Service Representative at any time, 24 hours a day, at the number below. PLEASE HAVE THE MODEL NUMBER AND SERIAL NUMBER AVAILABLE WHEN YOU CALL. This information is printed on the label on the side of the pedestal. If calling after business hours or on weekends, please leave your name, telephone number, the unit serial number, and a brief description of the problem. -
Page 36: Warranty Information
ClipperCreek. Any service repair outside the scope of this limited warranty shall be at applicable rates and terms then in effect. This warranty covers factory parts and factory labor only; it does not cover field service or removal and replacement of the product or any other costs. - Page 37 RUGGEDIZED ProMountDuo™ PEDESTAL INSTALLATION GUIDE ClipperCreek , Inc. This page was intentionally left blank. Page 37...
- Page 38 ClipperCreek , Inc. 11850 Kemper Rd., Suite E Auburn, CA 95603 www.clippercreek.com 877-694-4194...
