1. Basic Harness (B),
Connect the 14/B wire as shown in Diagram 2.

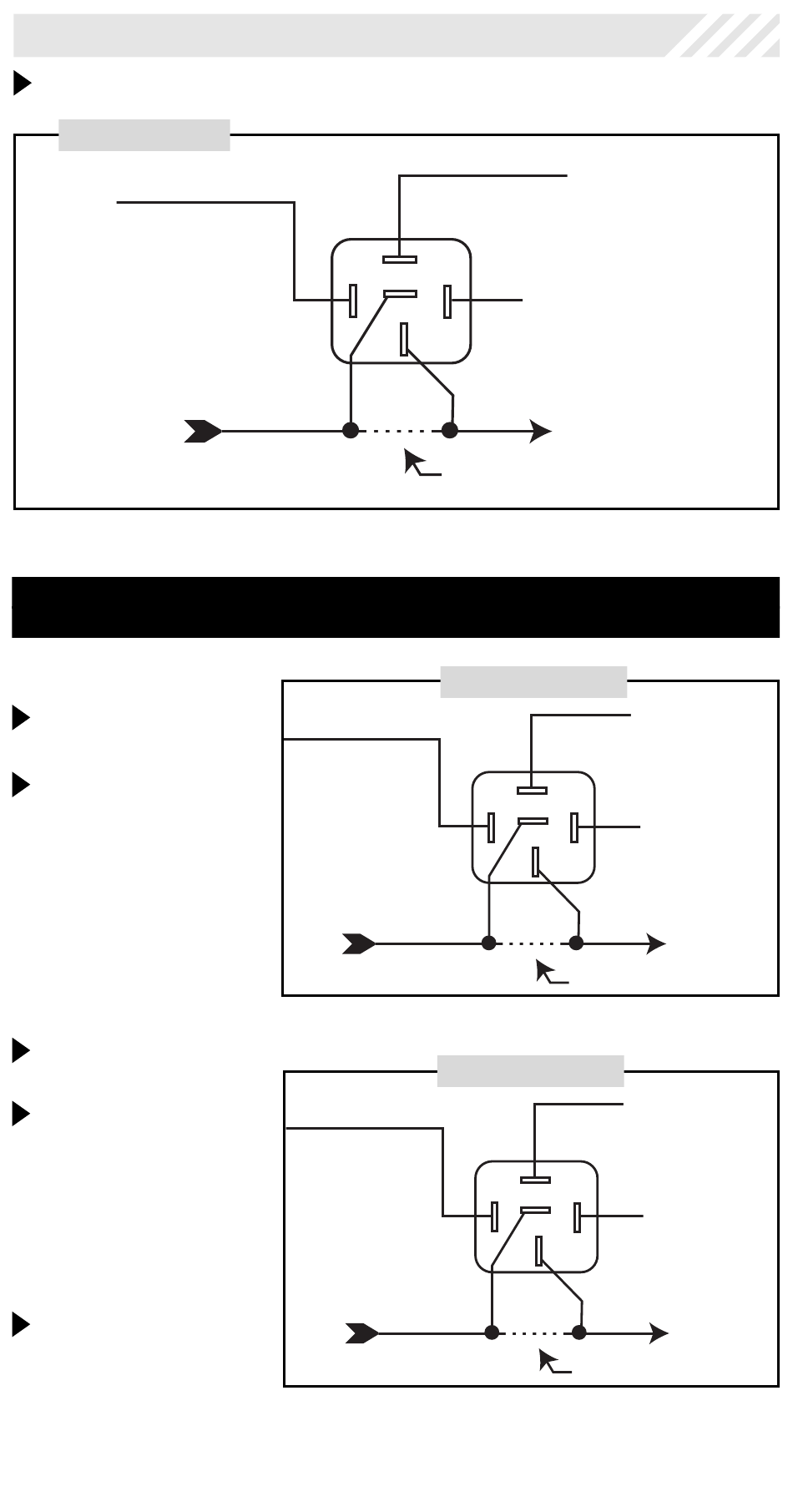

Diagram 2
14B Unlock
From Driver's Door Only
Unlock Switch or Relay
Type 2: Positive 5-Wire Door Lock System
Polarity fuse = Positive (+)
Single-Stage Unlock
Connect wire 2/B as
shown in Diagram 3.
Connect wire 14/B
as shown in
Diagram 4.
Two-Stage Unlock
Connect wire 2/B as
shown in Diagram 3.
Use a SPDT relay
(not supplied) and
connect the 24/B
wire to the vehicle's
unlock wire as
shown in Diagram 5
(page 5).
Connect wire 14/B
as shown in
Diagram 2 (above).
4
cont'd.
85
86
87
87a
30
X
CUT HERE
Lock
2B
Door Lock Switch
Unlock
14B
Unlock Switch
12v
Ground
To Driver's Door Unlock Motor
Diagram 3
85
86
87
87a
30
Door Lock Motor
X
CUT HERE
Diagram 4
85
86
87
87a
30
Unlock Motor
X
CUT HERE
Fused + 12v
Ground
Fused + 12v
Ground
