1. Basic Harness (B),
20/B Positive/Negative Door Input (20 AWG) (GREEN/VIOLET)
Connect the 20/B wire to the vehicle pin switch or courtesy light
circuit.
Verification - Refer to Vehicle Wire Color and Location Chart for circuit
type and location, or verify the vehicle wire using the following guideline:
• Positive Systems - Target wire registers voltage
• Negative Systems - Target wire registers ground

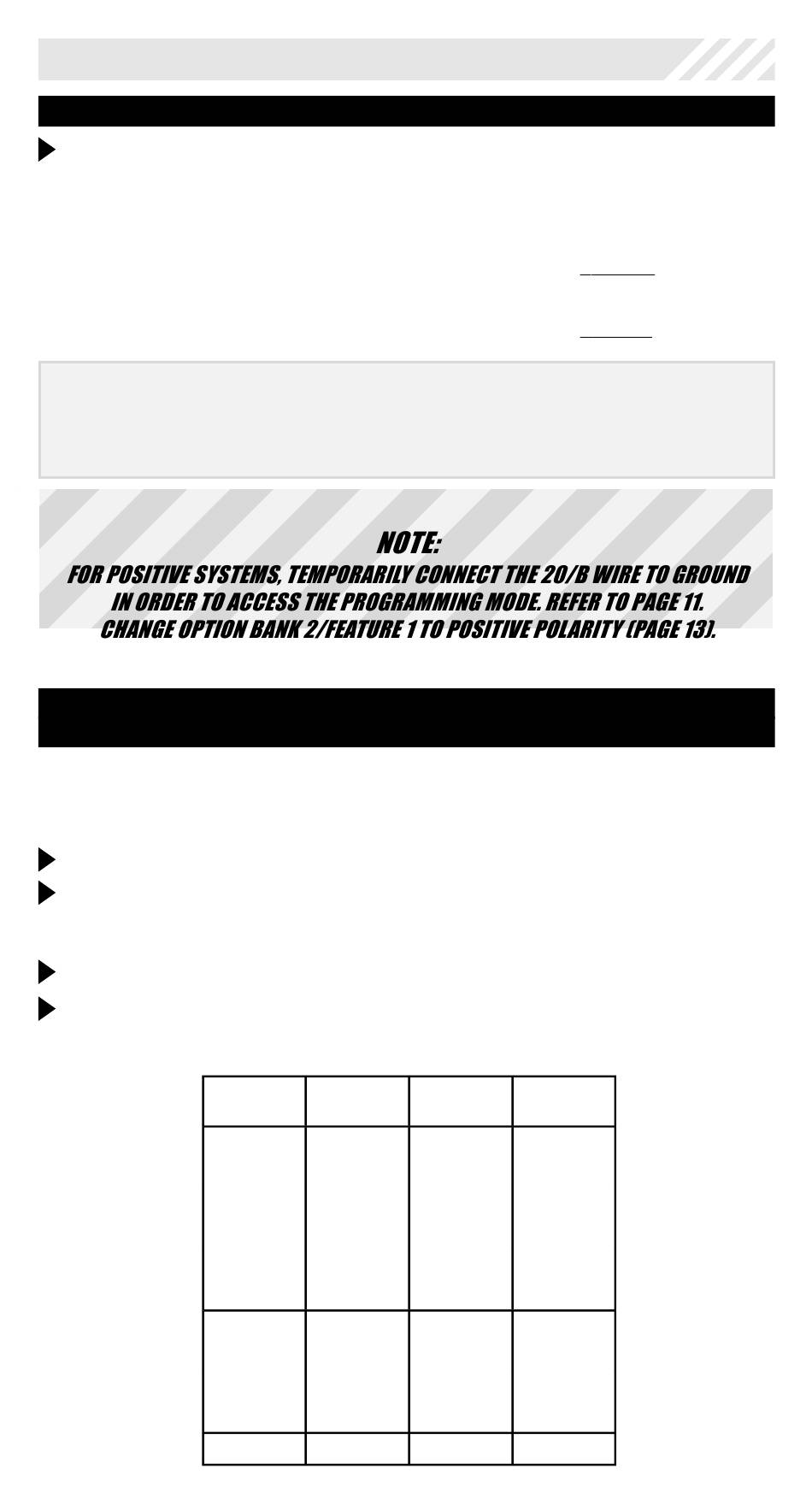

After installation, select the polarity of this circuit in programming
Option Bank 2/Feature 1 (factory default = negative), page 13.
22/B LED2 (20 AWG+)
23/B LED1 (20 AWG-)
Locate a visible section of the dash with 1" clearance behind
the location.
9
Drill a / " hole and snap the Status Indicator into place.
32
Connect the Status Indicator Red Wire to the 22/B LED2 wire.
Connect the Status Indicator Black Wire to the 23/B LED1 wire.
Tip: To change the Red LED to a Green LED:
Connect the status indicator Black wire to the 22/B LED2 wire.
Connect the status indicator Red wire to the 23/B LED1 wire.
10
cont'd.
Important!
Fuse Size & Location
Trunk Dome
Output Light
+ +
|| ||
|| ||
15A 15A
_ _
|| ||
|| ||
25A 25A
|| ||
Heater 1 Heater 2
when any door is opened.
when any door is opened.
Parking
Lights
+
||
||
15A
_
||
||
25A
||
Ignition 1/2
Door
Locks
+
||
||
25A
_
||
||
5A
||
Main Power
