Summary of Contents for Garland M/MST35

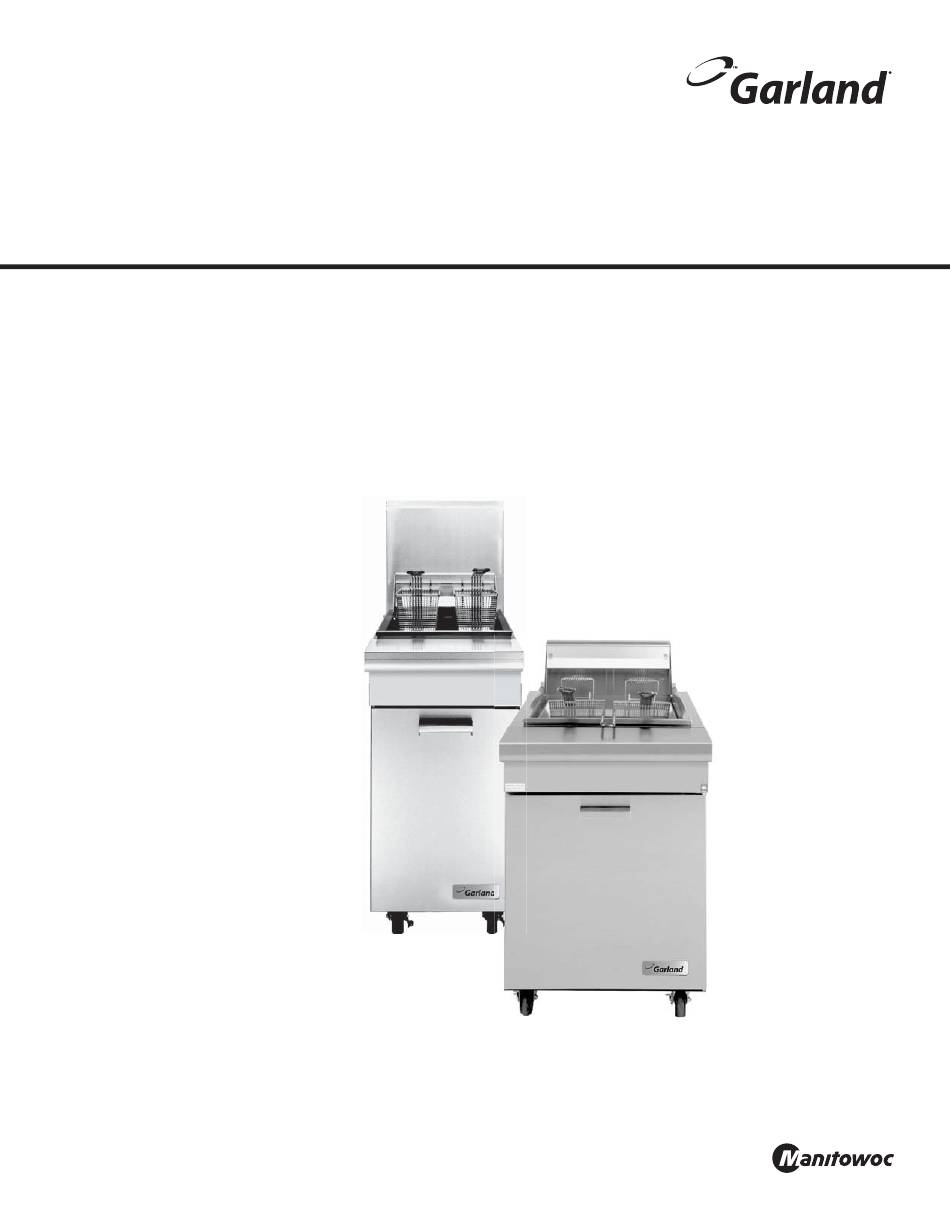

- Page 1 MASTER SERIES HEAVY DUTY GAS FRYERS MODELS M/MST35 & M/MST70 Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part # 1382677 - 2/15...
-
Page 2: Important Information
Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent using genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents. -
Page 3: Table Of Contents
Lighting Instructions ......11 Model M/MST35 ..... . . 4 Stand By . -
Page 4: Model M/Mst35
DIMENSIONS AND SPECIFICATIONS, MODEL M/MST35 3-1/2" [89mm] CLEARANCES SHIPPING INSTALLATION ENTRY 37-7/8" WEIGHT 34-3/8" [962mm] Sides Rear Crated Uncrated [873mm] 6" 6" 29-1/4" 17-1/4" 220lb. (152mm) (152mm) (746mm) (618mm) (100kg) 13-1/8" [333mm] 33-3/8" [848mm] 31-1/2" [800mm] 46-3/4" [1187mm] With "BG"... -
Page 5: Model M/Mst70
DIMENSIONS AND SPECIFICATIONS, MODEL M/MST70 3-1/2" [89mm] DIMENSIONS & SPECIFICATIONS Width 24"(612mm) 37-7/8" Depth 38" (965mm 34-3/8" [962mm] [873mm] Height (w/ NSF Legs) 36-3/8" (924mm) Height (w/o NSF Legs) 30-3/8" (772mm) Input-BTU (Natural Gas) 125,000 (36.62 kW) Shipping WT:(LB/KG) 225(120.5) Gas input ratings shown here are for installations up to 2,000 19-5/8"... -
Page 6: Installation
When buildings are so tight that normal infi ltration A pressure regulator is supplied as standard equipment with does not provide the necessary air, outside air shall be GARLAND Heavy Duty Gas Fryers and Restaurant Gas Series introduced. Fryers. The pressure regulator is “built-in” to the fryer, (the regulator is part of the combination safety valve). -
Page 7: Clearances
Before connecting new pipe to your GARLAND Fryer, the pipe must be thoroughly blown out to depose of all foreign C. Please be aware, required restraint is attached to a particles. -
Page 8: Ventilation And Air Supply
All 35M/MST Fryers and 70M/MST Fryers may be burner operation. The fryer fl ue opening must NOT be placed installed to battery with other GARLAND 40 Series Ranges, close to the intake of the exhaust fan. sharing common manifold connections. -
Page 9: Assembly Instructions M-Series
INSTALLATION Continued Assembly Instructions Assembly Instructions M-Series Backguard M-Series Low Profi le Backguard 1. Remove front panel #5 by lifting upward. 1. Remove fl ue cap #6 by removing six (6) [#10] sheet metal 2. With back panel #4 still attached to the left #2 and right screws. -
Page 10: Radiation Shield
INSTALLATION Continued METHOD OF ATTACHING RADIATION SHIELD TO BACKGUARD OR HIGH SHELF RADIATION SHIELD REMOVE EXISTING #10 SHEET METAL SCREWS (2 REQ'D) FROM HIGH SHELF OR BACKGUARD TO INSTALL RADIATION SHIELD FIGURE 1 Radiation Shield SIDES AND FRONT This radiation shield must be in place when fryer is installed in other than fi re resistive locations. -
Page 11: Lighting Instructions
To assure you of maximum protection and performance your GARLAND Fryer is equipped with the best and most reliable controls and safety devices available. The operation thermostat will regulate frying compound temperatures to close tolerances in a range between 250°... -
Page 12: Suggestions For Quality Fried Food
Thus, with a super-fast fryer, PRODUCT TIME such as your GARLAND, you do not have to fry potatoes at 375°F or 400°F, your fry at 325°F. A little experimenting will Fritters determine just the right temperatures for your menu items. -
Page 13: Cleaning And Maintenance
All stainless steel has been polished in one direction. Rub GARLAND fi lter cones are ideal for this and are inexpensive with the polish lines to preserve the original fi nish. Then and readily obtainable from your dealer or parts distributor. -
Page 14: Maintenance
Maintenance drain pipe. The stock pot or other container must be of Your GARLAND equipment is ruggedly constructed and is suffi cient design to withstand the heat generated by the designed, with normal care, to give you long and lasting hot compound and must also be able to hold liquids. -
Page 15: Trouble Shooting And Adjustments
A piece of mechanical equipment which is used as hard as a deep fat fryer is going to require service as the fryer gets The burner used on your GARLAND Fryer is a patented older; therefore, the following chart outlines problems that design which does not require primary air, so no primary air are most likely to occur and what to do to correct them. -
Page 16: Thermostat Calibration
TROUBLE SHOOTING AND ADJUSTMENTS Continued Thermostat Calibration NOTE: DO NOT TURN ADJUSTING SHAFT MORE THAN TWO TURNS IN EITHER DIRECTION OR PERMANENT DAMAGE CAN To calibrate the Fenwal Thermostat, fi ll the frypot to the FULL RESULT. THIS ACTION MAY VOID THE STANDARD WARRANTY. mark with frying compound and turn the burner on. - Page 17 Part # 1382677 - 2/15 Page 17...
- Page 18 GARLAND 1177 KAMATO ROAD, MISSISSAUGA, ONTARIO, CANADA, L4W1X4 888-442-7526 WWW.GARLAND-GROUP.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certifi ed OEM parts, global parts inventory, performance audited ExtraCare —...
