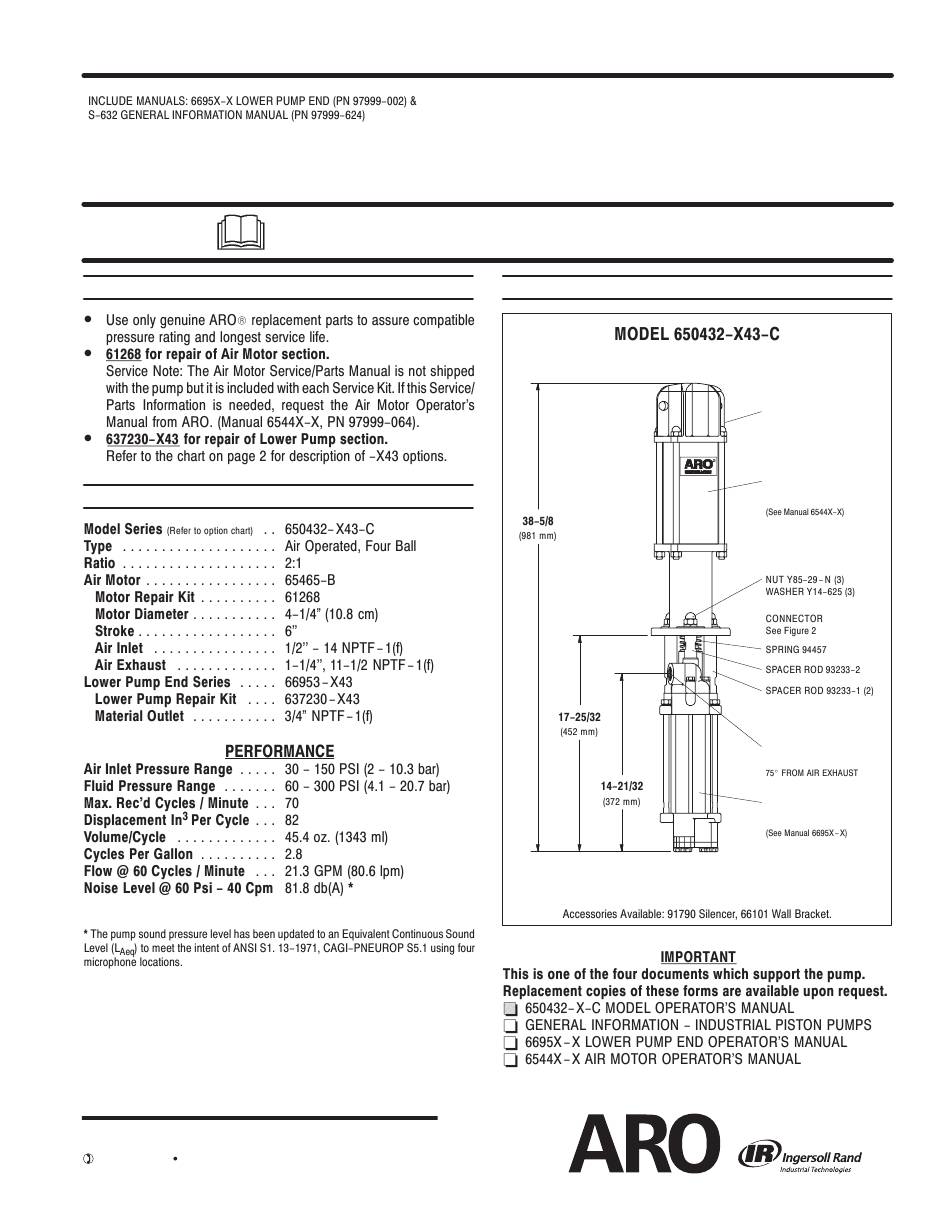

OPERATOR'S MANUAL
SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING
4–1/4" AIR MOTOR
2:1 RATIO
6" STROKE
SERVICE KITS
SPECIFICATIONS
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
650432–X43–C
FOUR BALL PUMP SERIES
CARBON STEEL, ELECTROLESS NICKEL PLATED
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
CCN 99639387
© 2010
650432 –X–C
RELEASED: 11–15–96
REVISED:
PUMP DATA
Air Inlet
1/2–14 NPTF–1(f)
(Not Shown)
Air Motor
65465–B
Spacer Section
Material Outlet
3/4'' NPTF–1(f)
Lower Pump
66953 – X43
FIGURE 1
6–7–10
(REV. 02)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ingersoll-Rand ARO 650432-X43-C Series
Summary of Contents for Ingersoll-Rand ARO 650432-X43-C Series
- Page 1 (Not Shown) Air Motor SPECIFICATIONS 65465–B Spacer Section Material Outlet 3/4’’ NPTF–1(f) Lower Pump 66953 – X43 FIGURE 1 INGERSOLL RAND COMPANY LTD 209 NORTH MAIN STREET – BRYAN, OHIO 43506 (800) 495-0276 FAX(800) 892-6276 CCN 99639387 © 2010 www.ingersollrandproducts.com...
- Page 2 PUMP OPTION DESCRIPTION CHART UHMW-PE/ PTFE PTFE 650432–X 4 3 –C PTFE PTFE/UHMW-PE PTFE GENERAL DESCRIPTION PUMP CONNECTION – UPPER / LOWER WARNING WARNING Pump Motor RETAINING RING Piston Rod 90102 SLEEVE 90109 CONNECTOR Lower Pump 90096 (2) Piston Rod TROUBLE SHOOTING...
