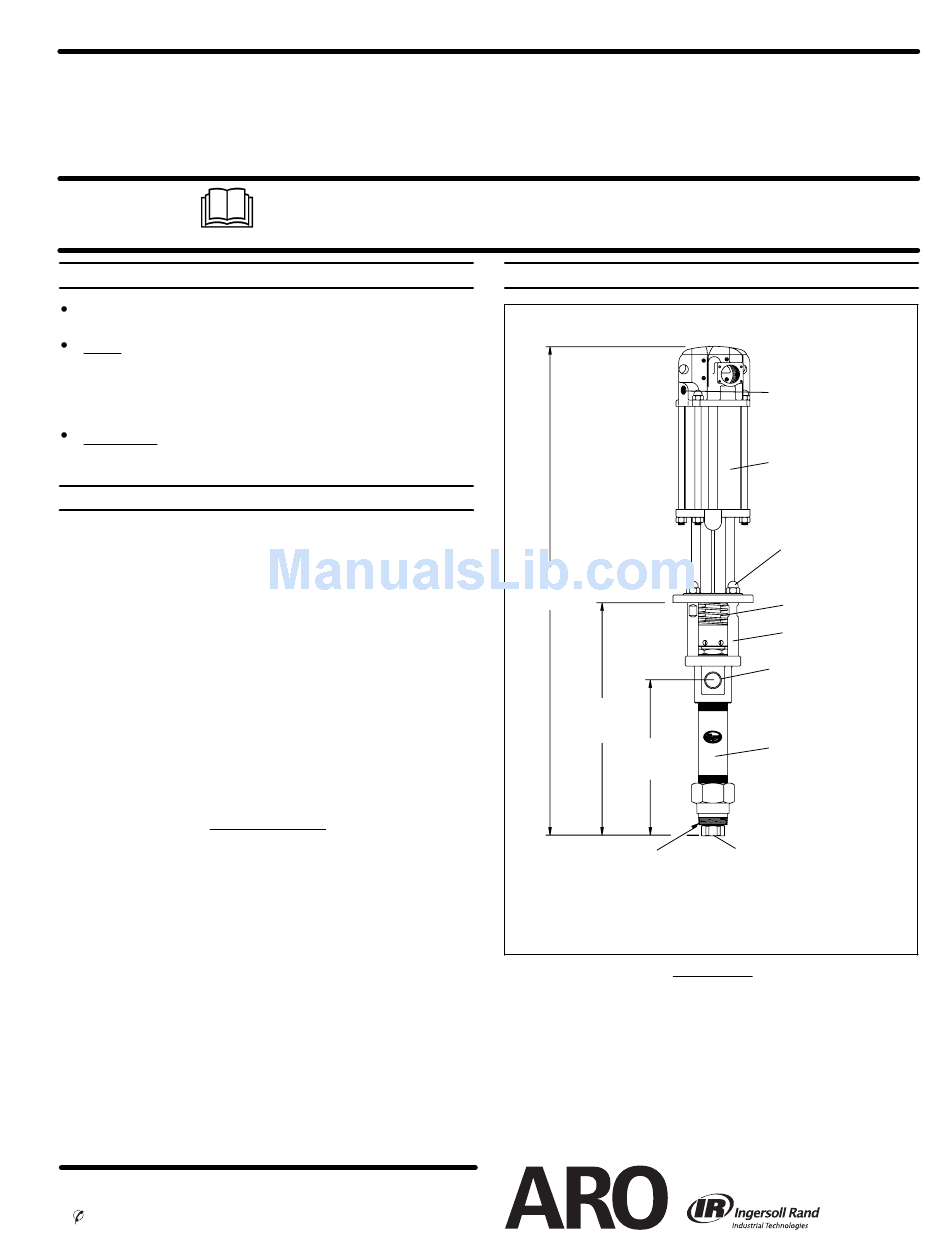

Ingersoll-Rand 650484-X Operator's Manual

OPERATOR'S MANUAL
SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING
INCLUDE MANUALS: 66301-X LOWER PUMP END (PN 97999-647) &
S-632 GENERAL INFORMATION MANUAL (PN 97999-624)
4-1/4" AIR MOTOR
22:1 RATIO
6" STROKE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

R
Use only genuine ARO replacement parts to assure compatible
pressure rating and longest service life.
61268 for repair of Air Motor section.
Service Note: The Air Motor Service/Parts Manual is not shipped
with the pump but it is included with each Service Kit. If this Service /
Parts Information is needed, request the Air Motor Operator's Manu-
al from ARO. (Manual 6544X-X, PN 97999-64).
637306-X43 for repair of Lower Pump section.
Refer to the chart on page 2 for description of -XXX options.

SPECIFICATIONS

Model Series
(Refer to option chart)
Type . . . . . . . . . . . . . . . . . . . . . . . . . .
Ratio . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Motor . . . . . . . . . . . . . . . . . . . . . . .
Motor Repair Kit . . . . . . . . . . . . . . . .
Motor Diameter . . . . . . . . . . . . . . . . .
Stroke . . . . . . . . . . . . . . . . . . . . . . . .
Air Inlet (female) . . . . . . . . . . . . . . . .
Air Exhaust (female) . . . . . . . . . . . . .
Lower Pump End Series . . . . . . . . . . .
Lower Pump Repair Kit . . . . . . . . . . .
Material Inlet (female) . . . . . . . . . . . .
(male) . . . . . . . . . . . . .
Material Outlet (female) . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . .

PERFORMANCE

Air Inlet Pressure Range . . . . . . . . . .
Fluid Pressure Range . . . . . . . . . .
Maximum Rec'd Cycles / Minute
3
Displacement In Per Cycle
Volume / Cycle . . . . . . . . . . . . . . . . . . .
Cycles Per Gallon . . . . . . . . . . . . . . . .
Flow @ 60 Cycles / Minute . . . . . . . . . .
Noise Level @ 60 p.s.i. - 40 c.p.m.
*
Tested with 91790 silencer installed .
* The pump sound pressure level has been updated to an Equivalent Continuous Sound
Level (L ) to meet the intent of ANSI S1. 13-1971, CAGI-PNEUROP S5.1 using four
Aeq
microphone locations.
INGERSOLL RAND COMPANY
209 NORTH MAIN STREET -- BRYAN, OHIO 43506
(800) 495--0276 FAX (800) 892--6276
D
www.ingersollrandproducts.com
TWO BALL PUMP SERIES
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . . 650484-XXX
Air Operated, Two Ball
22:1
65465-B
61268
4-1/4" (10.8 cm)
6"
1/2 - 14 N.P.T.F. - 1
1-1/4 - 11-1/2 N.P.T.F. - 1
66301-XXX
637306-X43
1 - 11-1/2 N.P.T.F. - 1 &
2 - 11-1/2 P.T.F. (short)
1 - 11-1/2 N.P.T.F. - 1
42.9 lbs (19.5 kgs)
30 - 150 p.s.i. (2 - 10.3 bar)
660 - 3412 p.s.i. (46 - 235 bar)
. . . . . 60
. . . . . . . . . 7.5
4.1 oz. (121 ml)
30.9
1.9 g.p.m. (7.2 l.p.m.)
. . . . 81.8 db(A) *
E 2011
CCN 99434656
650484-XXX
300 SERIES STAINLESS STEEL
MODEL 650484-XXX
39-3/4
(1009 mm)
18-15/16
(481 mm)
12-11/16
(322 mm)
2 - 11-1/2 P.T.F. SAE
SPEC. SHORT (male inlet)
Accessories Available: 91790 Silencer, 66101 Wall Bracket.
This is one of the four documents which support the pump. Re-
placement copies of these forms are available upon request.
= 650484-X MODEL OPERATOR'S MANUAL
- GENERAL INFORMATION - INDUSTRIAL PISTON PUMPS
- 66301-X LOWER PUMP END OPERATOR'S MANUAL
- 6544X-X AIR MOTOR OPERATOR'S MANUAL
650484-X
RELEASED:
REVISED:
F )
(REV. D)

PUMP DATA

Air Inlet (female)
1/2 - 14 N.P.T.F. - 1
Air Motor 65465-B
(See Manual 6544X-X)
Spacer Section
NUT Y85-29-C (3)
CONNECTOR
See Figure 2
SPRING 94674
SPACER ROD 94209 (3)
Material Outlet (female)
1 - 11-1/2 N.P.T.F. - 1
32_ FROM AIR EXHAUST
Lower Pump
66301-XXX
(See Manual 66301-X)
1 - 11-1/2 N.P.T.F. - 1
(female inlet)
Material Inlet
FIGURE 1
