Simpson Falcon F45 Series Manual

The Falcon Series digital indicators are premium
quality 1/8 DIN meters for industrial applications. All
Falcon units feature jumper-selectable decimal point
(internal and on the connector for remote decimal
point) and display scaling, providing wide application
flexibility. In addition, signal input ranges are easy to
change with jumpers on the main board. The Falcon
has a 0.56" bright red LED display for high visibility.

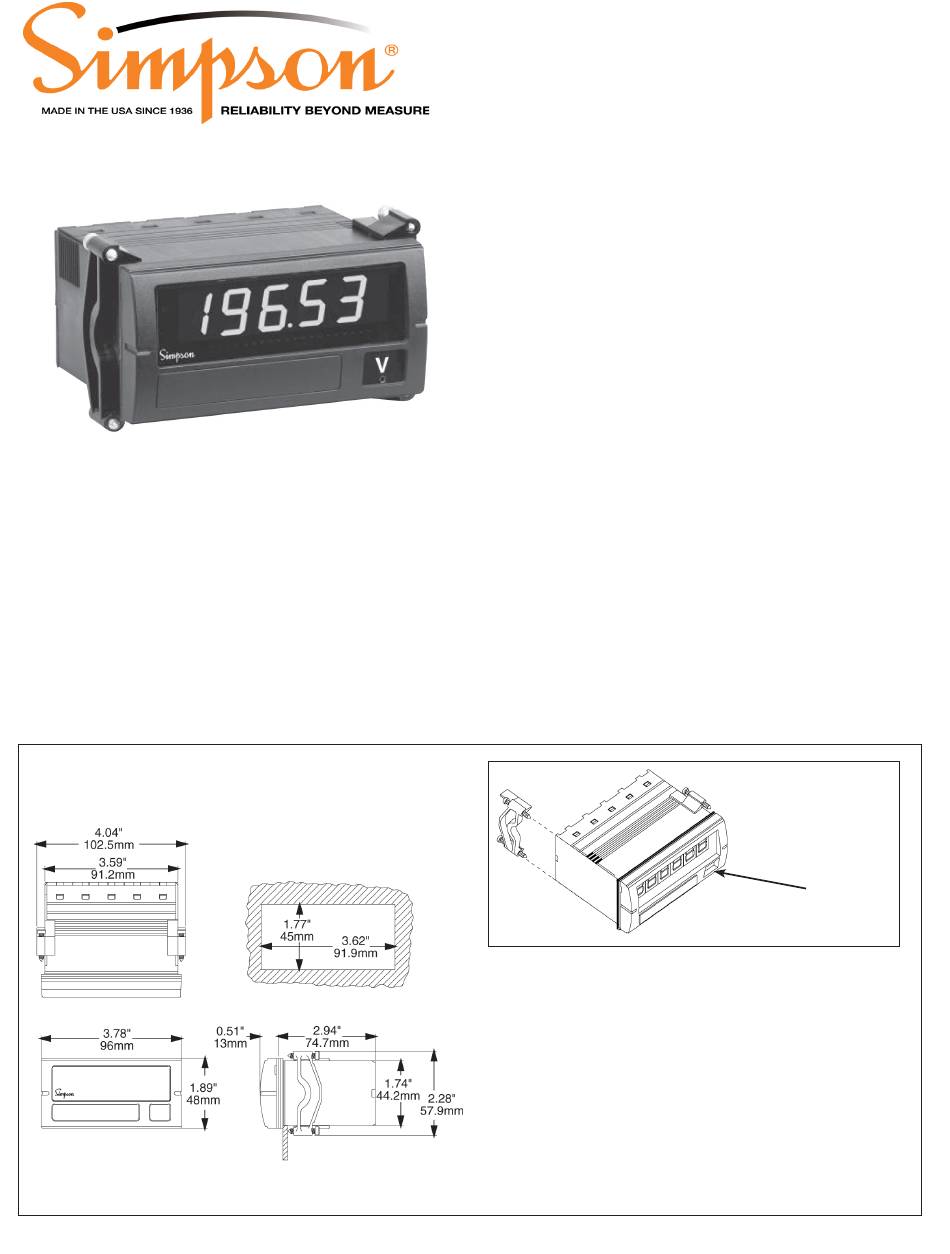

Installation and Panel Cutout
AC Voltage

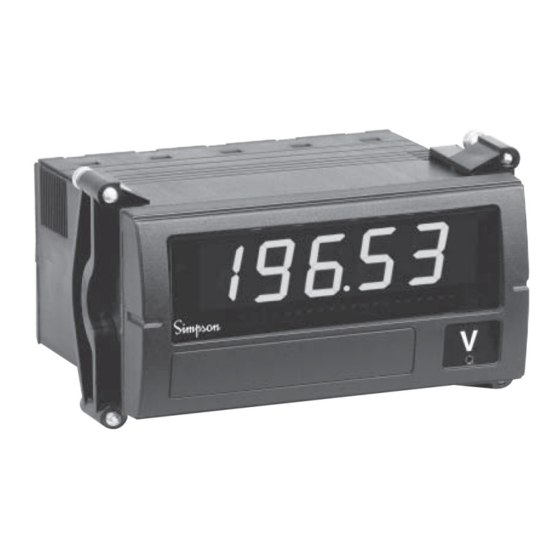

Falcon F45 Series Digital Panel Meter
• Full 4-1/2 Digit, Bright Red 0.56" (14.2mm) Display
• Broad Range Display Scaling
• Short 2.94" (74.7mm) Deep, 1/8 DIN Case
• Screw Terminal Connector for Easy Installation
• Four User-Settable Ranges: 200mV, 2V, 20V, 200V
• Optional Isolated 9-32VDC Power Supply
• Average Responding
Compactly designed for applications requiring mini-
mal rear panel depth, the Falcon fits a standard 1/8
DIN panel cutout (91.9mm x 45mm) and requires less
than 3" behind the panel. A screw terminal connec-
tor is a standard feature for easy wiring of the power
supply and signal input connections.
Mounting Requirements
The Falcon series 1/8 DIN indicators require a panel cutout of 1.77"
(45mm) high by 3.62" (91.9mm) wide. To install the Falcon into a panel
cutout, remove the clips from the side of the meter. Slide the meter
through your panel cutout, then slide the mounting clips back on the
meter. Press evenly to ensure a proper fit.
Engineering Label Placement
If replacement of the engineering unit label is required, place the tip of
a ball-point pen into the small hole at the base of the engineering label
in the bezel. Slide the label up until it pops out. Grasp and remove.
Slide the new label half the distance in, then use the ball-point pen to
slide it down into place.
Engineering Label
