Simpson Falcon F35 Series Manual

Full 3-1/2 Digit, Bright Red 0.56" (14.2mm) Display
Broad Range Display Scaling
Short 2.94" (74.7mm) Deep, 1/8 DIN Case
Screw Terminal Connector for Easy Installation
Three User-Selectable Ranges: 4-20mA, 1-5V, 0-10V
Jumper-Selectable Decimal Point
Optional Isolated 9-32VDC Power Supply
Optional Excitation Output of 12VDC or 24VDC
The Falcon Series digital indicators are premium quality
1/8 DIN meters for industrial applications. All Falcon units
feature jumper-selectable decimal point (internal and on
the connector for remote decimal point) and display scal-
ing, providing wide application flexibility. In addition, signal
input ranges are easy to change with jumpers on the main
board. The Falcon has a 0.56" bright red LED display for
high visibility.

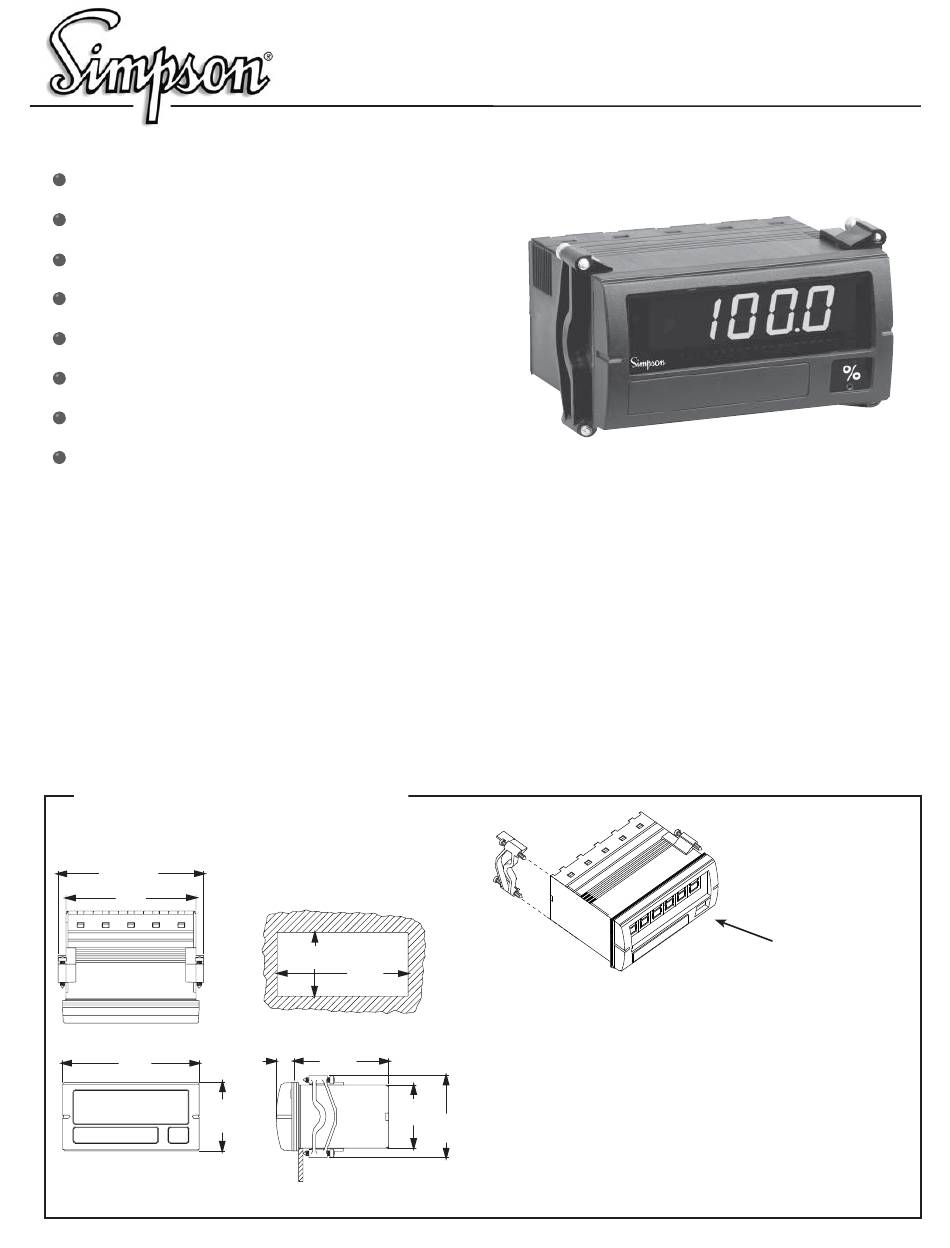

Installation and Panel Cutout

4.04"
102.5mm
3.59"
91.2mm
3.78"
96mm
1.89"
48mm
1.77"
45mm
3.62"
91.9mm
2.94"
0.51"
74.7mm
13mm
1.74"
44.2mm 2.28"

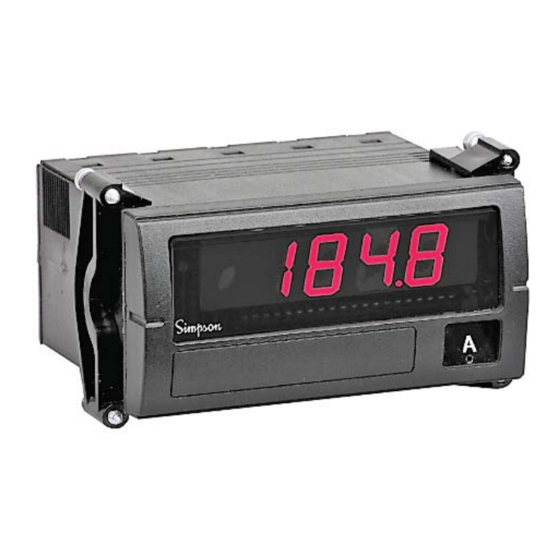

Falcon F35 Series Digital Panel Meter
Compactly designed for applications requiring minimal rear
panel depth, the Falcon fits a standard 1/8 DIN panel cut-
out (92mm x 45mm) and requires less than 3" behind the
panel. A screw terminal connector is a standard feature
for easy wiring of the power supply and signal input con-
nections.

Mounting Requirements

The Falcon series 1/8 DIN indicators require a panel cutout of 1.77"
(45mm) high by 3.62" (92mm) wide. To install the Falcon into a panel cut-
out, remove the clips from the side of the meter. Slide the meter through
your panel cutout, then slide the mounting clips back on the meter. Press
evenly to ensure a proper fit.

Engineering Label Placement

57.9mm
If replacement of the engineering unit label is required, place the tip of a
ball-point pen into the small hole at the base of the engineering label in
the bezel. Slide the label up until it pops out. Grasp and remove. Slide
the new label half the distance in, then use the ball-point pen to slide it
down into place.
DC Process
Engineering Label
