OUTSIDE VIEW

NOTE
Person) while the other person works around the outside of the trampoline (Outside Person).

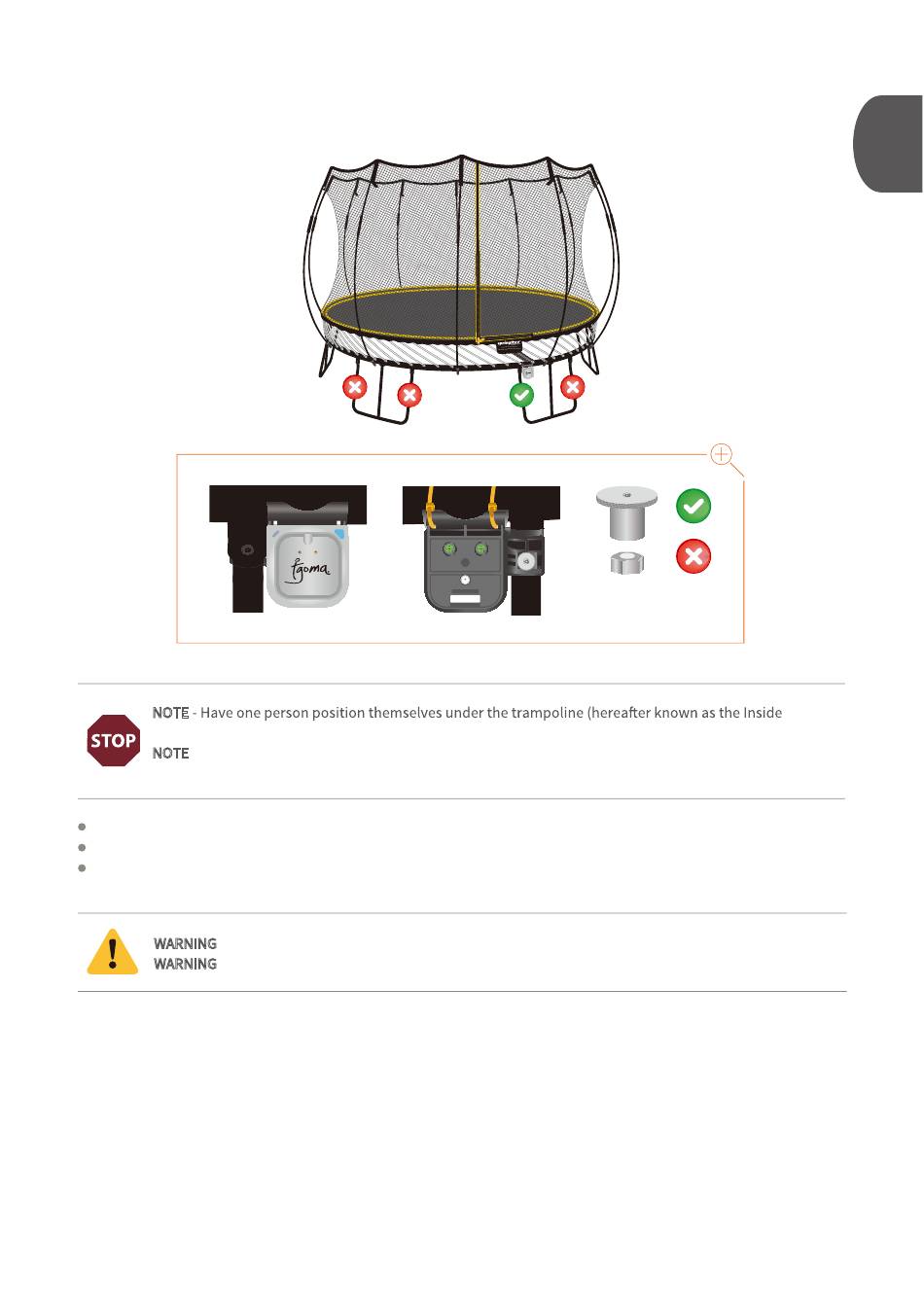

NOTE - Be sure to position the controller at the correct leg position, as indicated. If installed in the wrong
location, you will be unable to complete the following steps correctly.
Inside Person: Locate the nut on the back of the leg shown above. Remove the nut but DO NOT remove the bolt.
Inside Person: Position the controller as shown and fasten with the new nut provided. Tighten with the hex key.
Inside Person: Feed a large cable tie through each of the two holes and around the frame. Rotate the head of the
cable tie so that it is not visible from outside the trampoline, then fasten.
WARNING - Do not remove the bolt from the leg as this could cause serious injury.
WARNING - Do not over tighten the nut. Do not use power driver, torque wrench, or drill.
OUTSIDE VIEW
INSIDE VIEW
