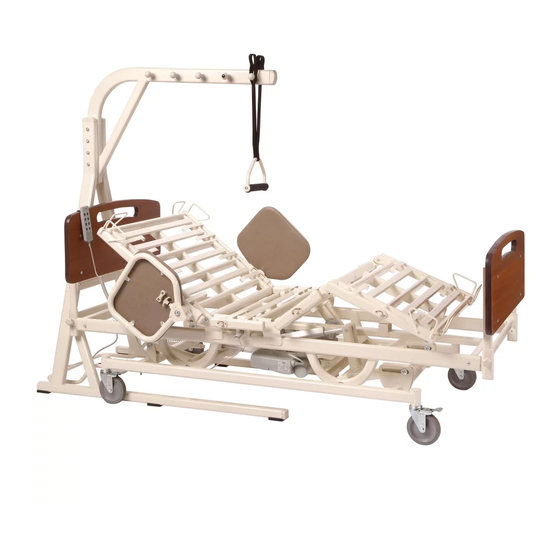

6300 Bariatric Bed
For Panacea 6300 3-Function and Panacea 6300 5-Function beds
Thank you for purchasing a Panacea
entire guide carefully and keep it for future reference. This guide will provide you with instructions, warnings, warranty
information and other important information about your Panacea bed. Share this information with your housekeeping,
nursing and maintenance staff to help ensure the bed is cared for properly.
Panacea
Owner's Manual
Please keep and refer to this Owner's Manual.
6300 Bariatric Bed from Direct Supply
®
1-800-634-7328 DirectSupply.com
®
Equipment & Furnishings
®
. Please read this
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Direct Supply Panacea 6300
Summary of Contents for Direct Supply Panacea 6300
- Page 1 Panacea ® 6300 Bariatric Bed For Panacea 6300 3-Function and Panacea 6300 5-Function beds Owner’s Manual Please keep and refer to this Owner’s Manual. Thank you for purchasing a Panacea 6300 Bariatric Bed from Direct Supply Equipment & Furnishings . Please read this ®...
-
Page 2: Table Of Contents
Table of Contents Introduction ............................. 3 Definitions and Symbols ........................3 Device Description .......................... 3 Warnings ............................ 4-11 Mattress Specifications ......................... 12 Environmental and Electrical Specifications ......................... 13 Directions for Use ......................... 14 Mattress Retainer Adjustment ...................... 15 Headboard and Footboard Installation and Adjustment ...................... -
Page 3: Introduction
Device: Your Panacea 6300 Bariatric Bed. YOU and YOUR: The facility, community, or other person or entity that has purchased the product. WE, US and OUR: Direct Supply Manufacturing, Inc. Device Description Panacea bariatric beds are designed for bariatric residents. These beds are designed for use in clinics, hospitals and rehabilitation centers and for use in long-term healthcare centers. -
Page 4: Warnings
Warnings Read and follow all directions and warnings before using this device. Do not operate this device without first reading and understanding this user manual. Damage or injury may result from improper use of this device. The information contained in this document is subject to change without notice. WARNINGS 1. - Page 5 WARNING This device is only a tool as part of an overall care plan. Failure to comply with all instructions, warnings and precautions, or using the device for a purpose other than the recommended use, could result in bodily injury or death. This device is not designed to replace good caregiving practices, including, but not limited to: •...
- Page 6 Warnings (cont.) • Do not open any actuators, control boxes or pendants. Service is only to be performed by authorized service personnel. If unauthorized service is performed on any components, the warranty is void. • Never allow anyone under the bed at any time. •...
- Page 7 • Do not cover any power cord with rugs, linens, cloths or other products that may cause heat to build up. Heat may build up or the cord may be damaged. • Check surrounding equipment for signs of excessive heat or physical damage. •...
- Page 8 Warnings (cont.) NOTE: Information that appears under the NOTE text gives added information, which helps in understanding the item being described. Product Symbols Symbol Description Symbol Description According to IEC 60417-5840. Change head deck position Type B applied part equipment According to IEC 60529.
- Page 9 Intended Use The Panacea 6300 Bariatric Bed is intended for use within an institutional healthcare environment, Application Environment 3 (i.e. Skilled Nursing, Transitional Care, Rehabilitation Care, Assisted Living). Compliance with the regulations and guidelines as specified by your facility is recommended.
- Page 10 CAUTION • This medical bed is not intended to work with patient lifts other than those specified by Direct Supply Equipment & Furnishings as being compatible. • DO NOT use assist rails as handles for moving the bed.
- Page 11 • Supervision is required when this product is operated by or near children or people with disabilities. • Do not let any limbs or body parts protrude over the side or between bed components, especially when the bed is being moved or operated. •...
-
Page 12: Mattress Specifications
Supply Equipment & Furnishings has indicated are compatible with this bed. Bed Serial Numbers When ordering parts or when contacting Direct Supply Equipment & Furnishings Customer Service Department, please include bed’s model and serial numbers, found on the identification labels. The identification labels are located under the sleep deck on the frame rail below the mattress support platform on either side of the bed. -
Page 13: Environmental And Electrical Specifications
Environmental and Electrical Specifications Item Imperial Metric Overall length, 80" position with wall guard. (X) 95.5" 243 cm Overall length, 80" configuration (X1) 90" 229 cm (with headboards & footboards; no wall guard) Overall width – mobility position** (Z) 38.3" 97.5 cm Mattress deck width with extension to 1st pins 37"... -
Page 14: Directions For Use
• Inspect power supply cords for cuts and/or damage. • Check that actuator cords are connected properly to the controller. If damage is observed during the initial inspection, DO NOT attempt to further assemble or adjust the bed. Contact Direct Supply Equipment & Furnishings for assistance. -
Page 15: Mattress Retainer Adjustment
Mattress Retainer Adjustment Mattress Retainer Installation/Adjustment Mattress retainers are designed to keep the mattress in place on the sleep surface. • Determine size of your mattress. • There are two different sizes of mattress retainers; four narrow retainers for the sides of the bed and two wider retainers for the end of the bed. -
Page 16: Headboard And Footboard Installation And Adjustment
Headboard and Footboard Installation and Adjustment NOTE: A flathead screwdriver is required for initial mounting of headboard and footboard support assemblies. • Using a ⁄ " hex key, bolt the headboard and footboard to the mounting brackets. • Unscrew knobs on each side of support assembly at both ends of the bed frame. •... -
Page 17: Assist Device Assembly
Assist Device Assembly Mount to mattress rail on headboard Mount only between first rung side only of forward mattress rail WARNING: Please take careful note to ensure the correct placement of the handrail. If the rail is placed incorrectly, it may pose an entrapment risk to your resident. Resident entrapment with rails may cause injury or death. -
Page 18: 3-Position Assist Device
3-Position Assist Device • To position the assist device toward the head section, lift hook up and push rail toward the head of the bed. • To position the assist device toward the foot section, lift hook and push rail toward the foot of the bed. •... -
Page 19: Width Extension
Width Extension No tools needed Choose which width the bed needs to be expanded to. This bed has four width settings: 37" (mobility position only), 39", 42" and 48". The width extension expands by using the push button mechanism. • Push the expansion button mechanism in and pull out width extension until you reach the desired width of the deck. -
Page 20: Wall Guard
Wall Guard No tools needed NOTE: To install the Wall Guard, locate the mount on the crossbar under the head of the bed. ➙ • Place the Wall Guard into the holes of the • Place pins on each side of the bar into the mount underneath the head section of the holes to keep the Wall Guard in place. -
Page 21: Bed Functions
Bed Functions Hand Control Operation NOTE: The Hand Control can be plugged into either side of the bed frame. • This pendant can be plugged into the left or right side of the bed for convenience. • The top buttons control the raising and lowering of the head section. •... -
Page 22: Bed Mobilization And Stabilization
Bed Mobilization and Stabilization WARNING Unintended bed movement may occur if the caster locks are left unlocked. Unintended bed movement may lead to property damage or resident injury. Never leave a bed unattended while the caster locks are not engaged. Caster Lock To unlock the bed frame, lift up all To lock the bed frame, push down on all four caster locks with your foot. -
Page 23: Battery Backup
• Battery function should be checked periodically to ensure battery health. • Direct Supply cannot be held responsible for improper backup use. • When a battery is connected to the control box, unplugging the bed from mains power will not switch bed off. - Page 24 Battery Backup (cont.) CAUTION • If improperly performed, equipment or property DAMAGE or resident INJURY is possible during maintenance. • The battery is not a toy for children to play with. Maintenance Notes • Following longer periods of storage, the battery may need to be charged and discharged several times so performance reaches a peak.
-
Page 25: Care And Maintenance
Care and Maintenance Inspections Authorized Accessories • Inspect all fasteners for looseness and wear. WARNING Replace or tighten as necessary. Failure to properly maintain your bed may decrease • Ensure welds do not have cracks, and visually the life expectancy of your product, increase product inspect for stress. -
Page 26: Care And Maintenance
Care and Maintenance (cont.) CAUTION: If improperly performed, equipment or property damage or resident injury is possible during maintenance. Notice To Maintenance Staff • Carry out all adjustment and cleaning procedures specified. • Assembly of this bed and modifications made during the actual service life require evaluation to the requirements of IEC 60601-1 and IEC 60601-2-52. -
Page 27: Servicing
Servicing DANGER SHOCK HAZARD Possible shock hazard may occur if the main power supply cord for the control box is not unplugged from the wall outlet before any maintenance is performed on electrical components. Actuators and Control Box Cord and Socket Identification Bed End Panel (Green) Hand Pendant (Red) Head Section Motor (Black) -
Page 28: Servicing
Servicing (cont.) General information The recommended environment for operation and storage / transportation of the bed is listed below: Operation Storage/Transportation Ambient temperature: 10° ~ 40°C (50° ~ 104°F) -10° ~ 50°C (14° ~ 122°F) Relative humidity range: 30% ~ 75% 30% ~ 75% Atmospheric pressure: 86KPa~ 106Kpa... -
Page 29: End Of Life Disposal
End of Life Disposal • Many components of this product may be recycled. • Please dispose of non-recyclable items properly. This marking indicates this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 30: Troubleshooting
5 minutes does not correct the do not need replacement. To problem, contact Direct Supply reset the fuse, unplug the bed Equipment & Furnishings. for 5 minutes and then plug back in. The bed should be operational. - Page 31 The wall outlet and bed should move slowly. outlet. bed is running off of the at its normal speed. battery backup. If none of these resolve your issue, contact Direct Supply Equipment & Furnishings for additional information. 1-800-634-7328 DirectSupply.com...
-
Page 32: Electromagnetic Emission And Immunity
Guidance and manufacturer’s declaration – Electromagnetic emissions The Panacea 6300 is intended for use in the electromagnetic environment specified below. The customer or the user of the Panacea 6300 should ensure it is used in such an environment. Emissions Test Compliance Electromagnetic environment –... - Page 33 Guidance and manufacturer’s declaration: Electromagnetic immunity The Panacea 6300 is intended for use in the electromagnetic environment specified below. The customer or the user of the Panacea 6300 should ensure it is used in such an environment. Electromagnetic environment -...
-
Page 34: Limited Warranty
Limited Warranty We offer to you, as the original purchaser, a warranty for the Panacea 6300 Bariatric Bed. Our warranty applies for the limited warranty period stated below. If any device or device part listed below is defective in material or workmanship during the applicable limited warranty period, we will repair or replace it at our cost. -
Page 35: Customer Service
Our promise to you is that you will have a convenient and easy ordering experience, receive a quality Panacea 6300 Bariatric Bed, and enjoy outrageous customer service. If you have any questions about the bed you have purchased or would like to request warranty service, please contact: Direct Supply Equipment &... - Page 36 ® ® ™ Direct Supply , Inc. Distributed by Direct Supply Manufacturing, Inc. 6699 N Industrial Road, Milwaukee WI 53223. ® © 2010-2015 Direct Supply Manufacturing, Inc. All Rights Reserved. Direct Supply , Panacea , and all associated logos are the ®...
