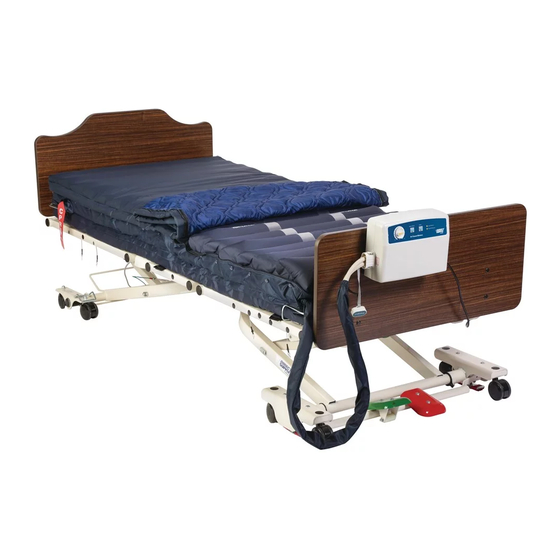

Panacea
®
AIR ELEMENT
MATTRESS
Owner's Manual
Please keep and refer to this Owner's Manual.
Thank you for purchasing a Panacea
Air Element Mattress from Direct Supply Equipment & Furnishings
distributed
®
®
by Direct Supply Manufacturing, Inc. Please read this entire guide carefully and keep it for future reference. This guide
will provide you with instructions, warnings, warranty information and other important information about your mattress.
Share this information with your housekeeping, nursing and maintenance staff to help ensure that the mattress is cared
for properly.
1-800-634-7328 DirectSupply.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Direct Supply Panacea Air Element Mattress
Summary of Contents for Direct Supply Panacea Air Element Mattress
- Page 1 ® ® by Direct Supply Manufacturing, Inc. Please read this entire guide carefully and keep it for future reference. This guide will provide you with instructions, warnings, warranty information and other important information about your mattress. Share this information with your housekeeping, nursing and maintenance staff to help ensure that the mattress is cared for properly.
-
Page 2: Table Of Contents
WARNING: Calls attention to a potential danger that requires correct procedures or practices in order to prevent personal injury. DEVICE: Panacea Air Element Mattress. ® YOU and YOUR: The facility, community or other entity that has purchased the device. WE, US and OUR: Direct Supply Manufacturing, Inc. • Attention. Read the instructions. -
Page 3: Warnings
Warnings Read and follow all directions and warnings before using this device. • WARNING – 1. Failure to comply with all directions and warnings may result in injury or death; use only as directed. 2. This device is not suitable for all individuals. Other devices may be required. 3. -
Page 4: Introduction
Introduction This manual should be used for initial setup of the system and for reference purposes. General Information/Intended Use This system is a high quality, affordable mattress system intended for providing pressure redistribution as part of an overall care plan to help treat and prevent pressure ulcers. Resident- specific assessment could alter your particular usage of this device. -
Page 5: Device Description
Device Description Pump and Mattress System 1. CPR Tags 2. Pump Unit 3. Mattress Unit 4. Quick Connector Pump Unit Front View Rear View 1. Quick Connector Slot 1. Power Switch 2. Front Panel 2. Power Cord 3. Bed Frame Hangers 4. -
Page 6: Installation
Installation Unpack the box and check the package contents for completeness. Package Contents List • Mattress Unit x 1 (may not be included if only Pump Unit is purchased) • Pump Unit x 1 • User Manual x 1 Inspect equipment for damage which may have occurred during shipment. If there is damage, DO NOT USE and please contact your account manager immediately. -
Page 7: Installation
4. Plug the power cord into an electrical outlet with the appropriate voltage. NOTE: The pump unit must be suitable for the local power voltage. 5. Turn the main power switch on pump to the ON position. After you connect power to the pump, you will have to wait at least 30 minutes for the mattress to become fully inflated. -
Page 8: Operations
Operations NOTE: Always read the operating instructions before use. Panel Operations 1. Power Switch The switch is at the right side of the pump. Turn ON/OFF the power, the pump will start/stop operation. 2. Pressure Adjustment Knob The pressure adjustment knob controls the air pressure in the mattress. Turning the knob clockwise will increase the pressure;... - Page 9 4. Low-Pressure Indicator When the mattress is initializing, the Low Pressure LED will illuminate until the appropriate pressure is reached (according to the pressure adjustment knob); this is normal. Otherwise, the Low Pressure LED is a warning, indicating the pressure in the mattress is unusually low. Check to ensure all connections are secured and correctly installed as per the installation instructions.
- Page 10 Operations (cont.) Air Filter Replacement Rear View 1. Open the air filter cap located at the back of the pump. 2. The filter is reusable and can be washed gently with a mild detergent and water. Dry the filter before use. 3.
-
Page 11: Cleaning
Cleaning & Storage Cleaning It is important to clean the device at least weekly as well as before it is used with a new resident in order to help prevent transmission of pathogens. Wipe down the pump unit with a damp cloth presoaked with a mild detergent. Avoid contact with dust and proximity to dusty areas. -
Page 12: Troubleshooting
They should be alternately delivering air when the pump is set at “Alternate” mode. 4. Check the air hoses for kinks or breaks. For replacement, please contact your account manager. If at any time you suspect your device is not operating properly, discontinue use and contact Direct Supply. -
Page 13: Technical Description
Low Air Loss Quick Connectors NOTE: 1. Consult Direct Supply for further technical documents. 2. These specifications are also applicable for other regions operating with the same power supply. 3. The manufacturer reserves the right to modify the specifications without notice. -
Page 14: Grounding Instructions
Grounding Instructions SAVE THESE INSTRUCTIONS This device must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This device is equipped with a cord having a grounding wire with a grounding plug. -
Page 15: Appendix A: Emc Information
Appendix A: EMC Information Guidance and manufacturer’s declaration – electromagnetic emissions This device is intended for use in the electromagnetic environment specified below. The user of this device should make sure it is used in such an environment. Emissions test Compliance Electromagnetic Environment –... -
Page 16: Appendix A: Emc Information
Appendix A: EMC Information (cont.) Guidance and manufacturer’s declaration – electromagnetic immunity This device is intended for use in the electromagnetic environment specified below. The user of this device should make sure it is used in such an environment. Electromagnetic environment – Immunity Test IEC 60601 Test Level Compliance Level... - Page 17 Recommended separation distances between portable and mobile RF communications equipment and this device. This device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of this device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and this device as recommended below, according to the maximum output power of the communications equipment.
-
Page 18: Limited Warranty
Limited Warranty We offer to you, as the original purchaser, a warranty for the Panacea Air Element Mattress. Our warranty applies for the limited warranty period stated below. If any device or device part listed below is defective in material or workmanship during the applicable limited warranty period, we will repair or replace it at our cost. -
Page 19: Customer Service
Our promise to you is that you will have a convenient and easy ordering experience, receive a quality Panacea Air Element Mattress and enjoy outrageous customer service. If you have any questions about the mattress you have purchased or would like to request warranty service, please contact: Direct Supply Equipment &... - Page 20 Distributed by Direct Supply Manufacturing, Inc. 6635 N Industrial Road, Milwaukee, WI 53223. © 2016 Direct Supply Manufacturing, Inc. All Rights Reserved. Direct Supply , Panacea , and all associated logos are the registered ® ® trademarks of Direct Supply, Inc., used under license.
