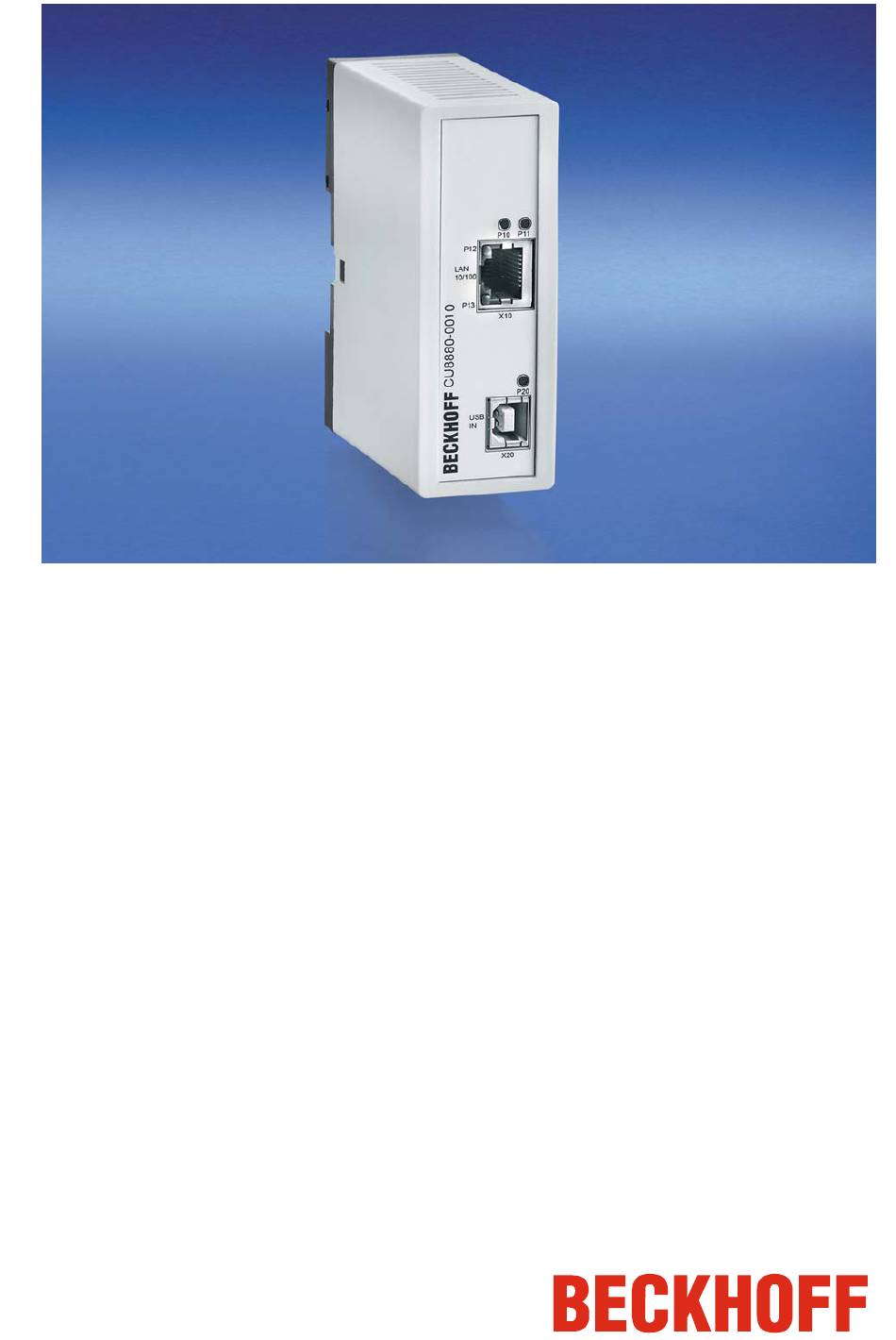

- Page 1 Installation- and Operating instructions for CU8880-0010 Ethernet Controller with USB Input Version: 1.4 Date: 2018-04-12...
-
Page 3: Table Of Contents
Mounting / Unmounting Connecting devices Connecting cables Operating Instructions Configuration Appendix Assembly dimensions Service and Support Beckhoff's branch offices and representatives Beckhoff headquarters Beckhoff Support Beckhoff Service Technical data Approvals for USA and Canada FCC: Federal Communications Commission Radio Frequency Interference Statement... -
Page 4: General Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co.KG. Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH &... -
Page 5: Description Of Safety Symbols
Danger This symbol is intended to highlight risks for the life or health of personnel. This symbol is intended to highlight risks for equipment, materials or the Warning environment. Note This symbol indicates information that contributes to better understanding. CU8880-0010... -
Page 6: Product Description
Ethernet interface at the user’s disposal. In this way, four or more Ethernet interfaces can be implemented, depending on the system configuration. The CU8880-0010 is used for necessary IT communication, so that the respective on-board Ethernet interfaces are available for EtherCAT or real-time Ethernet communication. -
Page 7: Power Supply
The connector are 1 USB port Type B and a RJ45-connector. The pins are described below: USB type B Port (X20) (standard-cable) USB type B Port Signal Data - Data + shield shield RJ 45-Port (X10) (standard CAT5-cable) RJ 45 Port Signal n.c. n.c. n.c. n.c. CU8880-0010... -
Page 8: Led Diagnostics
Status Meaning power supply no power supply connected lights green via USB-Port Ethernet port lights green Ethernet Collision Ethernet port lights yellow Ethernet full duplex Ethernet port lights Ethernet Link Ethernet port Ethernet Speed 10MBit lights Ethernet Speed 100MBit CU8880-0010... -
Page 9: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CU8880-0010... -
Page 10: Mounting / Unmounting
Installation Instructions Mounting / Unmounting The CU8880-0010 can be snapped onto a 35 mm mounting rail conforms to EN 50022. Mounting the Ethernet Just push the unit on the upper side under the rail (figure 1) and snap in Controller... -
Page 11: Connecting Devices
Connecting cables The connections are documented in the section Product Description. When connecting the cables to the CU8880-0010, proceed according to the following sequence: • Switch off all the devices that are to be connected. • Disconnect all the devices that are to be connected from the power supply. -
Page 12: Operating Instructions
Operating Instructions Operating Instructions Configuration The provided CD contains the according configuration software. Note CU8880-0010... -
Page 13: Appendix
The product is characterized by small overall installed size. With a height of approx. 100 mm, the module dimensions exactly match those of the Beckhoff Bus Terminals. Together with the lowered connector surfaces, this means that it can be used in a standard terminal box with a height of 120 mm. -
Page 14: Service And Support
Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com Beckhoff Support Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services: • world-wide support • design, programming and commissioning of complex automation systems •... -
Page 15: Technical Data
FCC: Canadian Notice FCC Approval for Canada This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. CU8880-0010...
