Dynojet Power Commander V Installation Instructions Manual page 5

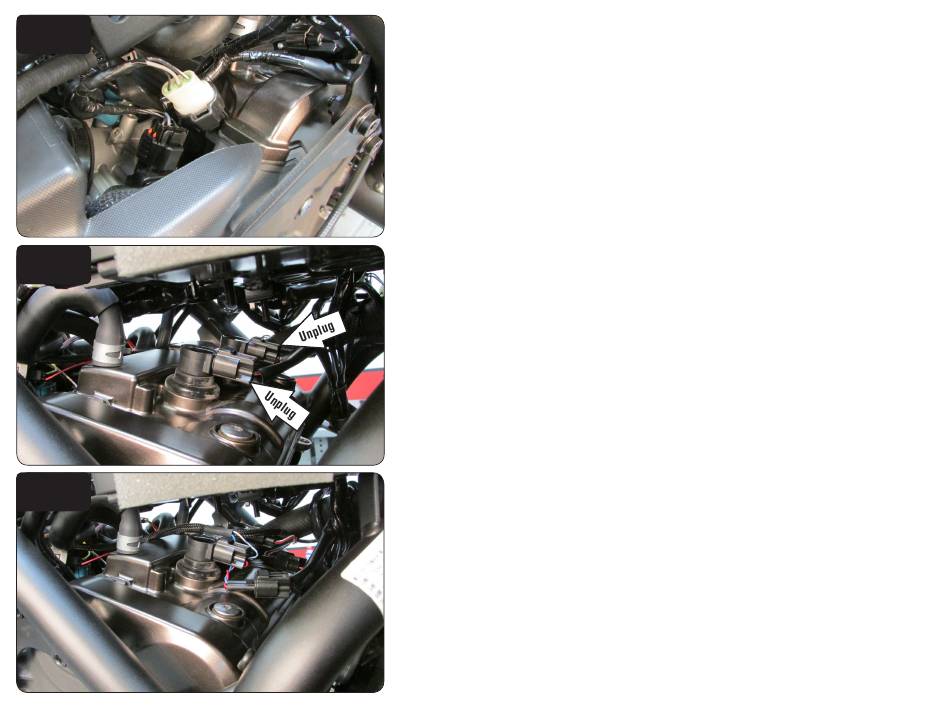

FIG.G
FIG.H
FIG.J
22-065 www.powercommander.com
10 Plug the PCV wiring harness in-line of the TPS and the stock wiring harness
(Fig. G).
11 Route the rest of the PCV wiring harness forward towards the top of the
engine where the Ignition Coils are located.
12 Unplug the stock wiring harness from both of the Ignition Coils (Fig. H).
13 Plug the PCV wiring harness in-line of the Ignition Coils and the stock wiring
harness (Fig. J).
The pair of PCV leads with GREEN colored wires go to the left cylinder coil
stick (#1); and the pair with BLUE colored wires go to right cylinder coil stick
(#2).
14 Route the last pair of connections on the PCV wiring harness out to the left
side of the bike below the voltage regulator/rectifier.
15-18 Yamaha FZ-07/MT-07 - PCV F/I - 5
