System overviews

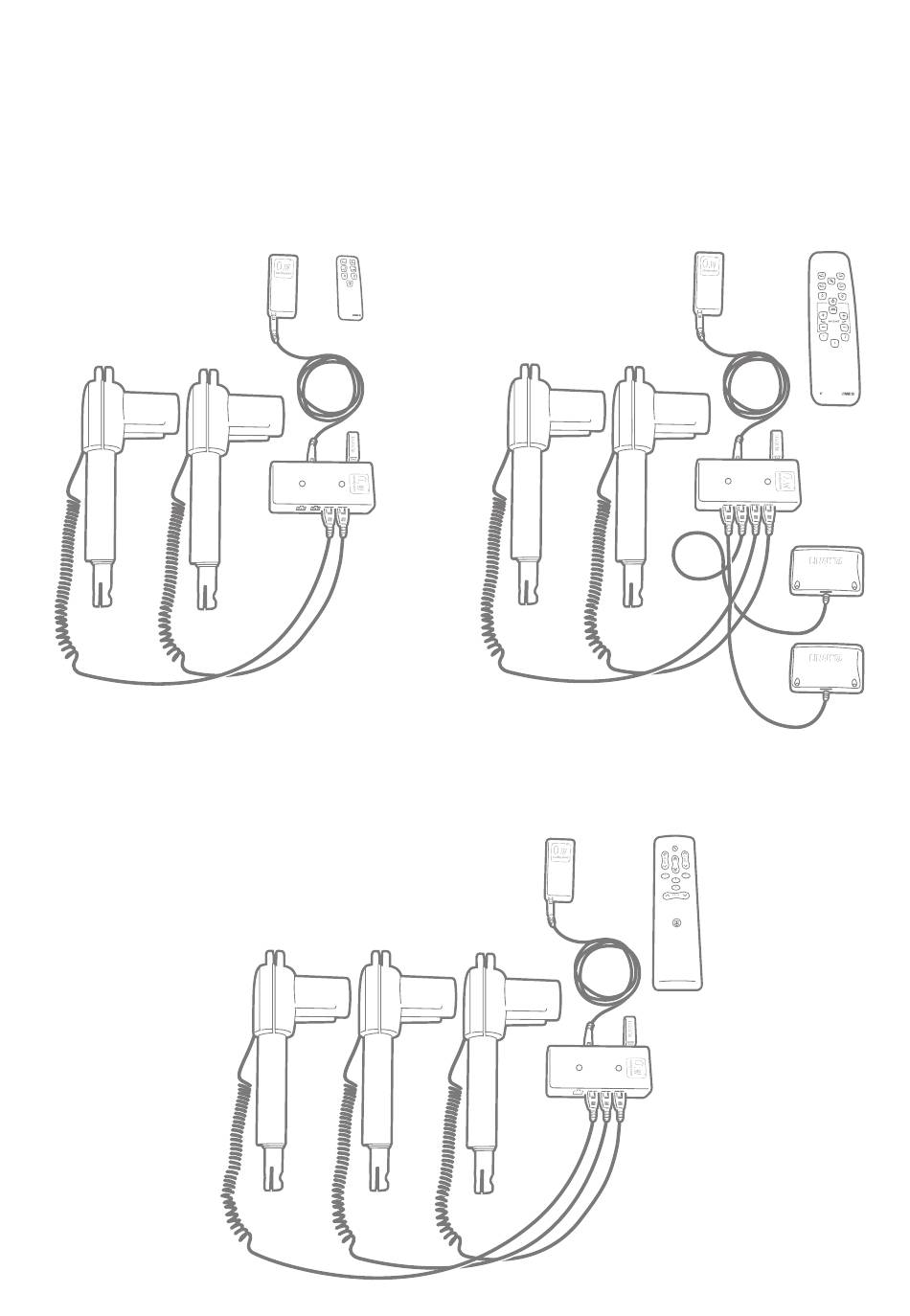

Back/leg adjustment system
A typical single actuator system for two adjustments
consists of 1 x CBH Advanced (2 + 2 channels),
2 x LA27 / 31 / 40, 1 x SMPS and a simple hand control
(A Bluetooth hand control requires a Bluetooth
®
plugged into the CBH)
Back/leg+neck/foot/hi-lo adjustment system
A typical single actuator system for three adjustments consists of 1 x CBH Advanced (3 channels), 3 x LA27 / 31 / 40, 1 x SMPS
and a hand control (A Bluetooth
Adapter
®
hand control requires a Bluetooth
®
Page 14 of 32
Back/leg+massage adjustment system
A typical single actuator system for two adjustments and
massage consists of 1 x CBH Advanced (2 + 2 channels),
2 x LA27 / 31 / 40, 2 x massage motors, 1 x SMPS and
an advanced hand control (A Bluetooth
requires a Bluetooth Adapter plugged into the CBH)
®
Adapter plugged into the CBH)
®
hand control
®
