Cable Relief - Linak CBH Advanced User Manual

Cable relief:

The CBH features a cable relief option. By using these small holes on the CBH, you can tie the DC cables from the SMPS unit to
the control box by use of standard cable ties. It is recommended to use the cable relief especially if the control box is exposed
to movement.
The CBH is a ZERO™ control box
A hallmark of the CBH ZERO platform is the very low power consumption in standby mode, saving energy and money.
The low standby consumption is standard..

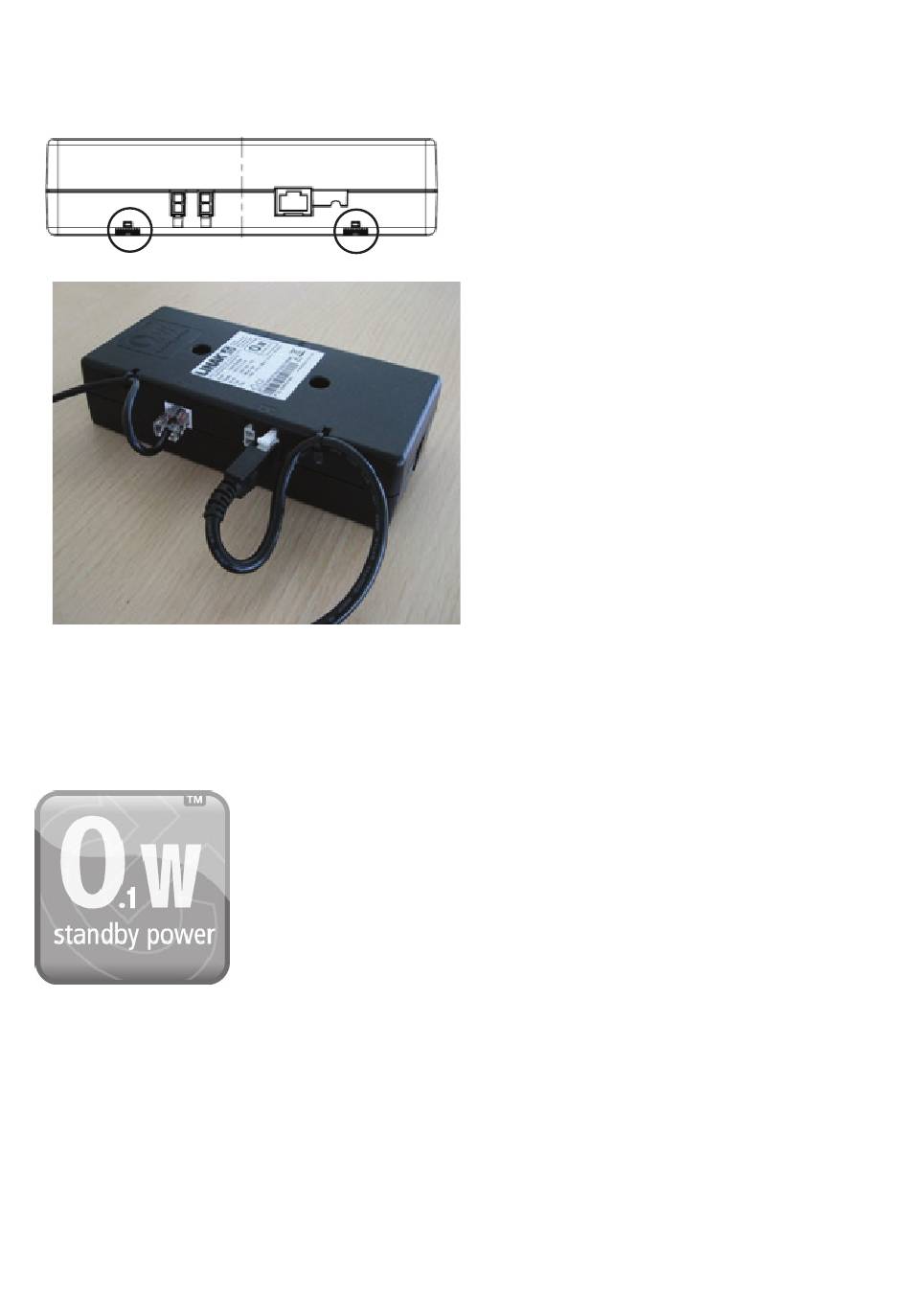

The circles illustrate the small holes on the control box
where a standard cable tie can be mounted and the DC
cable from the SMPS/Handset cable can be fixed.
The extra cable tie length is just cut off when the cables
have been fixed.
Page 13 of 32
