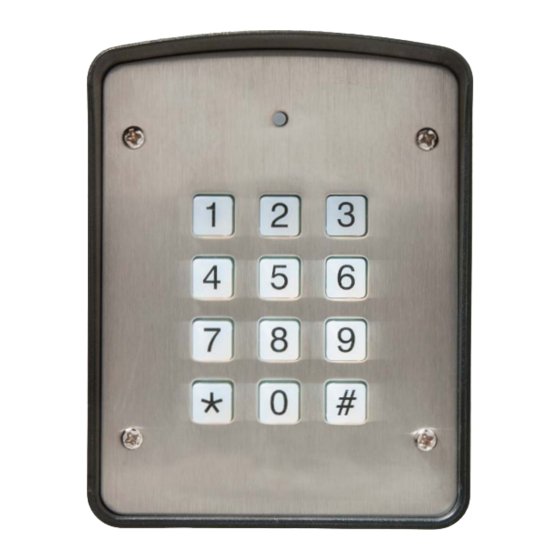

- Page 1 DOLKWP300318 Dual Frequency 300/318 MHz Keypad v.2.22.17...
- Page 3 STEP 1: Set Jumper S1 4 Sec 2 Sec Determine the operating frequency you 1 Sec 3 State/9 PORT 2 State/10 PORT will use on your keypad installation. This S2 Function Config keypad can operate at either 300 MHz or 318 MHz. At 300 MHz the keypad is S1 Frequency Selection compatible with all 300 MHz receivers with 10 dip switches.
- Page 4 STEP 4: Programming the Master Code 1. Press 2. Enter the “Master Code” (default is 3. Press the button 4. Enter for change code 5. Enter for “Master Code” 6. Enter the new “Master Code” (Must be 4 digits) 7. Press the button.
- Page 5 DOLKWP300318 OPERATION Return to Default Settings 1. Disconnect the power by removing the battery. 2. Press the , and keys simultaneously. 3. Re-connect the battery to power up the keypad. 4. Release the , and keys. Note: The keypad is returned to the default “Master Code”...
- Page 6 TO ADD RELAY OPTIONS: *Relay and power supply NOT INCLUDED. KEYPAD 9-24 VDC 4 Sec POWER SUPPLY 2 Sec 1 Sec 3 State/9 PORT 2 State/10 PORT S2 Function Config S1 Frequency Selection 1 2 3 4 CON1 CON1 +12V CON2 RELAY MODULE...
- Page 7 WARRANTY: The warranty period of Transmitter Solutions keypads is twenty-four (24) months. This warranty shall begin on the date the keypad is manufactured. During the warranty period, the product will be repaired or replaced (at the sole discretion of Transmitter Solutions) if the product does not operate correctly due to a defective component. ...
- Page 8 2480 South 3850 West, Suite B Salt Lake City, UT 84120 (866) 975-0101 • (866) 975-0404 fax www.transmittersolutions.com...
