Summary of Contents for Datavideo MS-2850

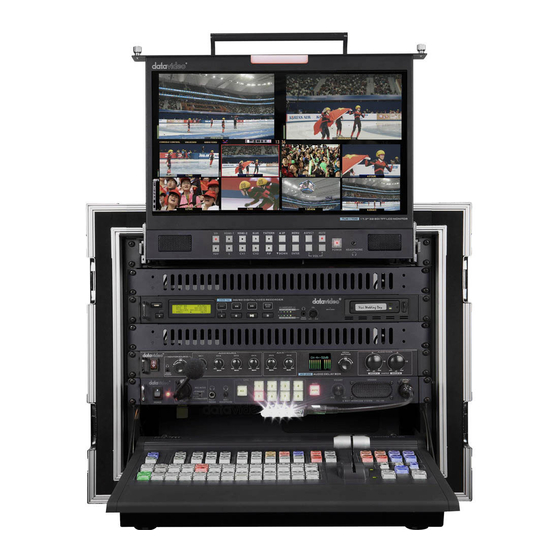

- Page 1 HD/SD 8/12-CHANNEL MOBILE VIDEO STUDIO MS-2850 Instruction manual...
-
Page 2: Table Of Contents
Service & Support ........................15 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. -
Page 3: Fcc Compliance Statement
The MS-2850 is HEAVY – approximately 70Kg. Two or more people are required to move this unit. The MS-2850 should be always moved and placed in an upright position; do not place or try to move the unit in any other position as damage or injury could result. There are two sets of carry handles on either side of the case, please use these handles to safely share the weight between the people lifting the unit. -
Page 4: Warranty
When the product exhibits a distinct change in performance, indicating a need for service. Warranty Standard Warranty • Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase. • The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty. -
Page 5: Introduction
Introduction Datavideo MS-2850 HD/SD mobile video studio series is a ready to go solution. It is designed around the SE-2850 8-channel (upgradeable to 12 channels) broadcast-quality video switcher. It is perfect for outdoor events, conferences, education places of worship and many more applications. Producing superb quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy-to-use effects, such as dual picture in picture, downstream keyer (DSK), CG and logo insertion. -
Page 6: Compatible Video Standards
Compatible Video Standards • • 1920 x 1080i 50 720 x 576i 50 (PAL) • • 1920 x 1080i 59.94 720 x 480i 59.94 (NTSC) • 1920 x 1080i 60 • 1920 x 1080p 25 • 1920 x 1080p 29.97 •... -
Page 7: Installation
Transport & Placement The MS-2850 is heavy – approximately 70Kg – Do not attempt to lift or move it on your own. A minimum of two people are required to lift or move this product. There are two carry handles on either side of the product, please use these handles to safely share the weight between the people lifting the unit. -
Page 8: Setting Up The Tlm-170Lm - 17" Lcd Monitor
Setting up the TLM-170LM - 17” LCD monitor Follow the steps below to set up the LCD monitor: Unfasten the two silver screws on the Left and Right of the TLM-170LM drawer handle. Using the handle pull out the TLM-170LM monitor until it clicks into place at the end of its rail. Now bring the LCD panel into an upright viewing position. -
Page 9: Front Panel
MS-2850A Front Panel TLM-170LM : 17” HD / SD monitor which slides out from a 1 RU storage position. Connections for SDI / HD-SDI, and HDMI. Display overlays for Timecode, Center Mark, 4:3 aspect ratio, Cinema Zone and embedded audio peak meter (SDI / HDMI only). -
Page 10: Front Panel
ITC-100 talk back breakout panel. Rack panel for connection of ITC-100 belt pack cables (5pin XLR). PD-6: Power Distribution center for non- Datavideo production kit whilst on location or in studio. RP-51: 1U Half Rack panel with Switcher’s SDI PGM outputs and HDMI Multi-view output 2. -
Page 11: Front Panel
MS-2850C Front Panel TLM-170LM : 17” HD / SD monitor which slides out from a 1 RU storage position. Connections for SDI / HD-SDI and HDMI. Display overlays for Timecode, Center Mark, 4:3 aspect ratio, Cinema Zone and embedded audio peak meter (SDI / HDMI only). -
Page 12: Front Panel
(5pin XLR). RP-64: 1U rack mount panel with 8 CVBS output ports. PD-6: Power Distribution center for non-Datavideo production kit whilst on location or in studio. AD-200 Main Unit: Audio Delay Unit. Delay Program audio by up to 3 seconds. -
Page 13: Powering On
For more information on the PD-2A or PD-6 please refer to its manual in the binder. If a product within the MS-2850 fails to start after the PD-2A or PD-6 is switched on please locate the on/off switch for that product which has not yet started. -
Page 14: Dimensions
Weights The MS-2850 is heavy – approximately 70Kg – Do not attempt to lift or move it on your own. A minimum of two people are required to lift or move this product. There are two carry handles on either side of the product, please use these handles to safely share the weight between the people lifting the unit. -
Page 15: Service & Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to DATAVIDEO WORLDWIDE OFFICES common questions, support requests or contact your local office below.
