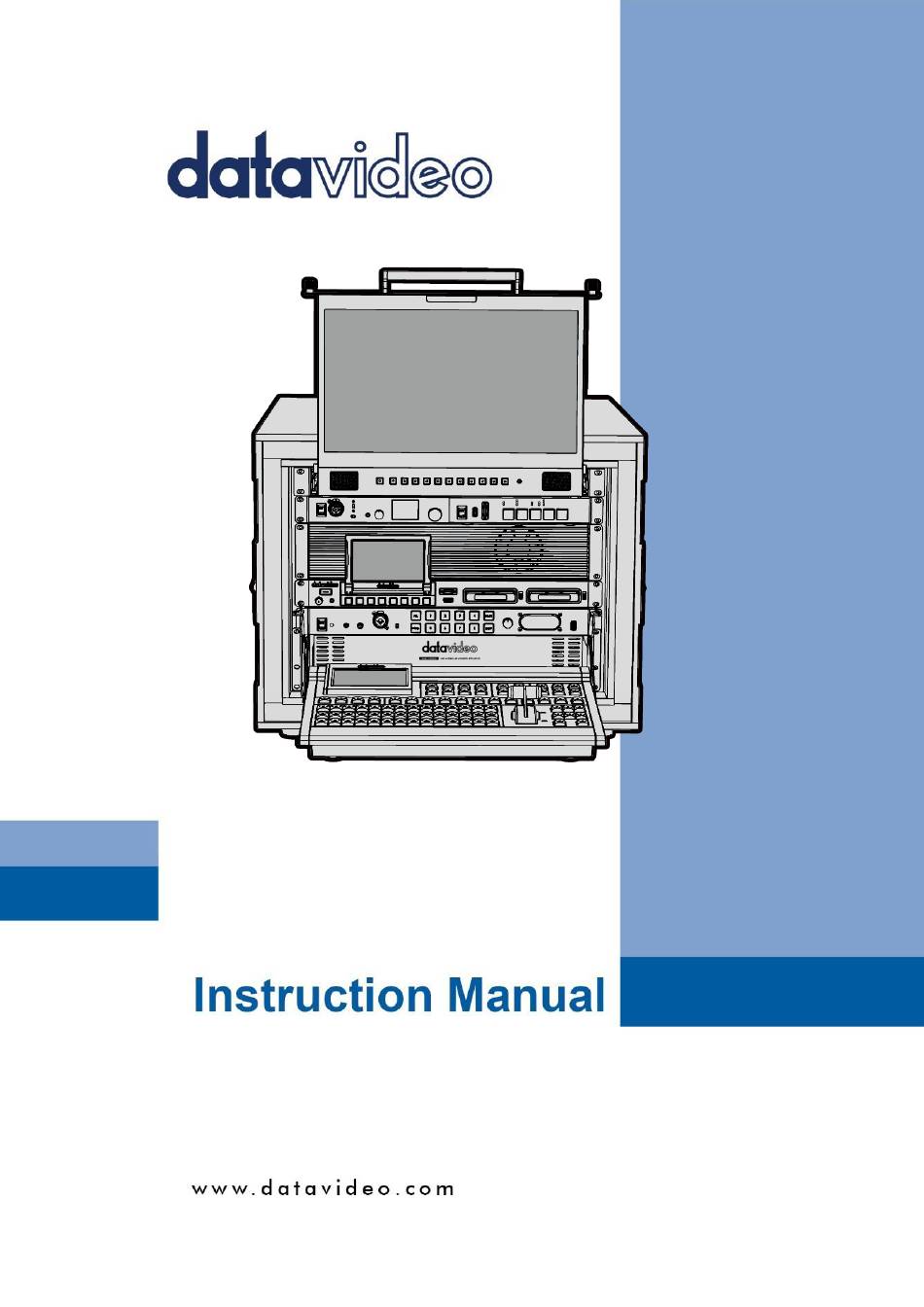

- Page 1 4K 8-Channel Mobile Video Studio MS-4000...
- Page 2 Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.
- Page 3 The MS-4000 is HEAVY – approximately 65 Kg. Two or more people are required to move this unit. The MS-4000 should be always moved and placed in an upright position; do not place or try to move the unit in any other position as damage or injury could result. There are two sets of carry handles on either side of the case, please use these handles to safely share the weight between the people lifting the unit.
- Page 4 Warranty Standard Warranty Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase. The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
- Page 5 Introduction Datavideo MS-4000 4K mobile video studio series is a ready to go solution. It is designed around the SE- 4000 8-channel broadcast-quality video switcher. It is perfect for outdoor events, conferences, education, places of worship and many more applications. Producing superb quality pictures with versatile input/output configurations, the SE-4000 also has powerful, easy-to-use effects, such as dual picture in picture, downstream keyer (DSK), CG and logo insertion.
- Page 6 System Diagram...
- Page 7 Transport & Placement The MS-4000 is heavy – approximately 70Kg – Do not attempt to lift or move it on your own. A minimum of two people are required to lift or move this product. There are two carry handles on either side of the product, please use these handles to safely share the weight between the people lifting the unit.
- Page 8 Setting up the TLM-170KM – 17” LCD monitor Follow the steps below to set up the LCD monitor: Unfasten the two silver screws on the Left and Right of the TLM-170KM drawer handle. Using the handle pull out the TLM-170KM monitor until it clicks into place at the end of its rail. Now bring the LCD panel into an upright viewing position.
- Page 9 MS-4000 Front Panel TLM-170KM: 17” 4K monitor which slides out from the topmost 1 RU slot. Features include Connections for 12G-SDI and HDMI video sources, Screen Markers (Center Marker, Aspect Marker and Safety Marker), Timecode Display Overlay, Scan Mode, Aspect Ratio Selection, Check Field,...
- Page 10 For more information about the PD-2A/4A please refer to its manual in the binder. If a product within the MS-4000 fails to start after the PD-2A/4A is switched on please locate the on/off switch for that product which has not yet started.
- Page 11 Weights The MS-4000 is heavy – approximately 65 Kg – Do not attempt to lift or move it on your own. A minimum of two people are required to lift or move this product. There are two carry handles on either side of the product, please use these handles to safely share the weight between the people lifting the unit.
- Page 12 Service & Support www.datavideo.com/product/MS-4000 Datavideo Technologies Co., Ltd. All rights reserved 2020 Jul-03.2024 Ver.: E1...
