Summary of Contents for Lutron Electronics EMF-828

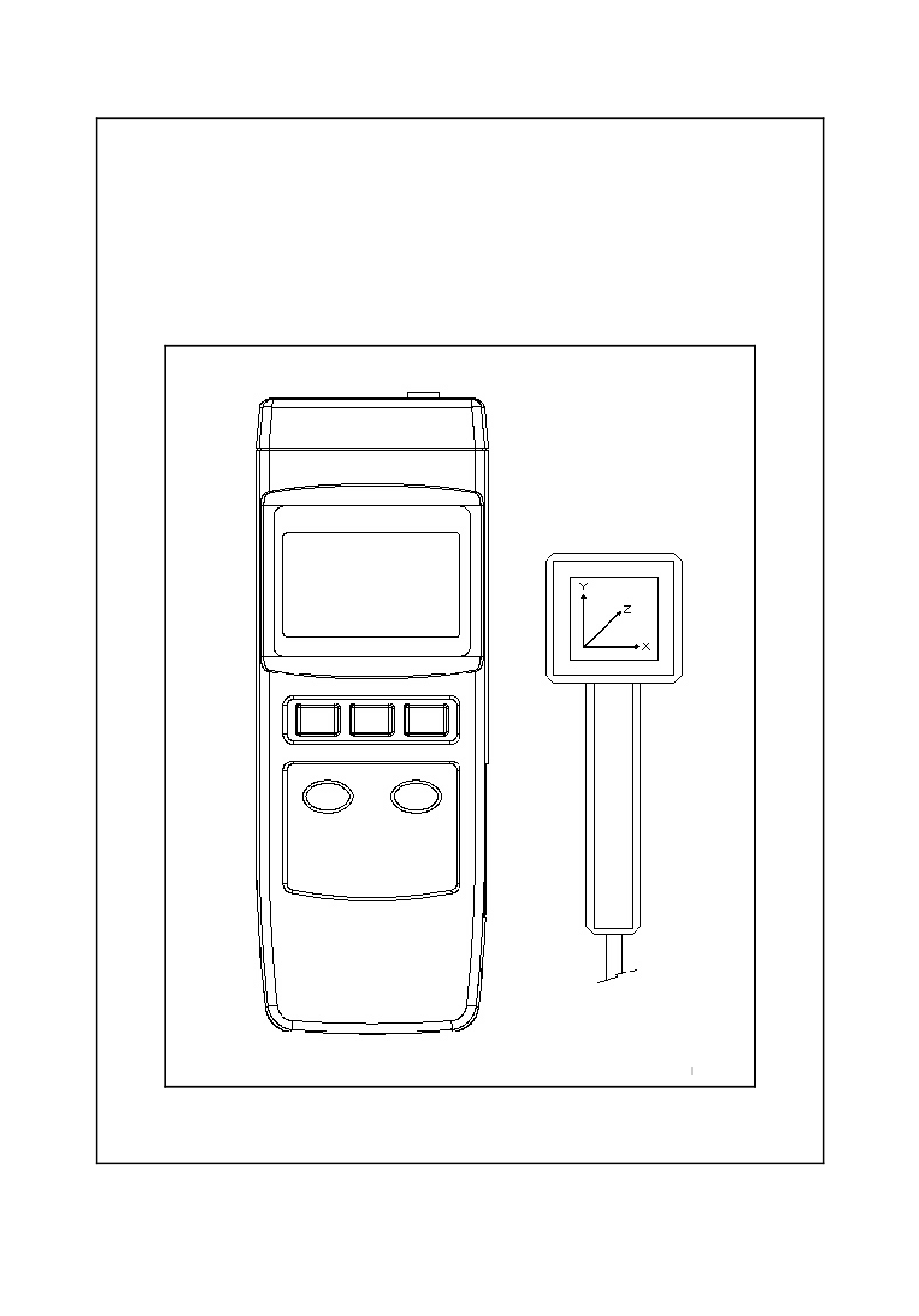

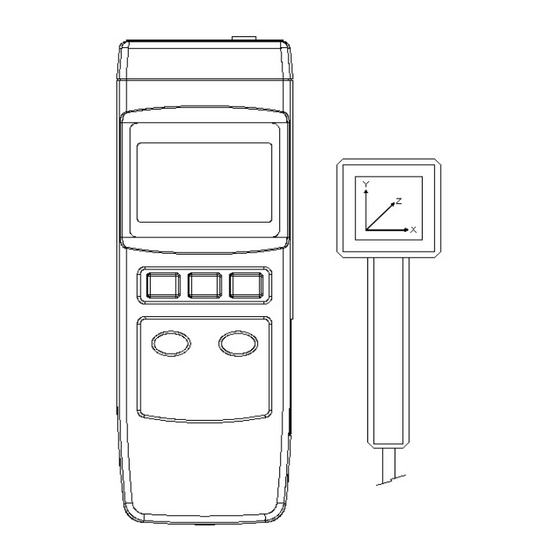

- Page 1 Three axis ( X, Y, Z ) electromagnetic field measurement 3 D EMF TESTER Model : EMF-828...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURES............... 1 2. APPLICATIONS............2 3. CAUTION OF ELECTROMAGNETIC FIELD EXPOSURE.............. 2 4. SPECIFICATIONS............. 3 5. FRONT PANEL DESCRIPTION........5 5-1 Display.............5 5-2 Power button........... 5 5-3 Hold button............5 5-4 XYZ axis select button........5 5-5 Unit button............5 5-6 Range button........... 5 5-7 Battery compartment/Cover...... -
Page 3: Features
1. FEATURES * Three axis ( X, Y, Z direction ) electromagnetic field measurement. * The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, electrical appliances and industrial devices. * Wide measuring ranges, 3 ranges of 20 micro Tesla, 200 micro Tesla &... -
Page 4: Applications
2. APPLICATIONS This EMF tester is specifically designed to determine the magnitude of electromagnetic field radiation generated by power lines, computer's monitor, TV sets, video machinery and many other similar devices. 3. CAUTION OF ELECTROMAGNETIC FIELD EXPOSURE Claims by some scientists that long term exposure to electromagnetic field may be the cause of childhood leukemia &... -
Page 5: Specifications
4. SPECIFICATIONS Display LCD, 3 1/2 digits. LCD size : 55 mm x 47 mm. Max. indication 1999 counts. With display units. micro Tesla : Range / Resolution 20 micro Tesla/0.01 micro Tesla 200 micro Tesla/0.1 micro Tesla 2000 micro Tesla/1 micro Tesla mili-Gauss : 200 mili-Gauss/0.1 mili-Gauss 2,000 mili-Gauss/1 mili-Gauss... - Page 6 Over-input Display shows " 1 " . Sampling Time Approx. 0.4 second. Battery DC 9 V battery (006P, 6F22). Power Current Approx. DC 2.7 mA. Operating Temp. 0 to 50 ( 32 to 122 ℃ ℉ Operating Less than 85 %RH. Humidity Weight 460 g/1.01 LB (including battery).
-
Page 7: Front Panel Description
5. FRONT PANEL DESCRIPTION Fig. 1 5-1 Display 5-2 Power button 5-3 Hold button 5-4 XYZ axis select button 5-5 Unit button 5-6 Range button 5-7 Battery compartment/Cover 5-8 Stand 5-9 Probe input socket 5-10 Probe plug 5-11 Probe handle 5-12 Probe sensing head... -
Page 8: Measuring Procedure
6. MEASURING PROCEDURE 1) Power ON the meter by pushing the " Power button " ( 5-2, Fig. 1 ). 2)Select the desired unit ( micro Tesla or mili-Gauss ) by pushing the " Unit button " ( 5-5, Fig. 1 ). 3) Use the "... -
Page 9: Recommendation
7. RECOMMENDATION It is recommended to measure the presence of the electromagnetic field inside and outside of your home and business locations regularly. As "hot spots" are detected by the EMF tester, re-arrangement of the living and working areas is lightly recommended.
