Summary of Contents for Lutron Electronics RCB-220V
- Page 1 RCCB CHECKER ( 220 V ) Residual Current Circuit Breaker Checker Model : RCB-220V...
- Page 2 TABLE OF CONTENTS 1. FEATURES..............1 2. GENERAL SPECIFICATIONS.......... 1 3. FRONT PANEL DESCRIPTION........2 3-1 Input Socket for Checker........2 3-2 Display LEDs : L-PE, L-N, N-PE and test....2 3-3 Test Button (triggers test current pulse )....2 3-4 Phase Polarity Select Switch........2 3-5 Rotary Switch for Tripping Current......
- Page 3 1. FEATURES * It is used for quick checking of the pin assignment for the ACV outlet as well as for verification of the RCCB ( Residual Current Circuit Breaker ) the 5 rated tripping current settings of 10 mA, 30 mA, 100 mA, 300 mA and 500 mA.

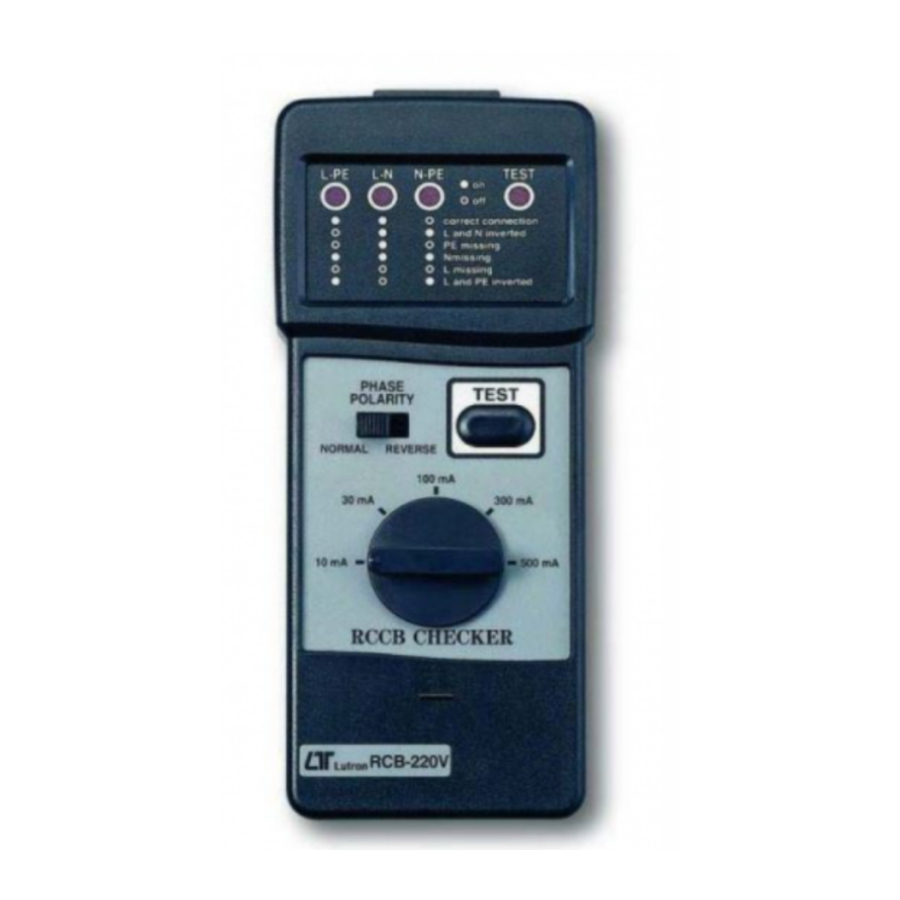

- Page 4 Operating Less than 80% RH. Humidity Weight 200 g/0.44 LB. Dimension 180 x 72 x 32 mm Accessories Instruction manual......1 PC Included Power cable with Plug..... 1 PC 3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Input Socket for Checker 3-2 Display LEDs : L-PE, L-N, N-PE and test 3-3 Test Button (triggers test current pulse) 3-4 Phase Polarity Select Switch 3-5 Rotary Switch for Tripping Current...
- Page 5 4. MEASURING PROCEDURE 4-1 Checking the ACV outlet pin assignment a) Connect " End Plug for Power Cord "(3-7, Fig. 1) to the " Input Socket for Checker "(3-1, Fig. 1) b) Plug in the " ACV Plug for Power Cord "(3-6, Fig. 1) to the ACV outlet.
- Page 6 4-2 Residual Current Circuit Breaker Test a) Proceed as above 4-1. b) If the LED display as following, it means the condition of the " L and N inverted ". L-PE N-PE Under this condition you may inverse conductors " N " and "...
- Page 7 5. MEASURING CONSIDERATION Only use the RCCB checker in measuring circuits with voltages lower than 263 ACV. As to prolong life and safe operation, for the range of 500 mA tripping current setting, please wait approx. 10 seconds between each test 9512-RCB-220V...
