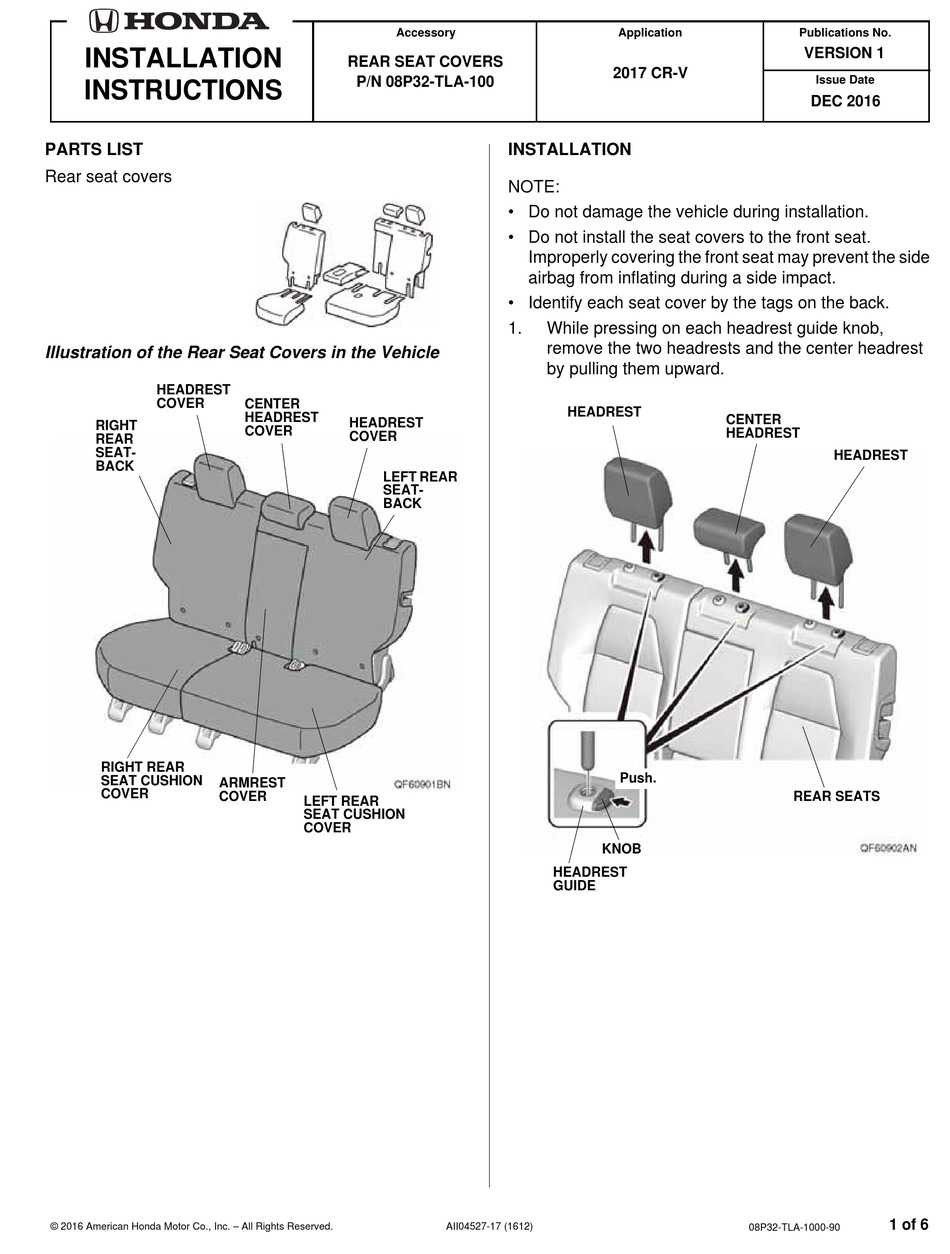

INSTALLATION
INSTRUCTIONS
PARTS LIST
Rear seat covers
Illustration of the Rear Seat Covers in the Vehicle
HEADREST
COVER
RIGHT
REAR
SEAT-
BACK
RIGHT REAR
SEAT CUSHION
ARMREST
COVER
COVER
© 2016 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
REAR SEAT COVERS
P/N 08P32-TLA-100
CENTER
HEADREST
HEADREST
COVER
COVER
LEFT REAR
SEAT-
BACK
LEFT REAR
SEAT CUSHION
COVER
Application
2017 CR-V
INSTALLATION
NOTE:
• Do not damage the vehicle during installation.
• Do not install the seat covers to the front seat.
Improperly covering the front seat may prevent the side
airbag from inflating during a side impact.
• Identify each seat cover by the tags on the back.
1.
While pressing on each headrest guide knob,
remove the two headrests and the center headrest
by pulling them upward.
HEADREST
Push.
KNOB
HEADREST
GUIDE
AII04527-17 (1612)
Publications No.
VERSION 1
Issue Date
DEC 2016
CENTER
HEADREST
HEADREST
REAR SEATS
1 of 6
08P32-TLA-1000-90
Advertisement
Related Manuals for Honda 08P32-TLA-100
Summary of Contents for Honda 08P32-TLA-100
-
Page 1: Installation Instructions
BACK LEFT REAR SEAT- BACK RIGHT REAR Push. SEAT CUSHION ARMREST COVER COVER REAR SEATS LEFT REAR SEAT CUSHION COVER KNOB HEADREST GUIDE 1 of 6 © 2016 American Honda Motor Co., Inc. – All Rights Reserved. AII04527-17 (1612) 08P32-TLA-1000-90... - Page 2 2 HEADREST SEAT-BACK GUIDES RIGHT REAR COVER SEAT-BACK COVER Insert. RIGHT REAR SEAT-BACK 4 FASTENERS RIGHT REAR SEAT-BACK (Fold down.) RIGHT REAR SEAT-BACK COVER 2 of 6 AII04527-17 (1612) © 2016 American Honda Motor Co., Inc. – All Rights Reserved.
- Page 3 Secure the right rear seat cushion cover to the right RIGHT REAR rear seat-back cover with four fasteners as shown. SEAT 10. Raise the right rear seat-back. RIGHT REAR SEAT CUSHION 3 of 6 © 2016 American Honda Motor Co., Inc. – All Rights Reserved. AII04527-17 (1612)
- Page 4 LEFT REAR SEAT-BACK COVER LEFT REAR 4 FASTENERS 2 FASTENERS SEAT-BACK LEFT REAR SEAT- 4 of 6 AII04527-17 (1612) © 2016 American Honda Motor Co., Inc. – All Rights Reserved.
- Page 5 16. Raise the left rear seat-back. Fit the left rear seat cushion cover onto the left rear seat cushion. LEFT REAR LEFT REAR SEAT SEAT CUSHION CUSHION COVER 5 of 6 © 2016 American Honda Motor Co., Inc. – All Rights Reserved. AII04527-17 (1612)
- Page 6 19. Secure the left rear seat cushion cover to the left rear seat-back cover with four fasteners as shown. 20. Raise the left rear seat-back. 21. Install each headrest to the rear seats. 6 of 6 AII04527-17 (1612) © 2016 American Honda Motor Co., Inc. – All Rights Reserved.
