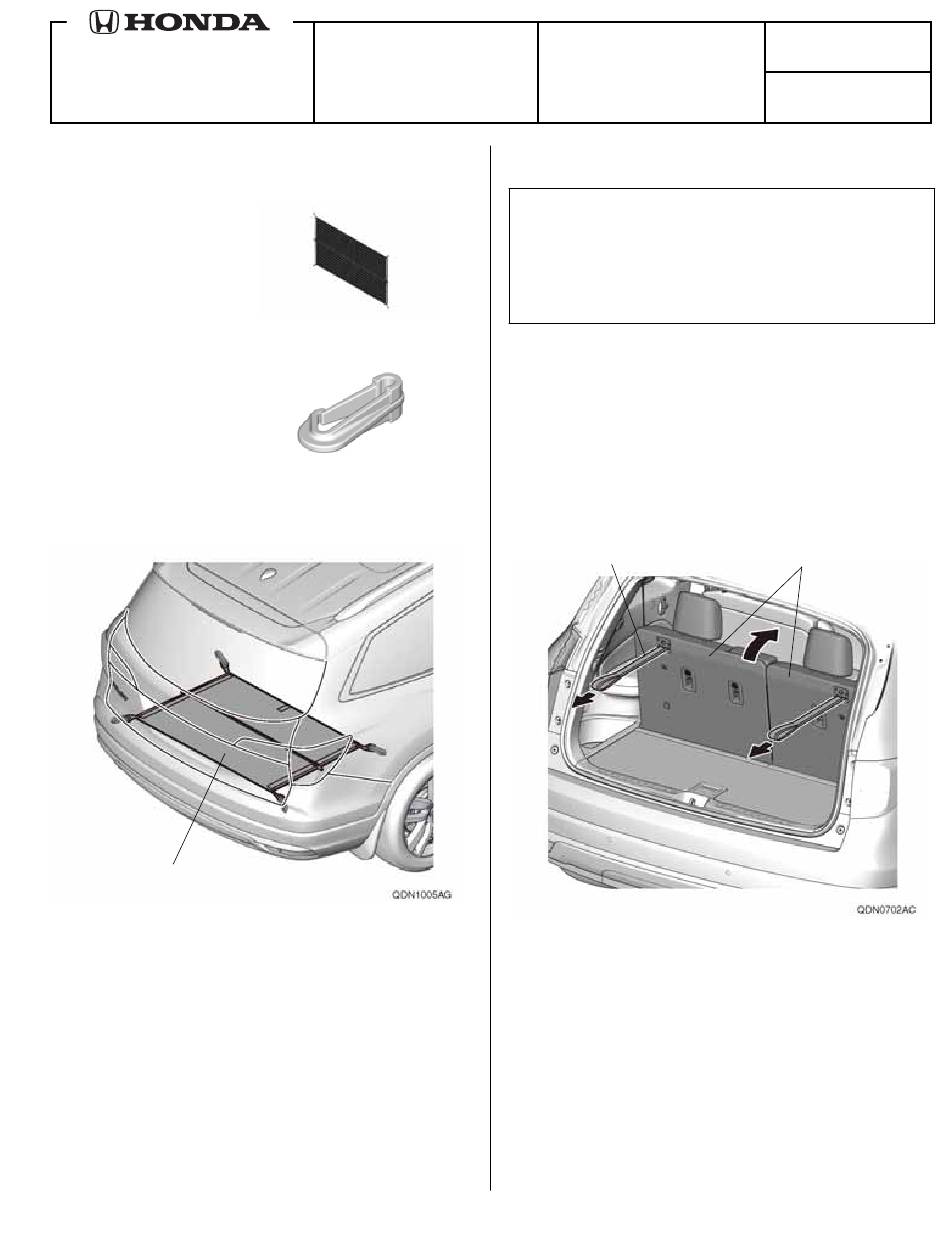

INSTALLATION
INSTRUCTIONS

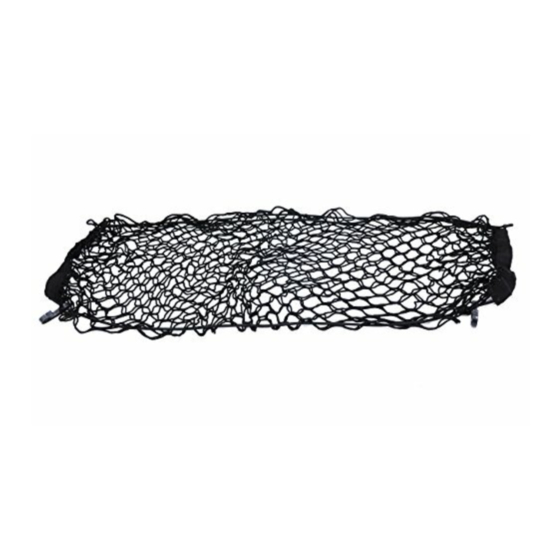

PARTS LIST
Cargo net
4
Snaps
Illustration of the Cargo Net in the Vehicle
CARGO NET
© 2015 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
CARGO NET
P/N 08L96-TG7-100
INSTALLATION
Customer Information: The information in this
installation instruction is intended for use only by skilled
technicians who have the proper tools, equipment, and
training to correctly and safely add equipment to your
vehicle. These procedures should not be attempted by
"do-it-yourselfers."
NOTE: Be careful not to damage the body.
Installing the Cargo Net
The cargo net can be installed in two positions.
Horizontal Position:
• Pull each strap, and fold down the left and right third
row seats.
AII01913-12 (1506)
Application
2016 PILOT
2 STRAPS
(Pull.)
08L96-TG7-1000-90
Publications No.
VERSION 1
Issue Date
JUN 2015
THIRD ROW SEATS
(Fold down.)
1 of 3
