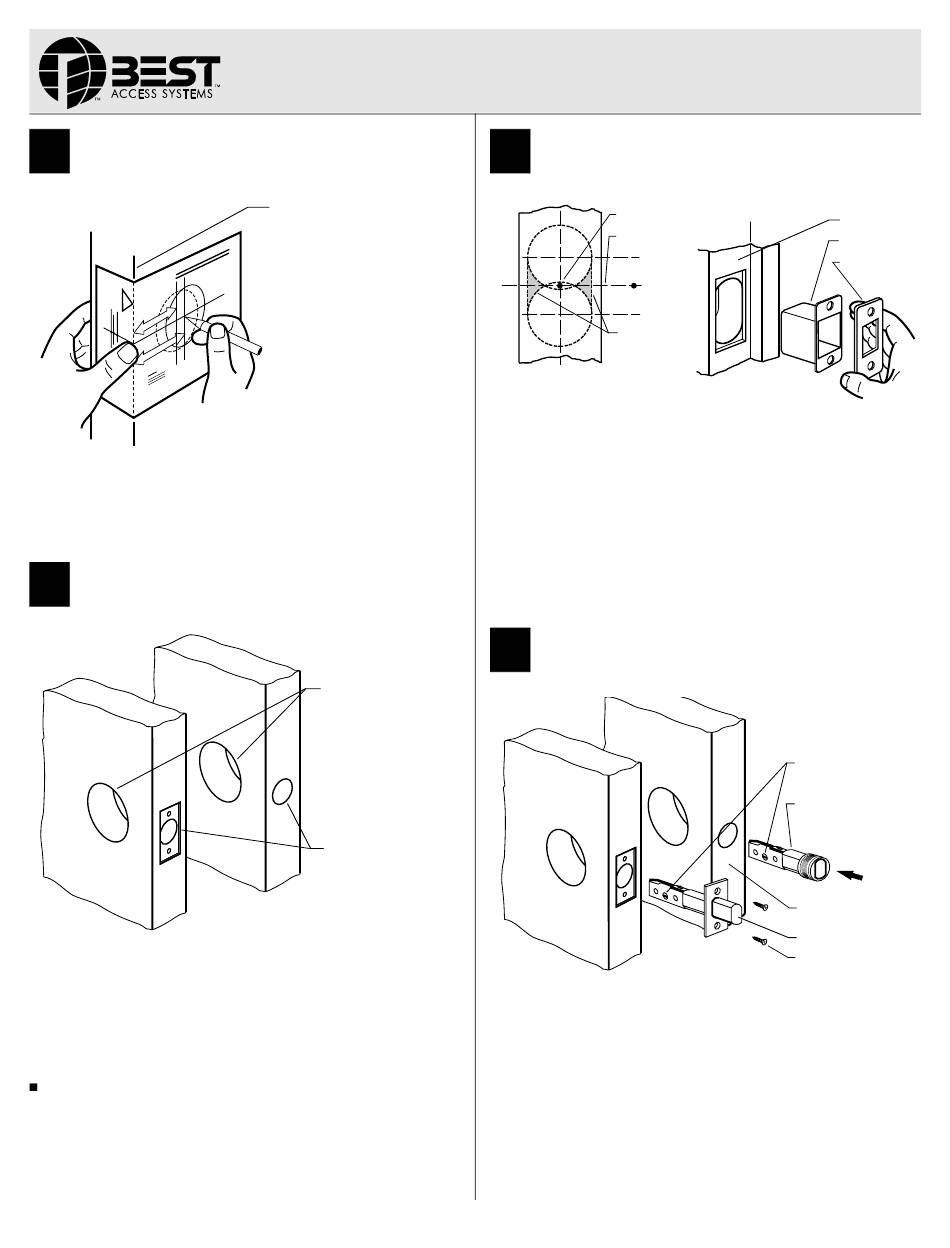

BEST ACCESS SYSTEMS 82T Installation Instructions

1
Center punch the drill points
Figure 1 Positioning and marking with the template
1 Place the template at the desired height, on the high side of the door
bevel.
2 Tape the template to the door.
3 Center punch the drill points.
2
Bore two holes
Figure 2 Holes for standard and drive-in deadbolts
1 Bore a 2 1/8" diameter hole. To avoid splintering a wood door, bore
the hole from both sides of the door.
2 Drill a 1" diameter hole from the edge of the door that intersects the
2 1/8" hole.
For deadbolts with faceplates
Using the deadbolt faceplate as a guide, mortise the edge of the
door to recess the faceplate.
T56100/Rev B 1816786 ER-7991-19 May 2000
Installation Instructions
for 82T–83T Deadbolt Locks
High side of the
door bevel
2 1/8" diameter hole
1" diameter hole
BEST ACCESS SYSTEMS
3
Install strike plate
Figure 3 Installing the strike
1 Center punch the jamb directly opposite the bolt hole in the door.
See Figure 3.
2 Drill two 1" diameter holes, located 5/16" above and below the cen-
ter punch to a depth of 1 1/8".
Note: For S1 strike plates only, drill two additional 1" diameter holes
located 15/16" above and below the center punch. Clear out the mate-
rial between the holes.
3 Using the strike as a guide, mortise the jamb and install the strike
box and strike plate as shown in Figure 3.
4
Install deadbolt assembly
Figure 4 Installing the standard and drive-in deadbolts
For standard deadbolts
1 Insert the standard deadbolt with the slotted spindle hole at the bot-
tom of the assembly as shown in Figure 4.
2 Secure the standard deadbolt to the door with the faceplate screws.
For drive-in deadbolts
1 Make sure the drive-in deadbolt is in the retracted position.
2 Insert the deadbolt into the door with the slotted hole at the bottom
of the assembly. See Figure 4.
Indianapolis, Indiana
Center punch
Height line
5/16"
5/16"
Clear out
Drive-in deadbolt
Edge of door
Standard deadbolt
Faceplate screws
Jamb
Strike box
Strike plate
Slotted spindle hole
Drive in
