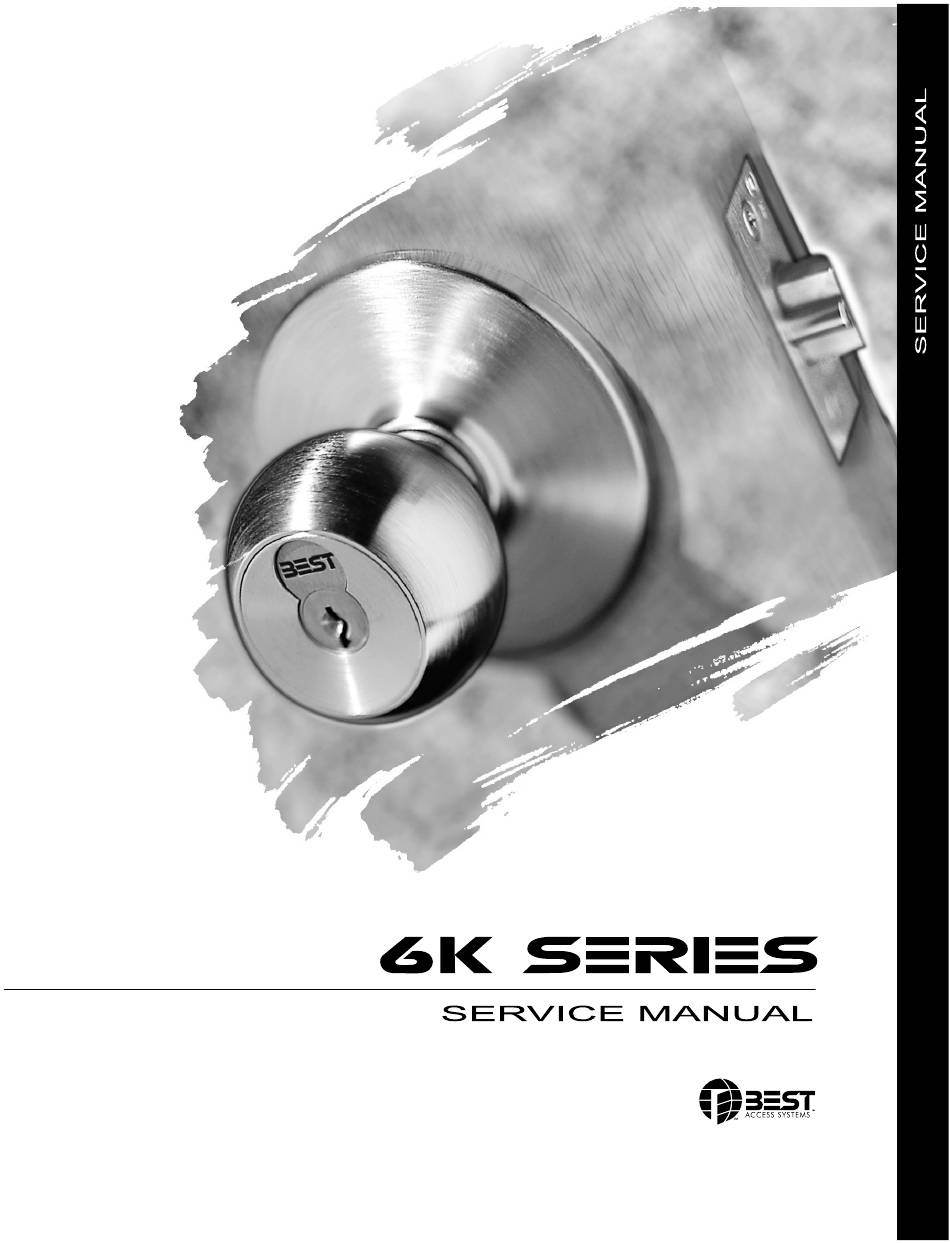

BEST ACCESS SYSTEMS 6K Series Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6K Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEST ACCESS SYSTEMS 6K Series

Summary of Contents for BEST ACCESS SYSTEMS 6K Series

  • Page 2 Please call your BEST distributor or Stanley Security Solutions, Inc., Best Access Systems at (317) 849-2250 if you see any errors or have any questions. No part of this manual and/or databases may be reproduced or transmitted...

  • Page 3: Table Of Contents

    E function—service station lock (ANSI F92) 2–9 L function—privacy lock (ANSI F76) 2–10 LL function—hospital privacy 2–11 N function—passage lock (ANSI F75) 2–12 P function—patio lock (ANSI F77) 2–13 R function—classroom lock (ANSI F84) 2–14 Y function—exit lock 2–15 6K Series Service Manual...
  • Page 4 Replacing the inside rose and rose liner 3–7 Replacing the outside rose and liner assembly 3–8 Replacing the lock chassis assembly 3–9 Lubricating the core 3–10 Aligning the chassis and trim 3–11 Troubleshooting 3–12 A–1 NSTALLATION NSTRUCTIONS B–1 NDEX 6K Series Service Manual...

  • Page 5: Figures

    Reinstalling the inside button assembly 3–5 Removing the bearing 3–6 Reinstalling the bearing 3–6 Removing the inside rose and rose liner 3–7 Reinstalling the inside rose and rose liner 3–8 Removing the outside rose and liner assembly 3–8 6K Series Service Manual...
  • Page 6 Figures Reinstalling the outside rose and liner assembly 3–9 Engaging the retractor in the latch 3–10 Engaging the retractor in the latch 3–11 viii 6K Series Service Manual...

  • Page 7: Getting Started

    ETTING TARTED NTRODUCTION The 6K Series Service Manual contains essential information to help you maintain your 6K Series Lock. ERTIFICATIONS AND STANDARDS The locks comply with ANSI A156.2, Series 4000 ■ Grade 2 standards. The locks are listed by Underwriter’s Laboratories ■...

  • Page 8: Technical Support

    Template for 6K Dummy Trim T80944 ECHNICAL SUPPORT Support When you have a question about the 6K Series Lock, your first resource services for help is the 6K Series Service Manual. If you cannot find a satisfactory answer, contact your local BEST Representative.
  • Page 9 UNCTIONS AND ARTS ISTS The following pages contain function descriptions for all 6K Series Locks. This chapter also includes exploded diagrams that show all field serviceable mechanical parts, diagrams of trim and other miscellaneous parts, and function conversion information. 6K Series Service Manual...

  • Page 10: Functions And Parts Lists

    ■ inside button is pushed in but not rotated closing the door when ■ the inside button is pushed in but not rotated Inside knob is always unlocked 2–2 6K Series Service Manual...

  • Page 11: Functions And Parts Lists

    Outside knob unlocked by: inside knob ■ inside slotted button ■ when rotated counterclockwise outside key ■ closing the door when ■ the inside button is pushed in but not rotated Inside knob is always unlocked 6K Series Service Manual 2–3...

  • Page 12: Non-Keyed Functions

    ■ Outside knob unlocked by: inside knob ■ closing the door ■ Inside knob is always unlocked 1DT–Single dummy trim This lock is a single, surface-mounted knob for an inactive door or a non-latching door. 2–4 6K Series Service Manual...

  • Page 13: Special Functions

    ■ inside knob pushed in and rotated ■ counterclockwise outside key ■ Inside knob is always closing the door ■ unlocked Inside knob is always unlocked Functions ANSI No. Function by ANSI designation F109 6K Series Service Manual 2–5...

  • Page 14: Exploded Diagrams And Parts Lists

    XPLODED DIAGRAMS AND PARTS LISTS — (ANSI F109) FUNCTION ENTRANCE LOCK Item Part No. Qty. Description (see page 2–19) Button knob A80050 Turn button assembly (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80105 AB function chassis (see page...
  • Page 15 — (ANSI F82) FUNCTION ENTRANCE LOCK Item Part No. Qty. Description (see page 2–19) Button knob A80052 Push button assembly (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80105 AB function chassis (see page 2–18) Rose and rose liner assembly (see page...

  • Page 16: D Function-Storeroom Lock (Ansi F86)

    — (ANSI F86) FUNCTION STOREROOM LOCK Item Part No. Qty. Description (see page 2–19) Plain knob (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80102 D function chassis (see page 2–18) Rose and rose liner assembly (see page 2–19) Keyed knob...

  • Page 17: E Function-Service Station Lock (Ansi F92)

    — (ANSI F92) FUNCTION SERVICE STATION LOCK Item Part No. Qty. Description (see page 2–19) Button knob A80051 Slotted button assembly (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80105 AB function chassis (see page 2–18) Rose and rose liner assembly...

  • Page 18: L Function-Privacy Lock (Ansi F76)

    — (ANSI F76) FUNCTION PRIVACY LOCK Item Part No. Qty. Description (see page 2–19) Button knob A80052 Push button assembly (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80105 AB function chassis (see page 2–18) Rose and rose liner assembly A80053...

  • Page 19: Ll Function-Hospital Privacy

    — FUNCTION HOSPITAL PRIVACY Item Part No. Qty. Description (see page 2–19) Button knob A80050 Push button assembly (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80105 AB function chassis (see page 2–18) Rose and rose liner assembly A80054 Turn button assembly...

  • Page 20: N Function-Passage Lock (Ansi F75)

    — (ANSI F75) FUNCTION PASSAGE LOCK Item Part No. Qty. Description (see page 2–19) Plain knob (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80171 N function chassis (see page 2–18) Rose and rose liner assembly (see page 2–19) Plain knob...

  • Page 21: P Function-Patio Lock (Ansi F77)

    — (ANSI F77) FUNCTION PATIO LOCK Item Part No. Qty. Description (see page 2–19) Button knob A80053 Push button assembly (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80105 AB function chassis (see page 2–18) Rose and rose liner assembly (see page...

  • Page 22: R Function-Classroom Lock (Ansi F84)

    — (ANSI F84) FUNCTION CLASSROOM LOCK Item Part No. Qty. Description (see page 2–19) Plain knob (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80106 R function chassis (see page 2–18) Rose and rose liner (see page 2–19) Keyed knob...

  • Page 23: Y Function-Exit Lock

    — FUNCTION EXIT LOCK Item Part No. Qty. Description (see page 2–19) Plain knob (see page 2–18) Rose A80041 Chassis screw (see page 2–18) Rose liner B80048 Bearing † B80107 Y function chassis B54794 Y function rose assembly † If you are replacing a chassis, order one trim ring (part number B80004) in addition to the chassis, and indicate the finish.

  • Page 24: Function Conversion

    LL outside button assembly ■ ■ ■ † ■ † (see page 2–19) Button knob ■ ■ (see page 2–19) Keyed knob ■ ■ ■ † ■ † B80004 Bearing ■ ■ A80170 Throw member † Requires two. 2–16 6K Series Service Manual...

  • Page 25: Trim Parts

    ANSI plastic strike box ‡ 6KS3 A53773 ANSI strike A18724 Strike screw † Includes one A53761 strike, two A25359 strike screws, and one B25640 strike box. ‡ Includes one A53773 strike and two A18724 strike screws. 6K Series Service Manual 2–17...

  • Page 26: Roses And Rose Liners

    Part No. Qty. Description B80010 Small rose C80014 Small liner B80108 Small outside rose and liner assembly B80009 Large rose C80013 Large liner B80109 Large rose and liner assembly C & D A80041 Through-bolt screw 2–18 6K Series Service Manual...

  • Page 27: Knobs And Throw Member

    Figure 2.15 Throw member and spacer Throw member part list Item Part No. Qty. Description † A80170 Throw member 1882120 50 Spacer † For information about cores and keys, see the Core and Key Service Manual. 6K Series Service Manual 2–19...

  • Page 28: Dummy Trim

    Part No. Qty. Description C80018 Round plain knob or not shown C80020 Tulip plain knob B80024 Small rose or not shown B80023 Large rose A25359 Mounting screw B80119 Small hub assembly or not shown B80118 Large hub assembly 2–20 6K Series Service Manual...

  • Page 29: Latches And Latch Tube Sleeve

    Drive-in latch not shown B80090 2 3/8″ Semi-automatic latch not shown B80091 2 3/4″ Semi-automatic latch † Specify finish. ‡ Includes the latch and two A25359 latch screws. \ Use only for B function replacements. 6K Series Service Manual 2–21...

  • Page 30: Tools

    Part No. Description A25341 Knob keeper tool KD325 A01514 Strike plate locating pin KD315 1350393 Faceplate marking chisel (1 1/8″ × 2 1/4″ ) 1487975 Faceplate marking chisel (1″ × 2 1/4″ ) not shown KD312 2–22 6K Series Service Manual...

  • Page 31: Boring Jig Kit

    2 1/8″ diameter chassis hole bit assembly KD318 A54085 1″ diameter drill bit assembly † Adaptor for 3/8″ drill chuck 1–6 KD304A N/A Boring jig kit † Can only be ordered as part of the KD304A boring jig kit. 6K Series Service Manual 2–23...
  • Page 32 Functions and Parts Lists 2–24 6K Series Service Manual...

  • Page 33: Service And Maintenance

    Replace knobs 3–3 Replace inside roses and rose liners 3–7 Replace outside rose and liner assemblies 3–8 Replace button assemblies 3–4 Lubricate cores 3–10 Align chassis and trim 3–11 Troubleshoot common problems 3–12 6K Series Service Manual 3–1...

  • Page 34: Replacing Parts

    2. Insert the control key into the core and rotate the key 15 degrees to the right. 3. Using the control key, insert the core and throw member into the knob. Rotate the control key 15 degrees to the left and remove the key. 3–2 6K Series Service Manual...

  • Page 35: Replacing The Knob

    2. Slide the knob onto the sleeve and firmly push on the knob until it is seated. 3. Turn the knobs to check that they operate smoothly. Long slot in the sleeve Lugs Inside of door Figure 3.3 Reinstalling the non-keyed knob 6K Series Service Manual 3–3...

  • Page 36: Replacing The Button Assembly

    1. Remove the knob (page 3–3). 2. Insert a flat blade screwdriver behind the plastic button retainer and pry the button assembly from the locking bar. Insert screwdriver here. Inside of door Figure 3.5 Removing the button assembly 3–4 6K Series Service Manual...

  • Page 37: Reinstalling The Outside Button Assembly

    2. Firmly press the button assembly onto the locking bar until it is seated. 3. Reinstall the knob (page 3–3). Top slot in the sleeve Button tab Locking bar Inside of door Figure 3.7 Reinstalling the inside button assembly 6K Series Service Manual 3–5...

  • Page 38: Replacing The Bearing

    1. Position the bearing so that the cutouts face the trim ring. Slide the bearing onto the sleeve and snap it into place underneath the trim ring. 2. Reinstall the knob (page 3–3). Slide bearing to here. Bearing Trim ring Inside of door Figure 3.9 Reinstalling the bearing 3–6 6K Series Service Manual...

  • Page 39: Replacing The Inside Rose And Rose Liner

    3. Tighten the rose liner onto the door with the through-bolts. 4. Align the slot in the rose with the tab on the rose liner and firmly press the rose until it is flush with the door. 6K Series Service Manual 3–7...

  • Page 40: Replacing The Outside Rose And Liner Assembly

    3. Remove the rose and liner assembly from the sleeve. Threading on the sleeve Rose and liner assembly Outside of door Figure 3.12 Removing the outside rose and liner assembly 3–8 6K Series Service Manual...

  • Page 41: Replacing The Lock Chassis Assembly

    (page 3–3) ■ inside rose and rose liner (page 3–7) ■ outside rose and liner assembly (page 3–8). ■ 2. From the outside of the door, slide the lock chassis out of the door. 6K Series Service Manual 3–9...

  • Page 42: Lubricating The Core

    OR With the core inverted, spray graphite into the keyhole. Insert the key into the keyhole and remove it; repeat several times, allowing the graphite to penetrate the barrels. 3–10 6K Series Service Manual...

  • Page 43: Aligning The Chassis And Trim

    4. Test the knob operation to make sure that the latch tailpiece does not bind with the chassis retractor. 5. Reinstall the following components: inside rose and rose liner (page 3–7) ■ ■ inside knob (page 3–3). 6K Series Service Manual 3–11...

  • Page 44: Troubleshooting

    Replace the button assembly are damaged. (page 3–4). Latch doesn’t retract. a. Latch tailpiece is broken. a. Replace the latch assembly. b. Latch tailpiece didn’t engage the b. Reinstall the lock chassis retractor correctly during (page 3–10). installation. 3–12 6K Series Service Manual...

  • Page 45: Installation Instructions

    NSTALLATION NSTRUCTIONS The following pages contain the Installation Instructions for 6K Cylindrical Locks. 6K Series Service Manual A–1...
  • Page 46 Installation Instructions A–2 6K Series Service Manual...
  • Page 47 Note: The suggested height from floor to centerline of the lock is ″ 40 5/16 . If steel frames are used, the latch centerline must be in line with the center of the strike preparation. BEST ACCESS SYSTEMS T56061/Rev A 1797989 ER-7991-19 May 2003 Indianapolis, Indiana...
  • Page 48 Figure 7 — Installing the rose over the liner 1 Separate the rose and liner (gently pry apart Note: When BEST 6K locks are properly at the tab slot). installed, the figure-8 hole must be in the T56061/Rev A 1797989 ER-7991-19 May 2003 BEST ACCESS SYSTEMS Indianapolis, Indiana...

  • Page 49: Index

    LL chassis and trim 2–5 lubricating 3–10 for N chassis and trim 2–4 reinstalling 3–2 for P chassis and trim 2–4 removing from a knob 3–2 for R chassis and trim 2–3 for Y chassis and trim 2–4 6K Series Service Manual...
  • Page 50 2–4 core 3–2 part numbers and drawings for inside button assembly 3–5 2–15 inside rose and rose liner 3–7 Y chassis assembly 2–15 keyed knob 3–4 Y function rose assembly 2–15 lock chassis assembly 3–10 6K Series Service Manual...
