Invertek SUNSTAR SERIES Installation And Operation Manual page 12

D C Load
or
Solar Array

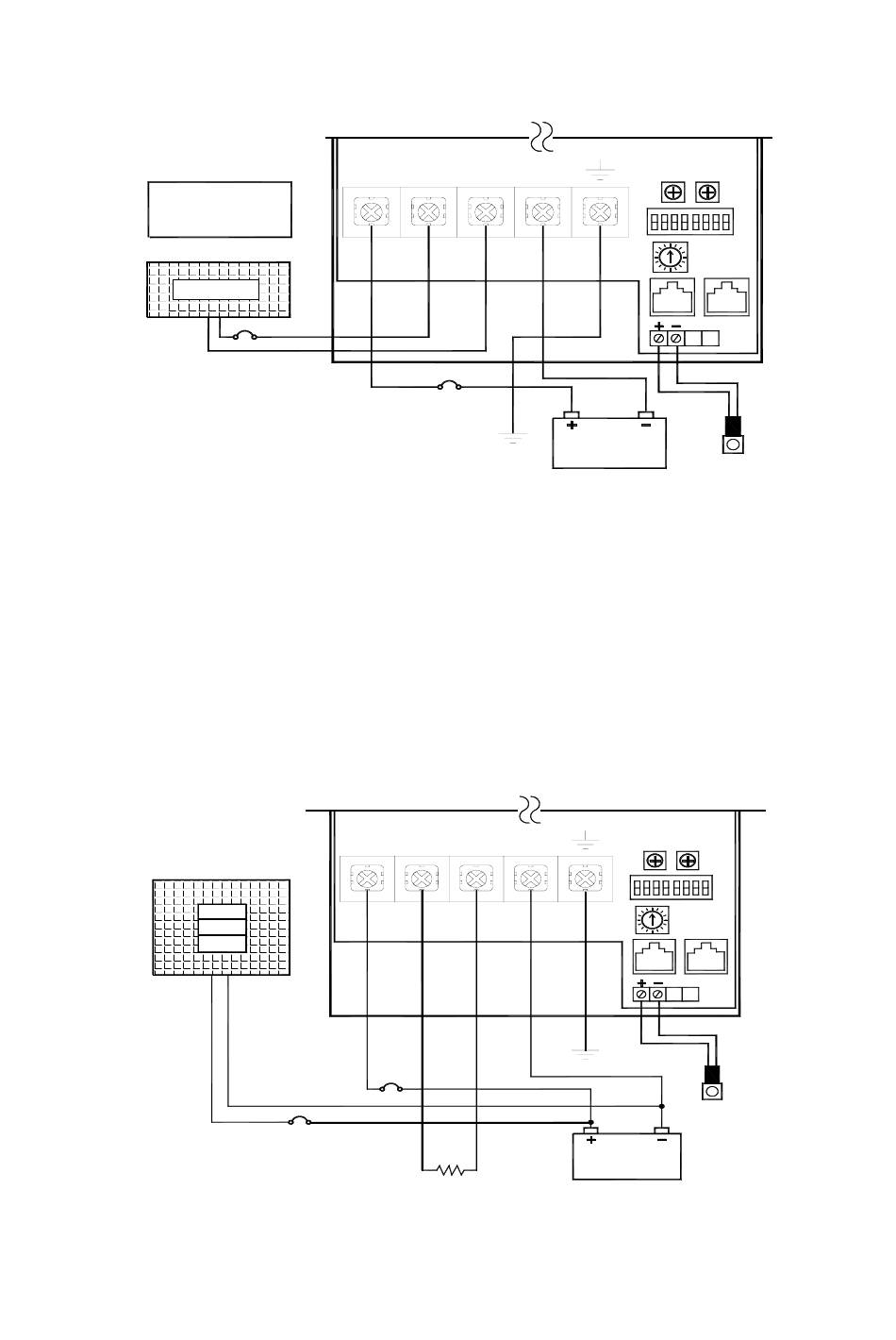

Installation wiring for solar charging or DC load control
Solar charging or DC load control:
Step 1: Open the access cover
Step 2: Mount the SunStar using the enclosed template.
Step 3: Adjust the 8 switches in the DIP switch. Each switch must be in the correct position.
Step 4: Attach the BTS if battery charging will be temperature compensated (not for load
control).
Step 5: Connect the battery power wires to the SunStar. Then connect the solar array wires
(or DC load wires).
Step 6: Close the cover.
※ Step 4 is optional.
H ydro
W ind
S olar
PV+/
BAT+
LOA D+
P V + /
B A T +
L O A D +
D IV E R S IO N
L O A D
Installation wiring for DC diversion charge control
GND G ND
BATTERY
Ground
G N D G N D
G round
B A T T E R Y
2-3
BTS
B T S
