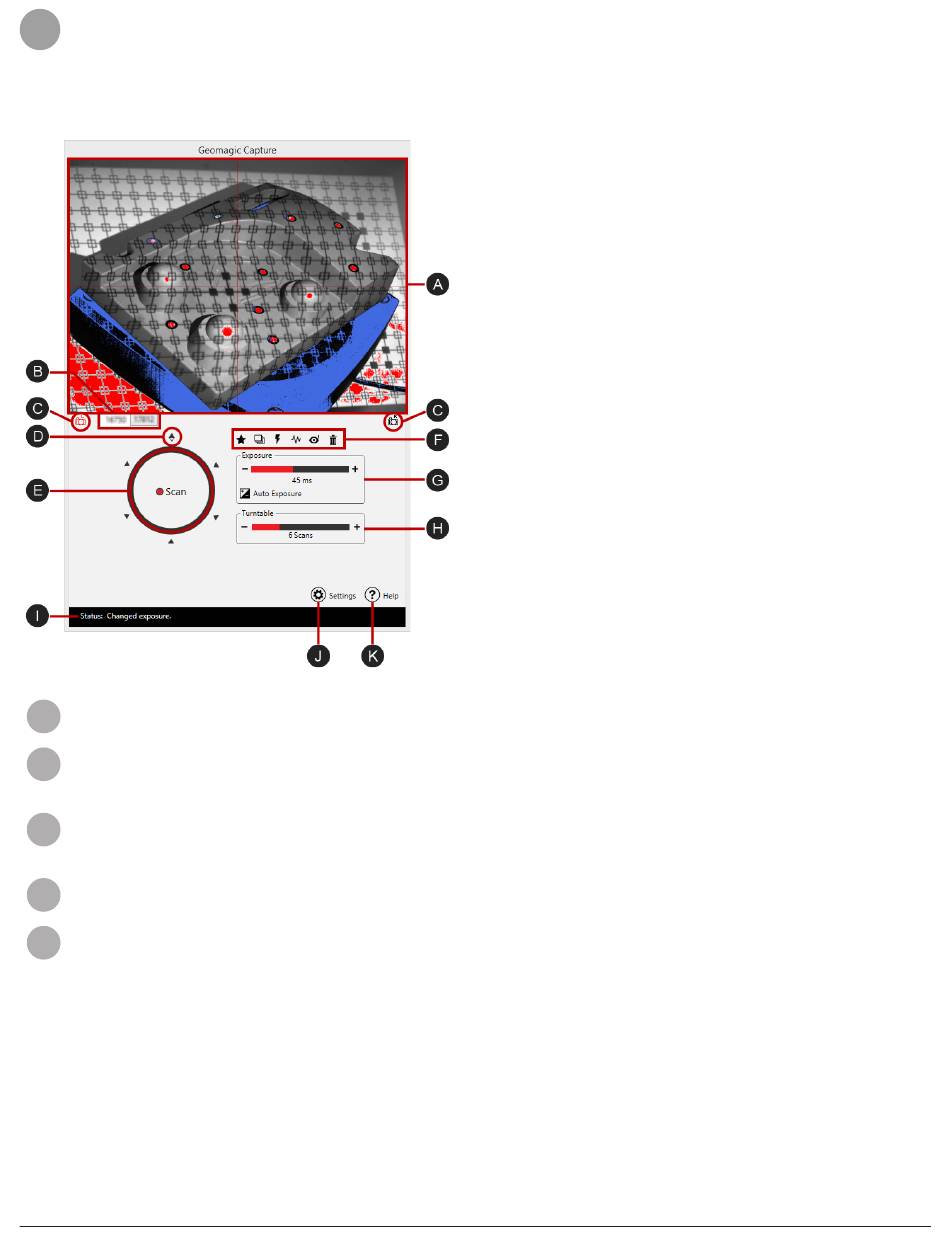

MENU OVERVIEW

SCAN

Live View
A
Displays current camera view. This view can be changed by Scanner Tabs or Camera View Switch.
Scanner Tab
B
Allows users to switch each scanner's camera view. If multiple scanners are connected to the Geomagic Capture, those tabs
will be displayed at the bottom of the Live View.
Camera View Switch
C
Allows users to switch between the side of camera view. It is useful when users check the right side or the left side of cameras
in each connected scanner before scanning the part.
Starting Position of Rotational Scanning
D
Indicates the starting point of rotational scanning (from 0 to 360 rotational degrees).
Scanning Button
E
Starts the scanning. This button is available after the Geomagic Capture Series 3D scanner is connected to the application.
When a turntable is connected and while the number of scans are being adjusted in the Turntable option, the small triangles
will be displayed around the Scan button according to the specified number of divisions. When the scanning is started, a red (or
blue) rounded line will be dynamically displayed around the Scan button, and indicates that where on a part a scanner is facing
in 360 rotational degrees as well as how many times a scan was performed.
