SportsPlay Equipment 581-620 Manual

PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY.
must be installed in accordance with these instructions.
against Bill of Lading and Parts list.
reported to your distributor within 10 days of receipt of your order.
properly installed and maintained, equipment will give many years of Safe,
Trouble-Free use.
must be tightened and broken parts must be replaced as they can possibly
create dangerous situations leading to unnecessary accidents.
Surfacing should be used under all playground equipment.
publications, available at no charge, from the Consumer Product Safety
Commission, include "A Handbook for Public Playground Safety".
receive your free copy by calling 1-301-504-7908.
PACKING LIST
2 CTN
3 PIPE 1 343-210A
10 PIPE 1 583-602A
2 CTN
SportsPlay Equipment, Inc., 5642 Natural Bridge, St. Louis, MO 63120 (314) 389-4140

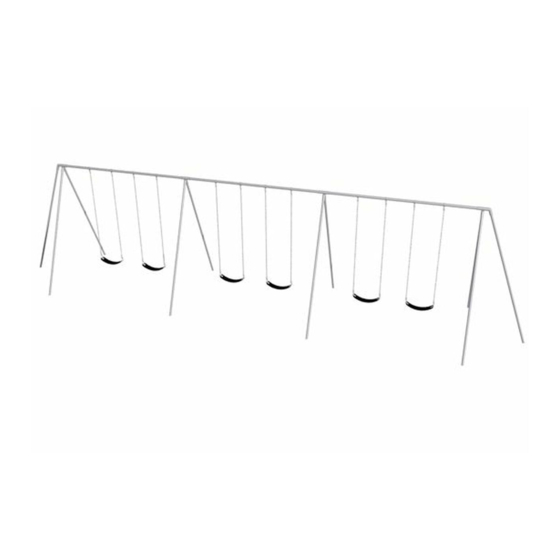

581-620 10' Primary Tripod 6 Seat Swing
Periodically check for loose or broken parts.
Hardware Bag
2 3/8" OD x 11"
1 7/8" OD x 13'
13 PIPE
www.sportsplayinc.com
IMPORTANT
Any missing or broken parts must be
4 583-518A
2 583-519A
12 585-520
12 317-140
6 585-955
24 585-901
18 196-802
1 416-400
1 805-532
1 805-534
1
15 TOTAL PCS
Rev. 01/25/2005
All equipment
Check your shipment
Loose bolts
Resilient
Appropriate
You can
HARDWARE BAG
Center Fitting
Swing End Fitting
2 3/8" Swing Hanger
4/0 Chain x 7'6" long
Cut Proof Belt Seat
S-Hook
½" x ½" Socket Set Screw
¼" Socket Key
Warning Label
SportsPlay Label
Maintenance Checklist
WEIGHT 415# CLASS 70
1
Page
When
