SportsPlay Equipment GEO-DOME 301-133 Quick Start Manual

PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY.
instruction sheet in your files.
information.
instructions.
equipment properly.
cause serious injury.
replacement of damaged parts is necessary for safe operation of equipment.
Appropriate publications, available at no charge, from the Consumer Product
Safety Commission, include "A Handbook for Public Playground Safety".
receive your free copy by calling 1-301-504-7908.
Dome footprint is
8' wide
See page 4 for installation key
1 CTN 1
5
2 CTN 15
1 CTN 20
1 CTN 15
SportsPlay Equipment, Inc., 8505 Delmar Blvd Ste G, St. Louis, MO 63124

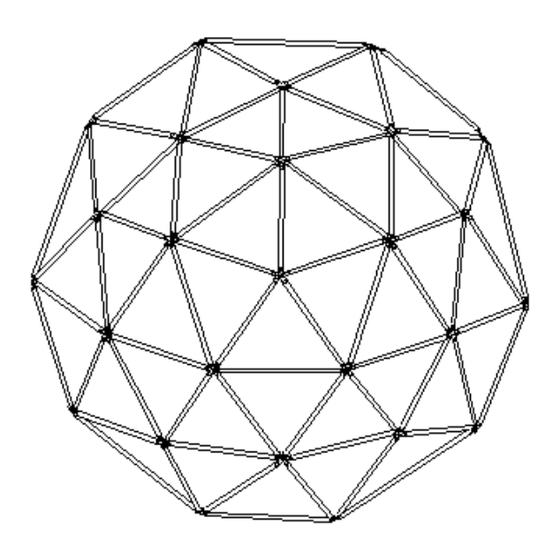

301-133 GEO-DOME (Perm)
All equipment must be installed in accordance with these
It is important to use and maintain all public playground
Playground equipment, which is improperly maintained, can
Periodical inspections, maintenance, repair and/or

PACKING LIST

Hardware Bag
503-647 Dome Anchors
Braces (Blue)
303-224
2'-5 1/2"
303-221
Braces (Red)
2'-8 1/2"
Braces (White)
303-222
2'-9"
5 CTN 5 TOTAL PCS
(314) 389-4140 www.sportsplayinc.com

IMPORTANT

It contains important replacement parts
26 116-545
62 316-501
31 216-501
26 326-501
1 416-350
1 805-532
1 805-534
30 905-847
1 Maintenance Checklist
WT 130#
Rev 04/19/10
Rev 03/23/22
Please retain this
You can
Dome use/fall zone is a
20' diameter circle
HARDWARE BAG
5/16" x 2½" Button HD Bolts
5/16" Flat Washers
5/16" Hex Nuts
5/16" Lock Washers
Socket Key
Warning Label
SportsPlay Label
Bolt Caps
CLASS 70
1
Page
