SportsPlay Equipment See Saw 12 Seat Manual

PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY.
this instruction sheet in your files.
parts information.
instructions.
equipment properly.
can cause serious injury.
replacement of damaged parts is necessary for safe operation of equipment.
Appropriate publications, available at no charge, from the consumer product
safety commission, include "A Handbook for Public Playground safety".
can receive your free copy by calling 1-301-504-7908.
1 CTN 1
2 343-501
2 503-501
6 803-522
10 803-523
12 803-524
1 CTN 12 803-925
1 BDL 4 803-601
12 PIPE 1 803-226H
1 PIPE 1 803-203
2 CTN
SportsPlay Equipment, Inc., 5642 Natural Bridge, St. Louis, MO 63120 (314) 389-4140

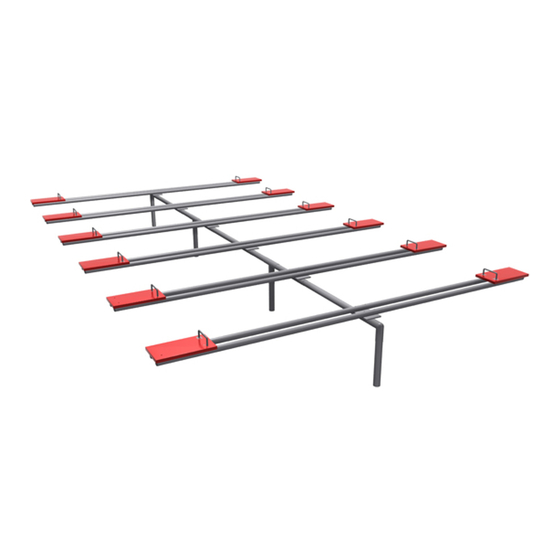

801-612-H See Saw 12 Seat
All equipment must be installed in accordance with these
It is important to use and maintain all public playground
Playground equipment, which is improperly maintained,
Periodical inspections, maintenance, repair and/or

PACKING LIST

Hardware Bag
T Fitting
Elbow
Fulcrum
Sleeve
Handle
Seat Boards
Pipe Legs
Pipe
Pipe
1 BDL 13 PIPE
www.sportsplayinc.com
IMPORTANT
It contains important replacement
24 105-017
22 196-802
48 116-550
24 116-543
72 326-501
72 216-512
1 416-400
4 416-350
3 516-350
2 805-532
2 805-534
1
16 TOTAL PCS
Page
Rev. 09/10/2010
Please retain
You
HARDWARE BAG
2 3/8" Pipe Plug
1/2" x 1/2" Socket Set Screw
5/16" x 3" B.H. Bolt
5/16" x 2 1/4" B.H. Bolt
5/16" Lock Washer
5/16" x 1" B.H. Nut
1/4" Socket Key
3/16" Socket Key
Permabond Threadlocker Tube
Warning Label
SportsPlay Label
Maintenance Checklist
600# Weight Class 70
1
