PLEASE RETAIN THIS INSTRUCTION SHEET IN YOUR FILES.
INFORMATION.
ALL EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THESE INSTRUCTIONS.
IMPORTANT TO USE AND MAINTAIN ALL PUBLIC PLAYGROUND EQUIPMENT PROPERLY.
WHICH IS IMPROPERLY MAINTAINED, CAN CAUSE SERIOUS INJURY.
REPAIR AND/OR REPLACEMENT OF DAMAGED PARTS IS NECESSARY FOR SAFE OPERATION OF EQUIPMENT AND SAFETY
OF USERS.
RESILIENT SURFACING SHOULD BE USED UNDER ALL PLAYGROUND EQUIPMENT.
PUBLICATIONS, AVAILABLE AT NO CHARGE, FROM THE CONSUMER PRODUCT SAFETY COMMISSION, INCLUDE "A
HANDBOOK FOR PUBLIC PLAYGROUND SAFETY."
PACKING LIST
1 CTN
1
Hardware
1 CTN
1
303-136
1 WF
1
303-305
1 BDL
2
303-281
1 WF
1
303-307
1 WF
1
303-328
1 BDL
1
303-206
1
303-207
1 BDL
1
303-210
1
303-144
2 CTN
Sportsplay Equipment, Inc
301-135 NET CLIMBER (Perm)
YOU CAN RECEIVE YOUR FREE COPY BY CALLING 1-301-504-0708.
Bag
Net
Top Ladder Assy
End Brace
Ladder Assy.
Ladder Assy.
Center Cross Bar
Bottom Net Rail
Upright
Upright
3 BDL
3 WF
., 5642 Natural Bridge, St. Louis, MO 63120 (314) 389-4140
* IMPORTANT *
IT CONTAINS IMPORTANT REPLACEMENT PARTS
PERIODICAL INSPECTIONS, MAINTENANCE,
10
- 105-015
14 PR
- 415-515
38
- 116-535
38
- 326-501
38
- 216-512
2
- 416-350
2
- 805-532
2
- 805-534
1
- Maintenance Checklist
8 TOTAL PCS
Rev 11/17/09
301-135.I.CC.1109.2
IT IS
PLAYGROUND EQUIPMENT,
APPROPRIATE
HARDWARE BAG
1 5/8" Pipe Plug
1 5/8" T-Clamp
5/16" x 1½" Button Hd Bolt
5/16" Lock Washer
5/16" Button Hd Nut
3/16" Socket Key
Warning Label
SportsPlay Label
WT 160#
CLASS 70
1
Page
Advertisement
Table of Contents
Related Manuals for SportsPlay Equipment 301-135
Summary of Contents for SportsPlay Equipment 301-135

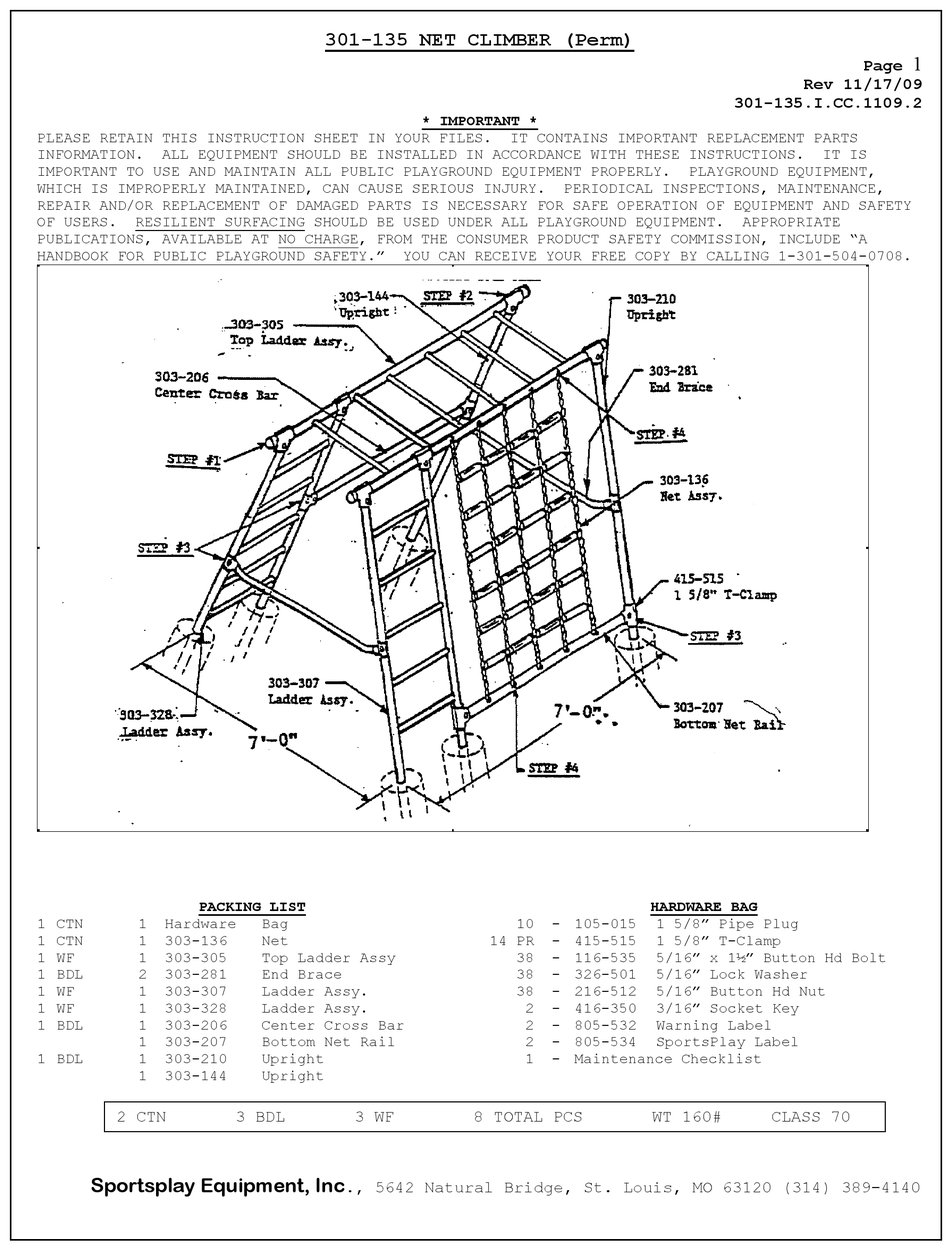

- Page 1 301-135 NET CLIMBER (Perm) Page Rev 11/17/09 301-135.I.CC.1109.2 * IMPORTANT * PLEASE RETAIN THIS INSTRUCTION SHEET IN YOUR FILES. IT CONTAINS IMPORTANT REPLACEMENT PARTS INFORMATION. ALL EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THESE INSTRUCTIONS. IT IS IMPORTANT TO USE AND MAINTAIN ALL PUBLIC PLAYGROUND EQUIPMENT PROPERLY.
- Page 2 301-135 NET CLIMBER (Perm) Page Rev 11/17/09 301-135.I.CC.1109.2 GENERAL USE/FALL ZONE & FOOTING RECOMMENDATIONS STATIONARY & PORTABLE EQUIPMENT – USE/FALL ZONES SHOULD EXTEND A MINIMUM OF 6 FEET IN ALL DIRECTIONS FROM THE PERIMETER OF THE EQUIPMENT GROUND SPACE. THIS AREA SHOULD BE COVERED WITH THE REQUIRED AMOUNT OF RESILIENT SAFETY SURFACING MATERIAL.
- Page 3 301-135 NET CLIMBER (Perm) Page Rev 11/17/09 301-135.I.CC.1109.2 GENERAL ASSEMBLY INSTRUCTIONS: Check all the parts and hardware with the packing list to be sure you have received everything needed to assemble this product. CONTACT YOUR LOCAL DISTRIBUTOR WITH NOTIFICATION OF ANY MISSING OR DAMAGED PARTS.
- Page 4 301-135 NET CLIMBER (Perm) Page Rev 11/17/09 301-135.I.CC.1109.2 Note: use of bolts through both clamp holes is recommended but not mandatory 415-515 1 5/8” T-clamp Sportsplay Equipment, Inc ., 5642 Natural Bridge, St. Louis, MO 63120 (314) 389-4140...
