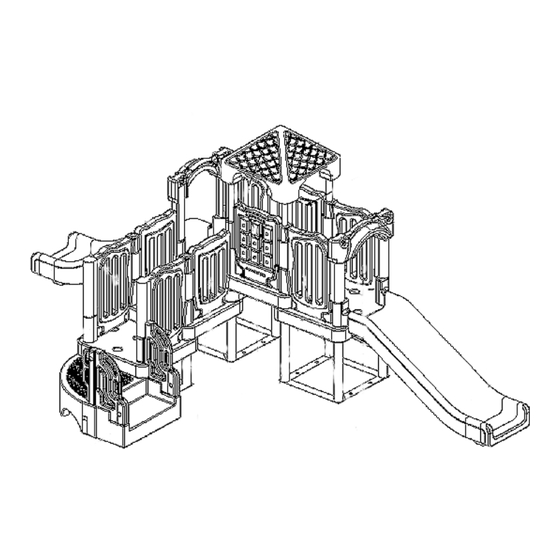

SportsPlay Equipment TOT TOWN FUN CENTER 4 Assembly Instructions

TOT TOWN
FUN CENTER
ASSEMBLY INSTRUCTIONS
IMPORTANT
PLEASE RETAIN THIS INSTRUCTION SHEET IN YOUR FILES. IT CONTAINS IMPORTANT REPLACEMENT PARTS INFORMATION. ALL
EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THESE INSTRUCTIONS.
IT IS IMPORTANT TO USE AND MAINTAIN ALL PLAY EQUIPMENT PROPERLY. IMPROPERLY MAINTAINED PLAY EQUIPMENT CAN CAUSE
SERIOUS INJURY. PERIODIC INSPECTIONS, MAINTENANCE, REPAIR AND/OR REPLACEMENT OF DAMAGED PARTS IS NECESSARY FOR
SAFE OPERATION OF EQUIPMENT AND SAFETY OF USERS.
RESILIANT SURFACING SHOULD BE USED UNDER ALL PLAYGROUND EQUIPMENT.
THE SUGGESTED USE AREA IS TO BE COVERED BY THESE MATERIALS OUTLINED ON THE PLAN VIEW. NO OTHER PIECE OF
EQUIPMENT OR ITS USE AREA MAY ENCROACH ON THIS USE AREA
FOR MORE INFORMATION ON PLAYGROUND SAFETY, CONTACT THE CONSUMER PRODUCT SAFETY COMMISSION AT 800-638-2772 OR
www.cpsc.gov

PACKING LIST

QTY DESCRIPTION
3 MAIN FRAME
5 PLATFORM
1 TRANSFER STATION
1 EXTENSION PIECE
2 SLIDE
2 SLIDE GUARD
5 PANEL 1
1 PANEL 2
1 PANEL 3
1 PANEL 4
1 GAME PANEL
1 ROOF
1 HARDWARE BAG
TOTAL: 27 PIECES ON 3 PALLETS
SportsPlay Equipment, Inc. 5642 Natural Bridge, St. Louis, MO 63120
4
902-816
122.25"
WEIGHT: 734 LBS
tel. 314-389-4140, fax. 314-727-8180 www.sportsplayinc.com
REVISED: 3-06-03
PAGE 1 of 4
233"
CLASS 70
