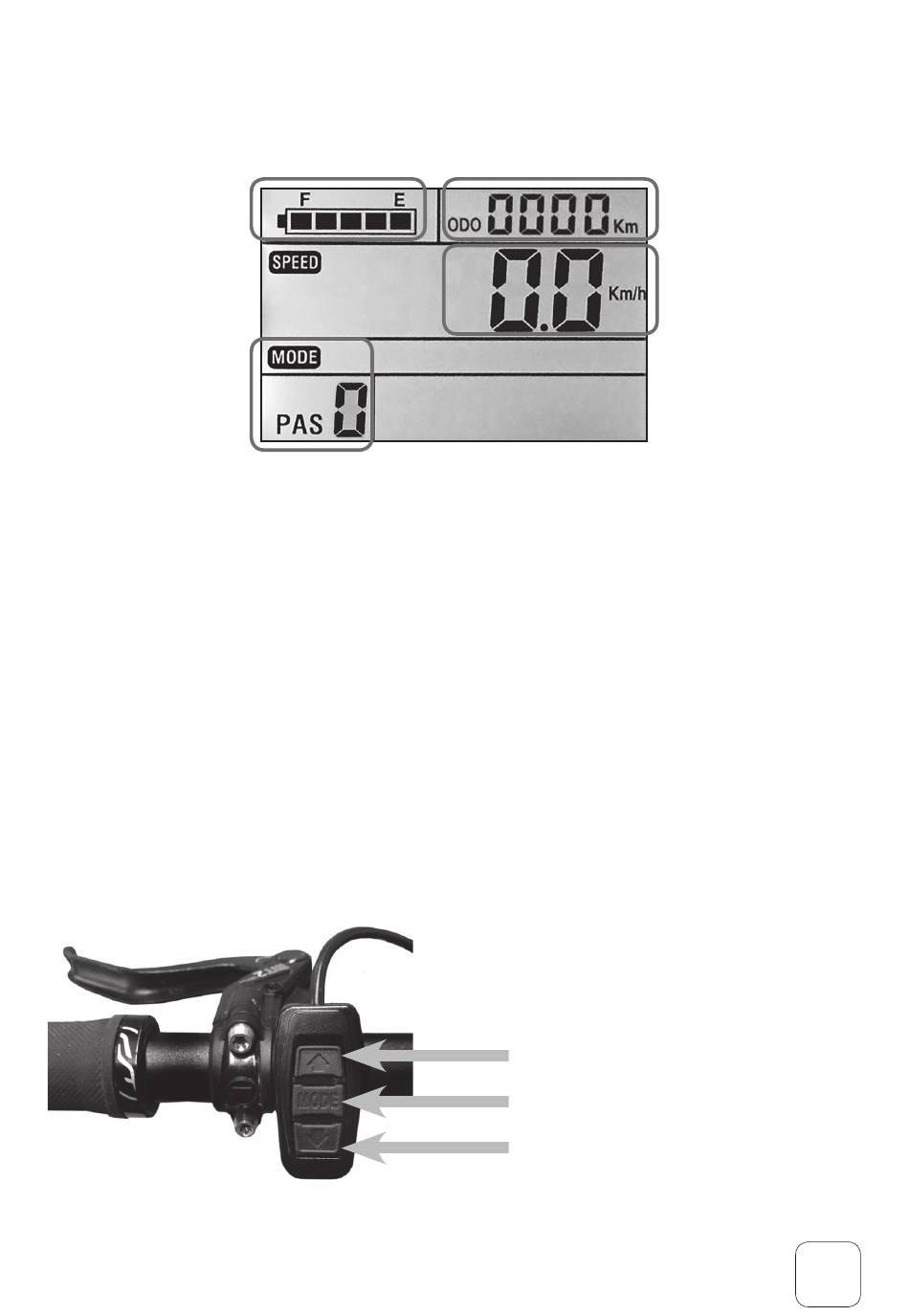

DISPLAY

Here you can see the information that can be shown on the display. The display is
fi xed in place and is not removable.
Battery
Capacity
Assist
Level
YOUR M1 BIKE'S SENSORS
Your M1- product is equipped with high-quality sensors.
The switch sensor monitors the action of the switch and ensures the motor is cut off
immediately during the switching process in order to minimize wear on the switch
components. Additionally both brake levers are equipped with sensors, which ensu-
re that the motor is cut off immediately during the braking process. A torque sensor
in the motor enclosure measures the force you apply on the pedals and automatical-
ly computes the amount of motor power to be injected for the selected drive level
(see drive level table). A speed sensor measures the actual speed and outputs this on
the display.

CONTROLS

The control keypad on the handlebar:
e-bike calssifi cation | safety notices | bike functions | guarantee statement
Speedometer
Fuctions
Velocity
Monitor
Key 1: Up arrow key
Key 2: MODE key
Key: 3 Down arrow key
