Push/Start Assist; Cycling Without Batteriy; Removing The Seat Support From The S-Pedelec - M1-Sporttechnik Spitzing Pedelec Operating Manual

PUSH/START ASSIST

Do not press the push/start assist inadvertently but only if you actively
want to start. If you inadvertently activate the push/start assist, this can
lead to a fall.
CYCLING WITHOUT BATTERY
Riding the bike is also possible without the battery. In this case you will have no
speedometer display. Also if you have completely emptied the battery during a trip
the display will not show anything.

REMOVING THE SEAT SUPPORT FROM THE S-PEDELEC

To remove the seat post of your S-Pedelec, you have to disconnect the connector of
the cable to the rear light (next the suspender). To do this, gently press the connec-
tor with your fi ngernail at the spot marked with an arrow, and pull it out.
12

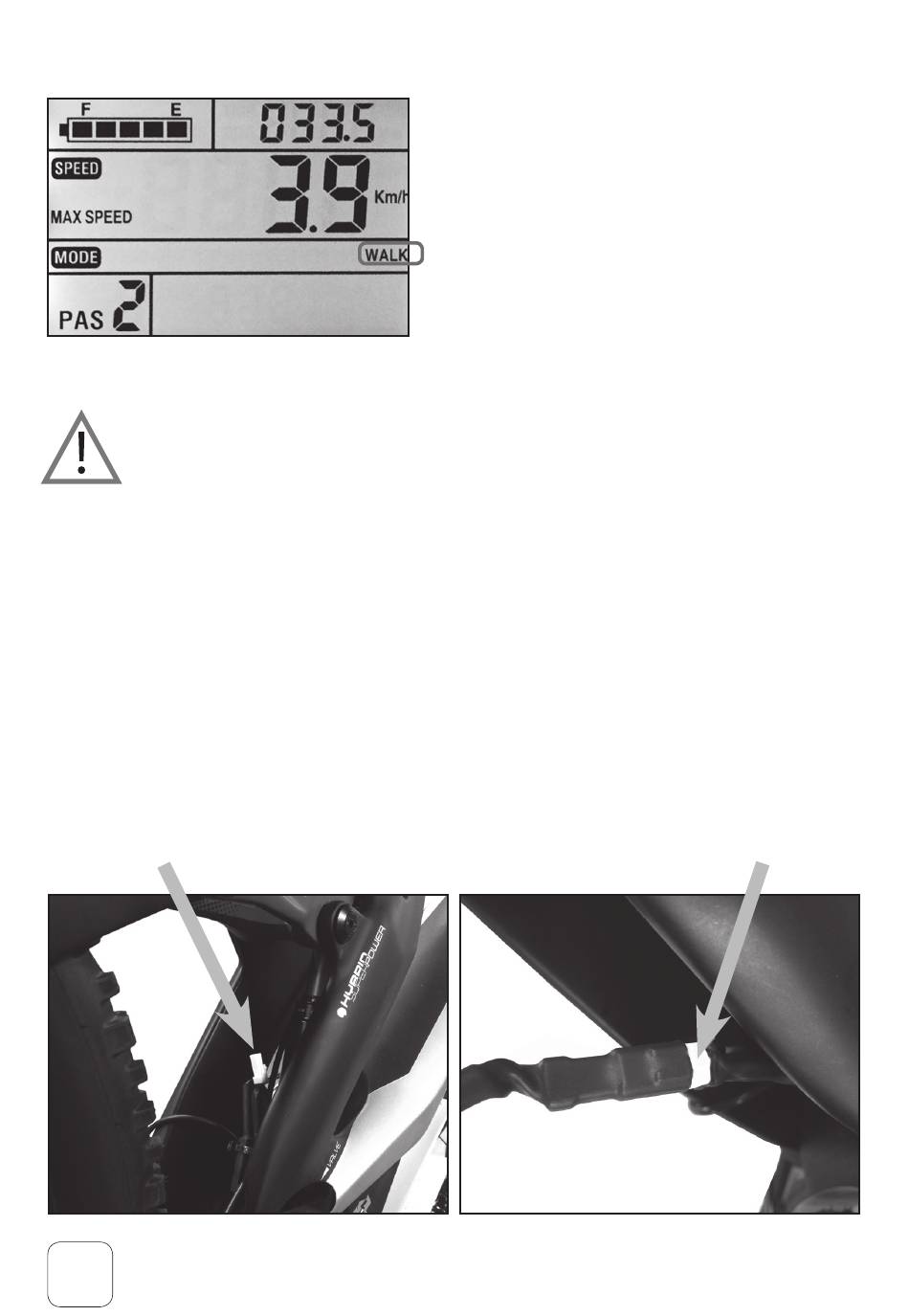

The system has a push/start assist that ac-
celerates the bike up to 6 km/h without pe-
daling. The push/start assist is activated by
holding down Key 3 (arrow down key) and at
least drive level 1 is selected (Figure shows
drive level 2). In drive level 0 the push/start
assist cannot be activated. Push/start assist
stops only when you release key 3 again. The
push/start assist also stops immediately if
you put on the brake.
e-bike calssifi cation | safety notices | bike functions | guarantee statement
