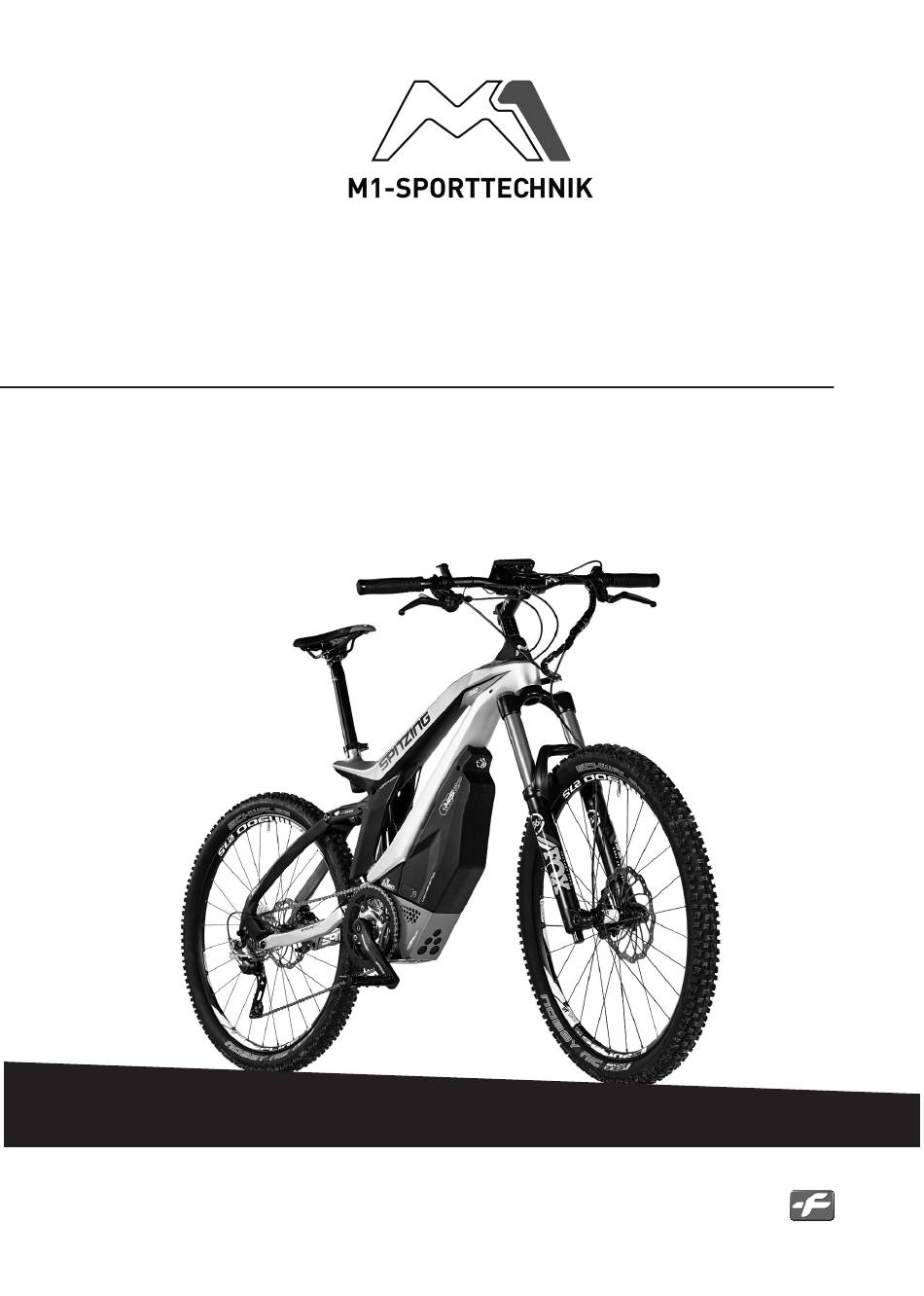

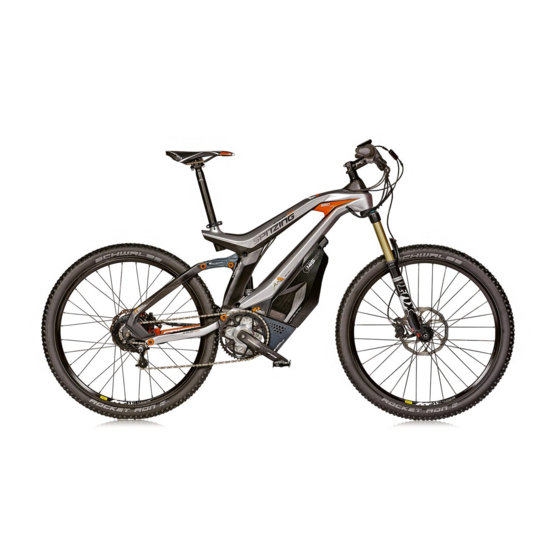

- Page 1 Drive system operating manual M1 mid-drive bikes with TQ motor M1 - Sporttechnik GmbH & Co. KG • Am Weiglfeld 15 • D-83629 Weyarn • www.info@m1-sporttechnik.de Powered by Fritzmeier.
- Page 2 Edition www.m1-sporttechnik.de...
-
Page 3: Table Of Contents
Index Foreword E-bike classifications Pedelec ....... . . 5 S-Pedelec ....... 6 R-Pedelec . -
Page 4: Foreword
Dear Client, Congratulations on purchasing a high quality electro bike from M1-Sporttechnik. You have chosen the perfect combination of a reliable frame, high quality compo- nents and high performance drive technology. To ensure the electronic drive components always stay operational, it is essential to perform regular care and maintenance. -
Page 5: E-Bike Classifications
E-BIKE CLASSIFICATIONS Because in some countries the type of drive assistance is important for driving licen- ses, distinctions are made between the following classes: Pedelec - 25 km/h Electro bikes with pedal assist up to 25 km/h S-Pedelec (Speed Pedelec) - 45 km/h Electro bikes with pedal assist up to 45 km/h R-Pedelec (Race-Pedelec) Electro bikes with pedal assist, which does not switch off... -
Page 6: R-Pedelec
THE S-PEDELEC An electro bike with limited pedal assist up to 45 km/h. In the S-Pedelec also, the motor only has an eff ect when you apply a certain force on the crank lever. So in S-Pedelec too, the motor only assists you when you pedal. In Germany, a bike helmet must be worn on electro bikes with pedal assist up to 45 k/h, and a moped driver’s license (at least) is required. -
Page 7: Safety Notices
SAFETY NOTICES Highway Traffi c Act The general terms of the Highway Traffi c Act apply to the use of electro bikes on the public highway. The following regulations also apply to the use of your M1-Pedelec or S-Pedelec. Please respect the current restrictions in individual townships and states relating to the use of forest paths or trails, as many regions have specifi c rules. -
Page 8: Bike Functions
BIKE FUNCTIONS PUSH-BUTTON FUNCTIONS Switching-on: To activate the system, press 1x briefl y on the button to the right of the battery enclosure. 2 small green LEDs now light up next to the button (see fi gu- re). If only one LED lights up, check that the battery is correctly inserted by pus- hing it out and in again to the bracket on the frame. -
Page 9: Display
DISPLAY Here you can see the information that can be shown on the display. The display is fi xed in place and is not removable. Battery Speedometer Capacity Fuctions Velocity Monitor Assist Level YOUR M1 BIKE’S SENSORS Your M1- product is equipped with high-quality sensors. The switch sensor monitors the action of the switch and ensures the motor is cut off... - Page 10 By pressing briefl y on Key 1, you activate assist level 1. Each additional key-press switches to level 2, level 3 level 5 and level 5. By pressing Key 3 you switch in the opposite direction. Key 1 Key 3 The 6 drive levels and 5 assist modes: Drive level Name...
- Page 11 Using Key 2 (Mode Key) you scroll through the tachometer functions. The fi ve func- tions available are as follows: total kilometers trip kilometers remaining range Display: Display: TRIP Display: DST. TO GO average speed maximum speed AVG SPEED MAX SPEED Display: Display: By holding down the Mode Key you can reset the current “Maximum Speed”, ”...
-
Page 12: Push/Start Assist
PUSH/START ASSIST The system has a push/start assist that ac- celerates the bike up to 6 km/h without pe- daling. The push/start assist is activated by holding down Key 3 (arrow down key) and at least drive level 1 is selected (Figure shows drive level 2). -
Page 13: Loading The Battery
To reassemble it, take care to thread the connector and cable through the seat pillar. The connector locks into place when plugged in and the rear light, brake lights and license plate light are active again when the system is switched on. LOADING THE BATTERY An charger is supplied with the electro bike. - Page 14 The system can be charged either when it is switched on when it is off , and while the battery is either installed or uninstalled. The charger has a status LED which blinks orange while charging is in progress and displays green when charging has fi nished.
-
Page 15: Battery Storage
The battery reaches its maximum capacity after about 5 charge and discharge cycles, and overall battery life will be maximized if you charge it in an ambient temperature of +10°C and +30°C. On cold days especially, do not charge your battery in the open air. When you take the accumulator out of its holder and leave your M1 bike outside, you should protect the connectors from rain, moisture, humidity and dirt, with a plastic bag for example. - Page 16 Charge your battery exclusively with the charge supplied with it. Do not use another charger from another manufacturer, even if the connecter fi ts in your battery. The battery can heat up, catch fi re or even explode! Do not charge any other device with the charger supplied with the battery, only charge the M1 product that you received with this charger.
-
Page 17: Chassis
M1-SPORTTECHNIK GMBH & CO. KG manufacturer’s guarantee a) 10-year M1-Sporttechnik guarantee for the frame M1-Sporttechnik guarantees frames labeled with the M1 logo for a total of 10 years against defects in materials and workmanship. This guarantee only applies to privately-owned M1 products. - Page 18 In normal case this check should be done all 500km or latest time after 6 month at M1-Sporttechnik or in an authorized bicycle workshop. e-bike calssifi cation | safety notices | bike functions | guarantee statement...
- Page 19 CRASH REPLACEMENT M1-Sporttechnik accompanies its products even in cases of damage that are not within the terms of the M1-Sporttechnik guarantee, for example due to accident or misuse. We off er an attractive exchange price for all M1 products. In such cases M1-Sporttechnik guarantees a crash replacement discount of 50% to each registered customer for a period of 10 years.
-
Page 20: Technical Data
Charge duration: approx. 3.5 h for 100 %, approx. 1 h for 80 % Charger: 110 / 240 Volt AC, 5A, built-in fan M1 - Sporttechnik GmbH & Co. KG Forststraße 2, D-85653 Großhelfendorf Tel.: +49 (0) 8020 / 9089 1170 Fax: +49 (0) 8020 / 9089 1177 www.M1-Sporttechnik.de info@M1-Sporttechnik.de...
