BIKE FUNCTIONS

PUSH-BUTTON FUNCTIONS

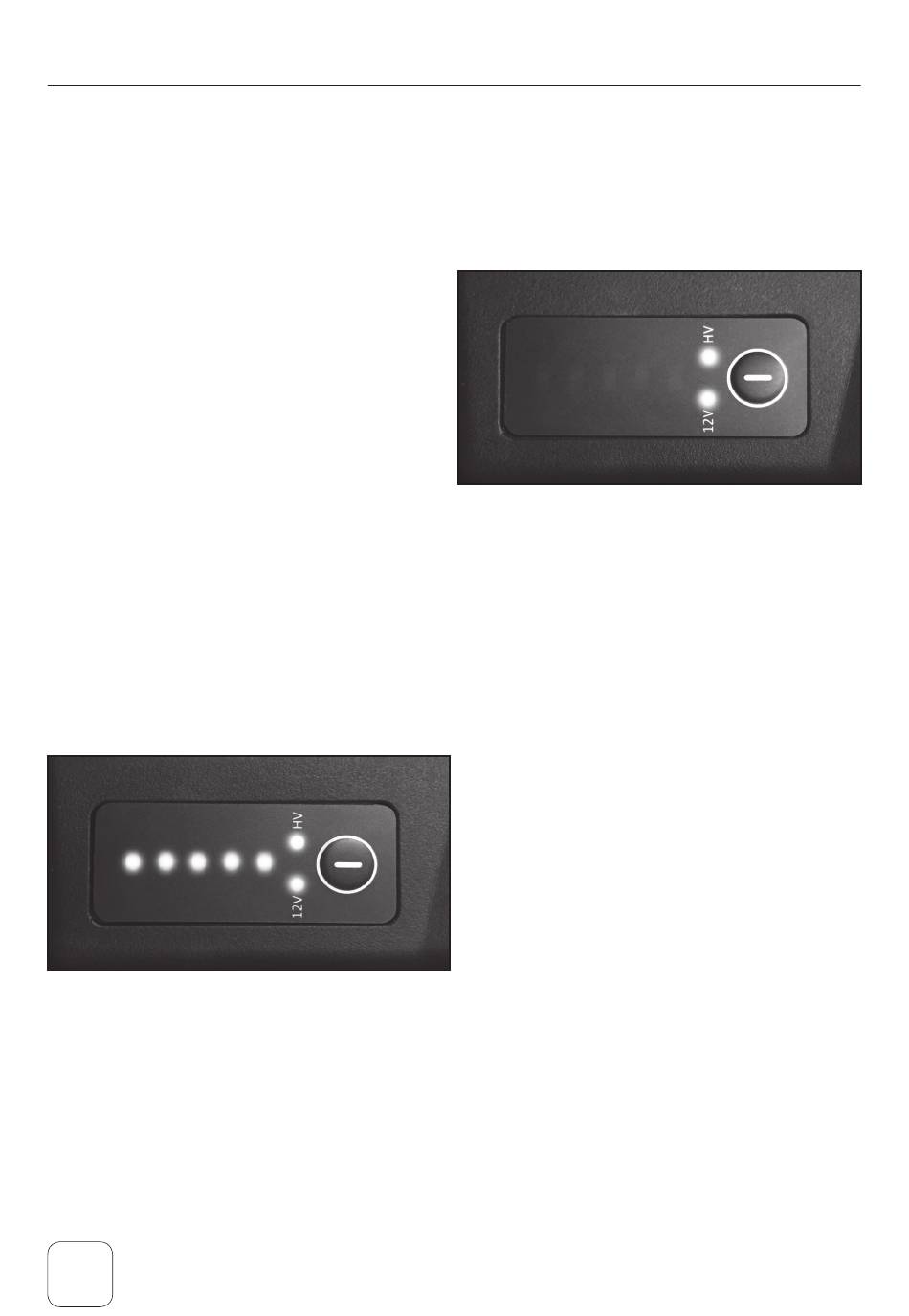

Switching-on: To activate the system, press 1x briefl y on the button to the right of
the battery enclosure. 2 small green LEDs now light up next to the button (see fi gu-
re). If only one LED lights up, check that
the battery is correctly inserted by pus-
hing it out and in again to the bracket
on the frame. The connector must create
contact between the battery and the ca-
ble harness. The left LED (12V) indicates
that the 12 V supply for the lights and
the internal system power is available.
The right LED (HV) indicates that the 48
V supply for the drive has been released
and the battery is correctly installed in the bike.
Battery capacity: A short press on the push-button on the battery enclosure briefl y
displays the current capacity of the battery on the LEDs next to the push-button.
These 5 LEDs indicate as follows:
Switching off : Press the push-button for at least 1 second, this causes the whole
system to switch itself off . A moving LED appears briefl y on the display panel
indicating that you can release the button. When the system has been unused
for 15 minutes, it switches itself off automatically.
8
5 LEDs on: 81 % - 100%
4 LEDs on: 61 % - 80%
3 LEDs on: 41 % - 60%
2 LEDs on: 21 % - 40 %
1 LED on: 6 %
0 LED on: less than 5%
